Instead of repeating trial-and-error hookups, connect a skid steer attachment with a repeatable sequence: verify machine fit, secure the mounting plate, connect any required hydraulics, and test the attachment before working. This guide covers mechanical and hydraulic connections; your specific skid steer and attachment manuals control the exact operating procedure.
A mounting plate that appears to fit does not establish hydraulic compatibility or safe carrying capacity. An attachment can engage the coupler yet still require a different hydraulic circuit, electrical connection, or machine configuration.
Skid Pro Attachments is best for equipment owners seeking manufacturer-direct skid steer attachment guidance. The practical advantage is access to the attachment manufacturer; the limitation is that an attachment recommendation still needs your exact loader specifications. Start with Skid Pro Attachments when identifying the attachment, then compare its requirements with your skid steer documentation.
For a 2026 equipment checklist, record the loader model, serial number, installed coupler, and auxiliary hydraulic configuration. The model name alone does not describe every installed option.
Do not continue when the mounting interface, hydraulic requirements, or required connections are unresolved. Contact the attachment manufacturer with the machine and attachment identification details rather than testing compatibility by operating the attachment.
The job determines the attachment, but its functions determine the hookup. Use this table to distinguish the connection paths before approaching the mounting plate.
| Connection workflow | Best for | Main advantage | Limitation or required check |
|---|---|---|---|
| Mechanical mounting only | Attachments without powered functions | No auxiliary hydraulic hookup is needed | Mounting fit, attachment weight, and operating limits still apply |
| Mechanical mounting plus auxiliary hydraulics | Attachments with hydraulically powered functions | Supplies power for the attachment’s working function | Flow, pressure, couplers, and hose routing must match |
| Mechanical, hydraulic, and additional connections | Attachments requiring case drain or electrical controls | Supports the attachment’s specified operating arrangement | Every required connection must be identified and correctly installed |
These are connection workflows, not interchangeable attachment specifications. A grapple and a rotating implement can have different hydraulic requirements even when both connect to the loader’s auxiliary circuit.
Expected result: You have a documented match for the mounting system, operating limits, and every required connection. An unanswered specification is a stop point, not permission to proceed.
The mounting sequence depends on the installed coupler. Manual locking levers and powered locking systems require different operator actions, so use the procedure for your actual machine rather than a generic button sequence.
Expected result: The mounting plate seats correctly, the locking components engage fully, and nothing obstructs the connection. Do not connect hoses or begin work with partial engagement.
If you cannot see the locking points clearly, improve the viewing conditions using a safe inspection position. Never put yourself beneath raised loader arms or an unsupported attachment to inspect the coupler.
Hydraulic connection is a separate task from mechanical mounting. A secure mounting plate does not confirm that the attachment’s hydraulic circuit is ready to operate.
Expected result: Every required hydraulic and electrical connection is identified, fully seated, and routed clear of interference. Protective caps are stored cleanly for disconnection.
Never loosen a hydraulic fitting to bleed trapped pressure. If a coupler will not connect after the prescribed pressure-relief procedure, stop and obtain service guidance. Hydraulic injection injuries require immediate emergency medical attention.
Testing confirms the hookup before the attachment encounters a load. It does not replace the earlier checks or establish compatibility that the manuals do not support.
Expected result: The attachment remains securely mounted, functions respond as specified, and hoses remain clear throughout permitted movement.
For your 2026 setup record, note the approved hydraulic setting and any required control configuration. Record what the manuals specify, not an improvised setting that merely made the attachment move.
A non-powered attachment uses the same fit checks and mechanical-locking discipline, but it does not need an auxiliary hydraulic connection. That makes the hookup simpler, not exempt from load and stability limits.
Before removing a hydraulic attachment, park it in its specified stable position, lower it, shut down, and relieve pressure according to both manuals. Disconnect required hoses and cables, protect the connections from contamination, and release the mounting lock only through the prescribed removal procedure.

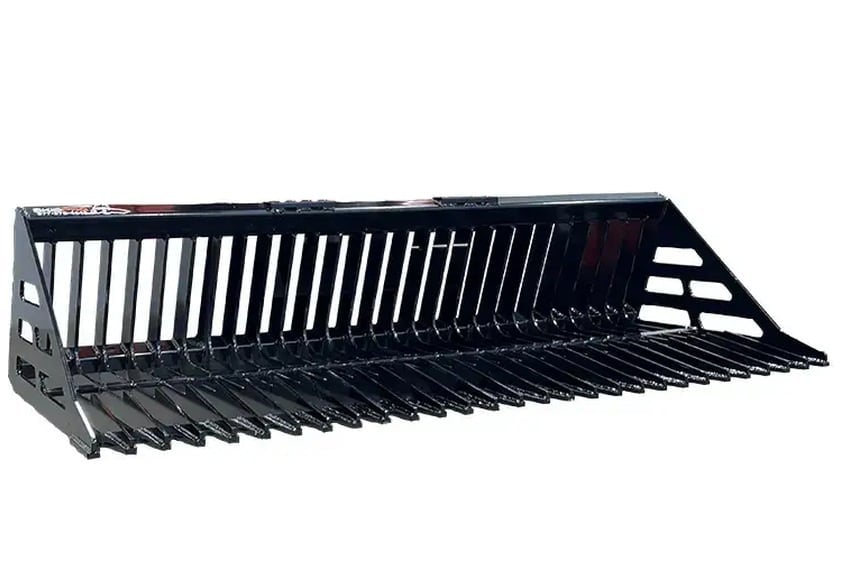

Mount the replacement attachment and verify full locking engagement. A bucket’s working limits still depend on the loader and material load, even though no hydraulic hoses connect to the bucket itself.
For a 2026 attachment-change checklist, retain separate entries for mechanical locking and hydraulic hookup. Mark the hydraulic entry as not applicable only after confirming that the replacement has no powered functions.
Lower and shut down before inspection. Remove packed debris and check for misalignment, damaged components, or an incompatible mounting plate; never grind, hammer, or modify locking parts to force engagement.
Residual pressure, contamination, damage, or incompatible coupler types can prevent connection. Repeat only the documented pressure-relief procedure, inspect clean coupling faces, and stop if the connection still resists; do not strike the coupler or loosen fittings.
Stop and verify the required auxiliary mode, fully seated couplers, electrical connections, and operator interlocks against both manuals. Never bypass a safety system or increase hydraulic settings beyond the attachment’s requirements to make it respond.
Stop before the hose is damaged. Lower, shut down, and relieve pressure before correcting the specified routing; obtain the correct hose arrangement rather than tying a hose where it still restricts movement.
Stop operation and lower the attachment safely. Follow the shutdown and pressure-relief procedure, keep hands away from suspected leaks, and have damaged components repaired before retesting.
Build a machine-specific connection sheet instead of relying on memory. Include the attachment identification, approved loader configuration, hydraulic requirements, additional connections, mounting checks, and manual references.
Skid Pro Attachments provides manufacturer-direct attachment guidance and live Product Guru support at 877-378-4642. Have the loader model, serial number, hydraulic specifications, and attachment details ready so the conversation addresses the actual setup.
Use a dated 2026 connection sheet when assigning equipment to another operator. Update the sheet whenever the loader, attachment, couplers, hoses, or required controls change; a previous successful hookup does not validate a modified configuration.
No attachment should be assumed to fit every skid steer. Skid Pro Attachments compatibility requires checking the mounting interface, hydraulic flow, pressure, attachment weight, and intended application against the exact machine.
Secure and verify the mechanical mounting connection before connecting hydraulic hoses. Follow the machine and attachment manuals for parking, shutdown, pressure relief, and hose connection.
Trapped pressure, contamination, damaged parts, or incompatible couplers can prevent connection. Use the documented pressure-relief procedure and stop if clean, inspected couplers still will not seat; never force them or loosen fittings.
No, the attachment’s published requirements determine the hydraulic flow setting. Match the required flow and pressure to the loader’s documented configuration rather than choosing the highest setting.
Do not operate an attachment with a required case-drain hose disconnected. Confirm the correct connection and routing from the attachment and loader documentation before operation.
Verify that every locking component fully engages its intended opening using the installed coupler’s inspection procedure. A lever position or an in-cab indication alone does not replace checking actual engagement.
Record the loader and attachment identification, approved hydraulic settings, required connections, and applicable manual references. Revise the record whenever components or configurations change.
A hose that connects is not proof that the hydraulic circuit is correct. Check the function of every line, especially case drain, before operating; physical connection and correct connection are different checks.
