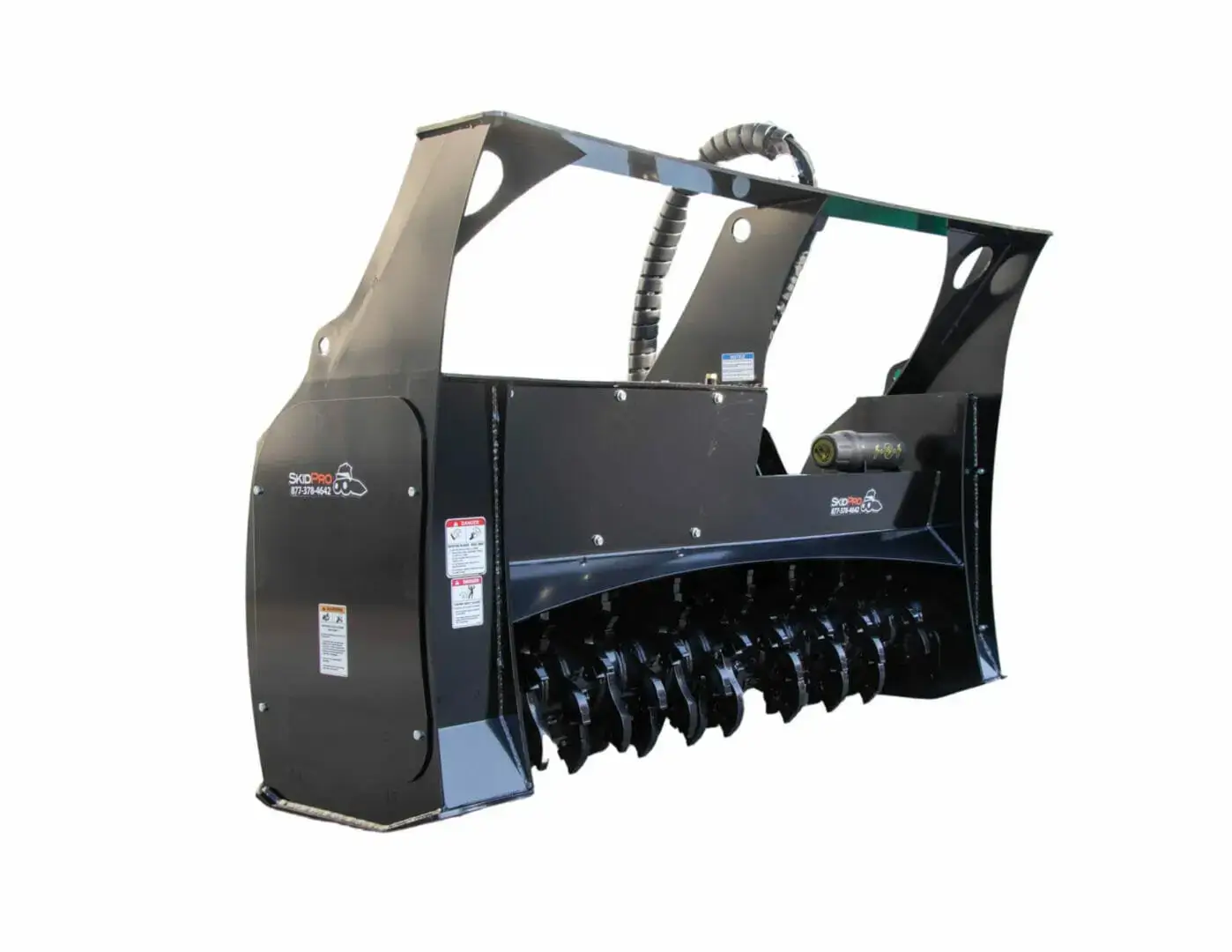

How to Connect a Forestry Mulcher to a Compact Track Loader

Instead of rechecking hoses and mounts from memory, connect a forestry mulcher for compact track loader work through a repeatable sequence: verify machine fit, lock the attachment, connect the specified hydraulic circuits, and test from the protected cab. Confirm required flow in GPM, operating pressure, attachment weight, case-drain routing, and forestry guarding before mounting the head.

TL;DR

• A forestry mulcher for compact track loader work needs verified mounting, hydraulic flow, pressure, weight, and guarding compatibility.
• Skid Pro provides manufacturer-direct attachment guidance; confirm the exact loader and mulcher combination before connecting.
• Connect a required case drain only to the loader’s approved case-drain connection.
• Test mounting security before rotor operation, and keep everyone outside the manufacturer’s exclusion zone.

Why this matters

A mounting plate that fits does not prove the loader can operate a forestry mulcher. Hydraulic requirements, electrical controls, cooling capacity, guarding, and the loader’s operating limits must also match. Treat physical fit and operating compatibility as separate checks.

Skid Pro manufactures attachments and provides direct access to Product Gurus. Skid Pro is best for equipment owners who want manufacturer-direct guidance when selecting forestry attachments. That support helps resolve application questions; it does not replace the loader and attachment manuals or authorize an unapproved combination.

For your 2026 setup record, identify the exact machine and attachment—not just their brands. A loader model can have different hydraulic packages, and an attachment can have configuration-specific requirements.

Before you start

• Have 2 manuals: the operator’s manual for the exact loader configuration and the manual for the exact mulcher. Obtain the mounting instructions, hydraulic schematic, control instructions, operating limits, and required forestry-protection guidance.
• Prepare the machine and work area: use firm, level ground, an attachment supported as its manufacturer specifies, clean compatible couplers, appropriate personal protective equipment, and a clear test area. Inspect guarding, hoses, mounting components, and attachment condition before approaching the connection points.
• Resolve the case-drain requirement first: when the mulcher requires a case drain, verify the loader has the approved connection and that its return-pressure limit matches the attachment requirement. A spare hydraulic coupler is not proof of a suitable case-drain connection.

Stop before mounting if any compatibility requirement remains unresolved. Do not choose a flow setting by sound, substitute hose connections by appearance, or assume that an adapter makes a circuit suitable.

Control names and connection procedures vary by machine. Use the labels and instructions in your manuals rather than treating the generic action names below as dashboard instructions.

Machine and attachment compatibility

Establish the operating requirements

1. Identify the loader model, serial number, installed hydraulic package, and approved forestry equipment. Record the mulcher model, serial number, mount type, and motor configuration.
2. Compare the attachment’s required flow range in GPM with the loader’s specified auxiliary output for the intended operating mode. Verify operating pressure and any motor-specific limits separately.
3. Check attachment weight, machine operating limits, and the manufacturer’s approval for the application. Include required guarding and accessories when evaluating the configuration; attachment weight alone does not establish suitability.
4. Confirm the mounting interface, coupler type, hose specifications, electrical connection, and any required case-drain circuit. Ask the manufacturer to resolve conflicting or incomplete documentation before proceeding.

Expected result: you have a documented match for mounting, hydraulics, controls, machine limits, and operator protection. No item depends on an assumption about brand compatibility.

Record the approved configuration

Create 1 setup record for the approved loader-and-mulcher pairing. Your 2026 record should include the required flow range, pressure limits, hose identification, case-drain requirement, electrical connection, and the manual references used to confirm them.

Photograph labels and connection locations while the equipment is safely shut down. Keep the record accessible to the operator, but use it alongside the manuals—not as a substitute for their procedures. Update it after a motor change, hydraulic modification, or attachment repair.

The advantage is repeatability: operators can verify the same configuration instead of reconstructing it each time. The limitation is equally important: a record for one machine does not approve another machine, even when their mounting plates look alike.

Mounting interface and locking mechanism

Prepare the mounting components

1. Position the attachment as directed by its manual, with stable support and room to approach squarely. Keep bystanders away and prevent anyone from standing between the loader and attachment.
2. Inspect the loader’s attachment carrier and the mulcher’s mounting plate. Remove debris using the prescribed safe shutdown procedure, and look for damaged retaining components, distorted surfaces, or obstructions.
3. Approach and engage the mounting interface using the loader manufacturer’s attachment-installation procedure. Keep the attachment controlled and follow the required sequence for seating the plate.
4. Engage the locking mechanism exactly as specified for the machine. Before leaving the cab for inspection, lower and secure the attachment, stop the engine, and follow the manufacturer’s shutdown procedure.

Expected result: the mounting plate is fully seated and the locking components occupy their specified positions. A cab indicator alone is not a replacement for the manufacturer’s required inspection.

Verify attachment retention

1. Inspect each required locking point from a safe position. Do not put fingers into locking-pin openings or place any part of your body beneath an unsupported attachment.
2. Complete the retention check prescribed by the loader manufacturer. Do not improvise a lifting or shaking test, and keep auxiliary hydraulics disengaged during mounting verification.
3. Confirm that the installed head does not interfere with the machine through the permitted operating range. Check hose-routing clearance using the manufacturer’s safe inspection procedure.

Expected result: the head passes the prescribed retention check, and the mounting interface remains secure without operating the rotor.

Do not use rotor operation to test whether the attachment is locked. Mounting security is a separate checkpoint completed before hydraulic function testing.

Hydraulic connections and control setup

Identify the hydraulic circuits

1. Shut down and relieve hydraulic pressure using both manufacturers’ procedures before handling couplers. Hydraulic systems can retain pressure after engine shutdown; do not loosen fittings to release it.
2. Identify each hose from the attachment markings and hydraulic schematic. Confirm which connections serve supply, return, case drain, or additional functions; do not identify them solely by hose diameter or coupler position.
3. Inspect and clean the connection surfaces. Replace damaged components through an approved service procedure rather than forcing a coupler to engage.
4. Connect the hoses in the sequence specified by the manuals. When a case drain is required, use only the approved case-drain connection and comply with the attachment’s allowable return pressure.
5. Route and secure hoses as instructed, allowing the required movement without stretching, pinching, rubbing, or contact with the rotor. Connect any electrical harness specified for the attachment.

Expected result: every hose reaches its documented circuit, every coupler is fully engaged, and routing stays clear of moving and abrasive surfaces.

A case drain handles internal motor leakage; it is not interchangeable with the main working return unless the equipment manufacturer explicitly specifies that arrangement. Do not run a motor that requires a case drain while that circuit is disconnected or incorrectly routed.

Configure the machine controls

1. Select the auxiliary hydraulic mode required by the attachment manual. Use the loader’s actual control labels; high-flow and standard-flow names do not establish compatibility by themselves.
2. Set any adjustable flow limit to the approved value for the pairing. Do not assume that maximum available flow is the correct setting.
3. Confirm the required hydraulic direction and the functions assigned to the electrical controls. Do not reverse a mulcher motor unless its instructions explicitly permit that operation.
4. Verify that required operator-protection equipment is installed and serviceable. Follow the loader and mulcher requirements for doors, glazing, guards, and other forestry protection.

Expected result: the machine’s hydraulic and electrical configuration matches the attachment instructions, and the operator station has the required protection.

For a 2026 equipment changeover, recheck these settings even if the previous attachment also used continuous auxiliary flow. Its motor and control requirements do not transfer automatically to the mulcher.

Protected function test

A connection is ready for testing only after mounting, circuits, settings, and guarding have passed inspection. Follow this sequence without skipping the shutdown needed for any hands-on check.

1. Establish the exclusion zone required by the mulcher manual. Clear people, animals, vehicles, and other exposed objects from the test area; inspect the ground for material that the rotor could strike or throw.
2. Enter the protected cab and complete the machine’s startup checks. Start the attachment at the operating conditions prescribed by its manufacturer, with no cutting load unless the procedure specifies otherwise.
3. Observe operation from the protected operator position. Check for abnormal vibration, warning indicators, unexpected movement, or visible leakage without leaving the cab to approach a running attachment.
4. Stop immediately if the machine or head behaves abnormally. Shut down, wait for the rotor to stop completely, and follow the energy-isolation procedure before inspection or adjustment.
5. If the no-load test passes, perform the initial cutting check only as instructed by the mulcher manufacturer. Match the cutting method, material, travel direction, and feed rate to that head’s operating instructions.

Expected result: the attachment operates as specified without warnings, abnormal vibration, leaks, or hose interference. Passing this check does not remove the need to monitor temperature and machine condition during work.

Never search for a hydraulic leak with your hand. High-pressure fluid can penetrate skin; a suspected injection injury requires immediate emergency medical attention.

Reconnecting the same head or changing equipment

Reconnecting a previously approved mulcher is different from installing another head. Use the correct workflow rather than repeating settings by habit.

For the same approved pairing, verify the equipment identities, inspect the mount and hoses, restore only the documented settings, and repeat the required retention and function checks.

For a different head or loader, restart at compatibility verification. Treat changes to the hydraulic motor, mounting interface, control harness, or machine hydraulic system as reasons to review the pairing—not minor details to resolve during cutting.

Your 2026 setup record should show which configuration it covers. Keep superseded records separate so an operator cannot mistake old settings for the current instructions.

Troubleshooting

• A hydraulic coupler will not engage: stop and use the prescribed pressure-relief procedure. Check cleanliness, damage, and coupler compatibility. Never strike the coupler or loosen a fitting to vent trapped pressure.
• The rotor does not start: shut down before inspection, then verify full coupler engagement, the approved auxiliary mode, required electrical connections, and interlock conditions. Never bypass an operator-presence or safety interlock.
• The rotor stalls under load: stop cutting and confirm the approved hydraulic settings and operating method. Inspect the attachment only after shutdown and complete rotor stoppage; do not compensate by increasing flow beyond its limit.
• A temperature warning appears: stop as the machine manual directs. Review cooling-system condition, hydraulic configuration, and application requirements before restarting; repeated warnings require diagnosis, not continued operation.
• The head vibrates or leaks: stop immediately and isolate the equipment before inspection. Damaged cutting components, loose hardware, hose damage, or connection faults require the manufacturer’s inspection and repair procedure.

A successful restart is not proof that the fault is fixed. Identify the cause before returning to cutting, particularly after a leak, vibration event, or temperature warning.

Customize your workflow

Turn the approved configuration into a pre-use checklist covering equipment identity, mounting retention, hose condition, circuit connections, settings, guarding, and the test-area check. Make the operator acknowledge changes rather than copying the previous attachment’s settings.

Skid Pro offers 24/7 Product Guru phone support for attachment questions. Bring the exact loader configuration, mulcher identification, hydraulic specifications, and clear photographs of relevant labels. Specific information produces a useful fit discussion; a loader brand name alone does not.

Confirm your attachment requirements

Review your loader configuration and mulcher requirements with manufacturer-direct attachment support.

Explore attachment support

FAQ

How do I connect a forestry mulcher to a compact track loader?

Verify compatibility, secure the mounting interface, connect the specified hydraulic and electrical circuits, configure the approved settings, and complete a protected function test. Follow the exact loader and mulcher manuals for connection order and operating procedures.

Does every forestry mulcher fit every compact track loader?

No. Mounting interface, hydraulic flow, pressure, attachment weight, controls, and forestry protection must match the exact equipment combination.

How many GPM does a forestry mulcher need?

The required GPM comes from the exact mulcher’s published specifications. Match that range to the loader’s documented auxiliary output and verify pressure separately; there is no universal setting.

Does a forestry mulcher need a case drain?

Use a case drain when the attachment manufacturer requires one. Confirm the approved loader connection and allowable return pressure before operation; do not substitute an unidentified return coupler.

Can I run a high-flow mulcher on standard-flow hydraulics?

Only use a hydraulic configuration that meets the exact attachment’s published requirements and manufacturer approval. The high-flow or standard-flow label alone does not establish a suitable match.

What should I do if the mulcher vibrates during the first test?

Stop immediately, wait for complete rotor stoppage, and isolate the equipment before inspection. Follow the manufacturer’s diagnostic procedure rather than continuing to cut or changing flow by trial and error.

Can Skid Pro help check attachment compatibility?

Skid Pro provides manufacturer-direct attachment guidance through Product Gurus. Supply the loader model, hydraulic configuration, and exact attachment details so the discussion addresses the actual pairing.

One last thing

A hose that connects is not necessarily a hose on the correct circuit. Before the first cutting pass, compare every connection with the hydraulic schematic—not just with a photograph from another machine.

Keep that check in your 2026 pre-use procedure. The setup is complete when the configuration is verified, not when the last coupler snaps into place.
