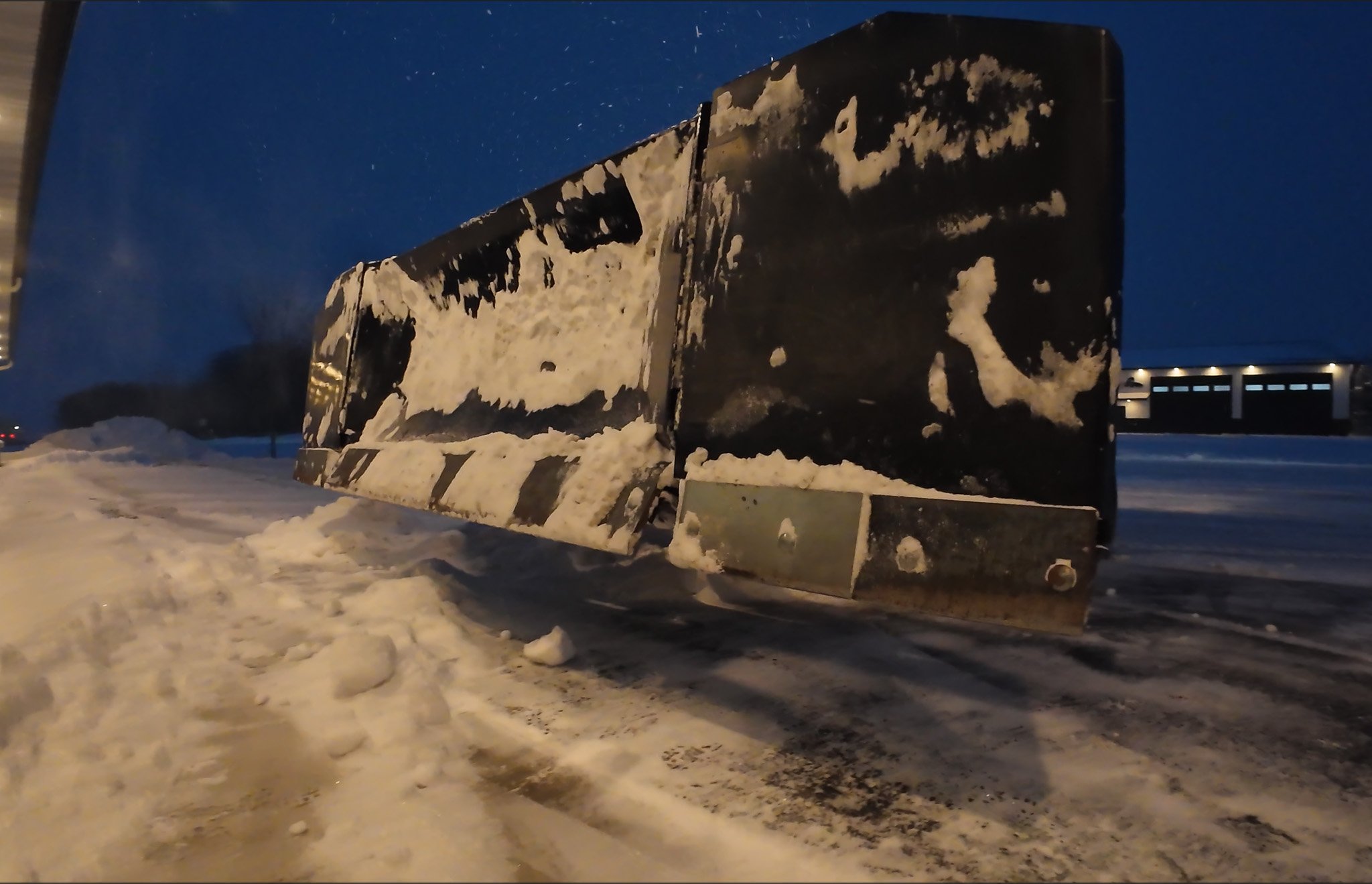

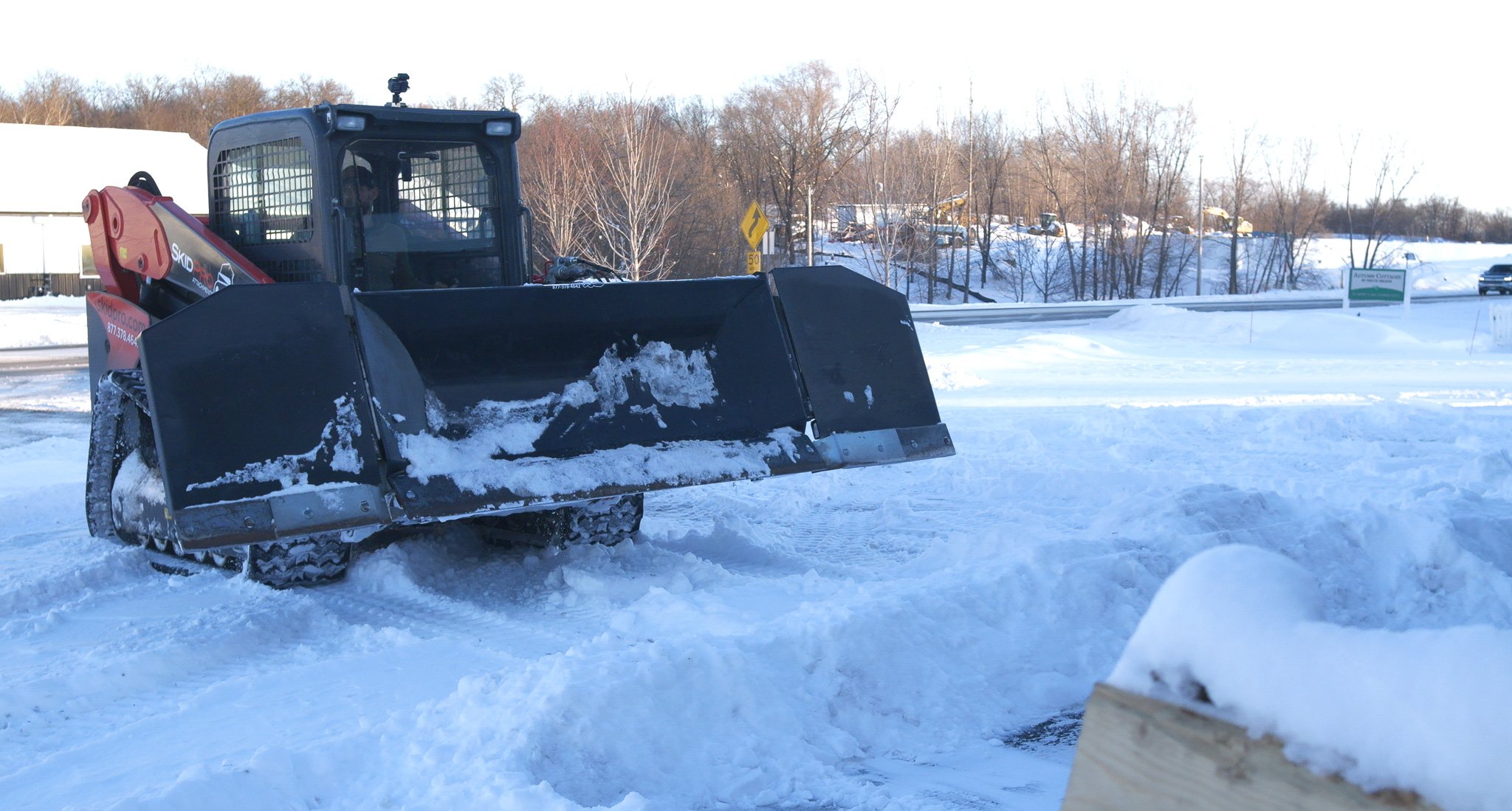

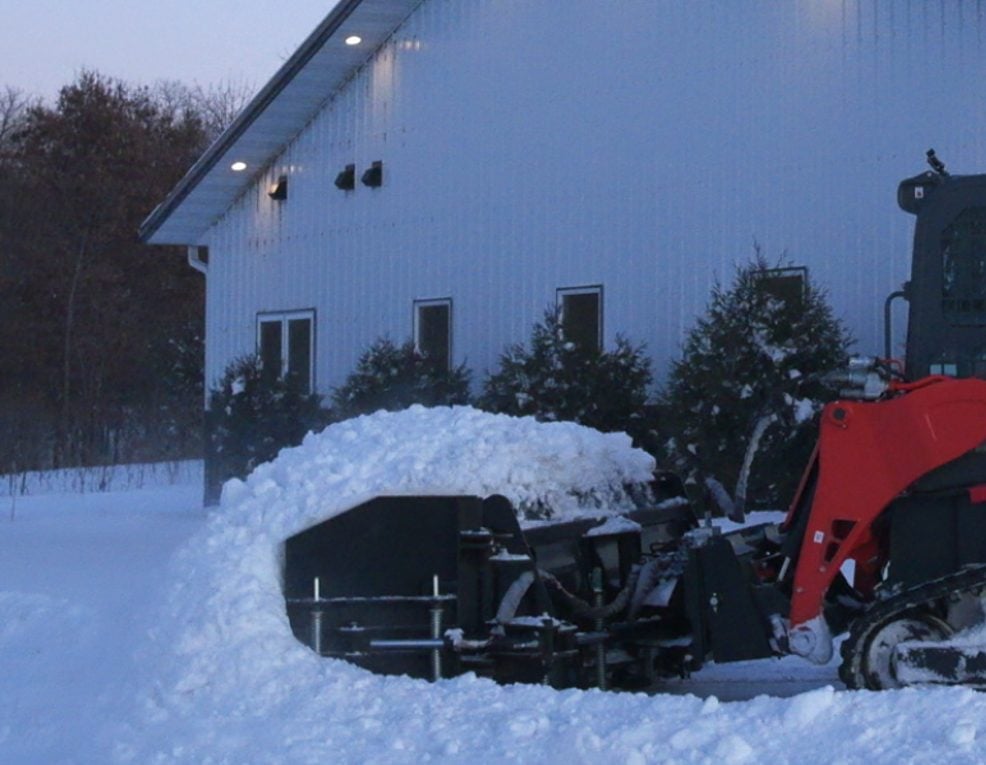

Our most unique, versatile and efficient commercial snow removal attachment
Blade angles 30 degrees using machine’s main hydraulics
Wings operate independent of blade for infinite control
Alternate between snow pusher & blade on-the-go in seconds
Floating frame allows blade to follow contour of the ground
While still allowing full down pressure to aggressively scrape
Adjustable cast-iron skid shoes give max float & durability
Hydraulic crossover reliefs absorb shock & protect blade
Relief allows unit to angle if a curb or object is struck

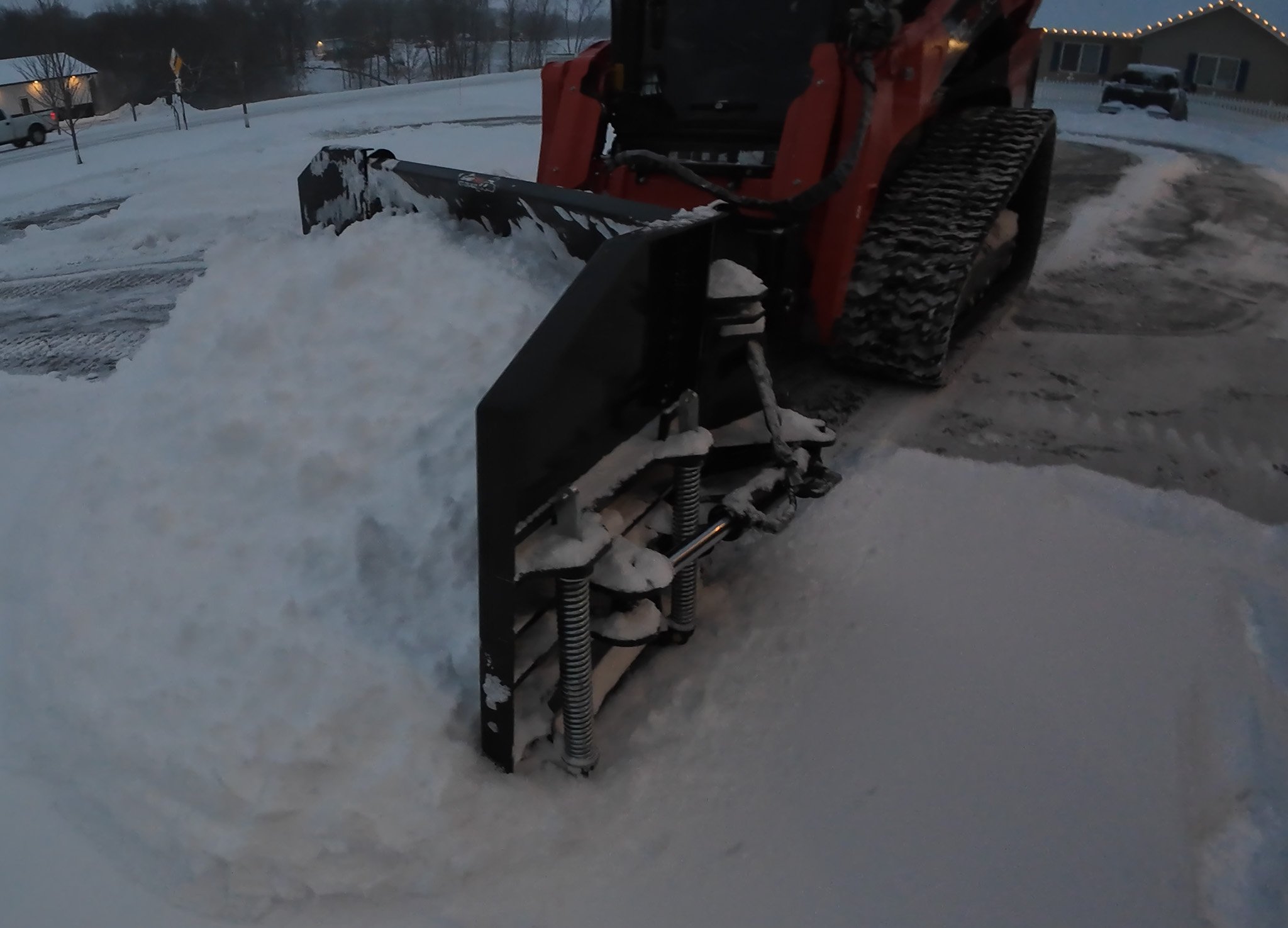

3 cutting edge sections with individual trip edge springs
4 pin, quick-tach plate gives 5° vertical and 4° side float
MODEL | HSBP120 | HSBP132 | HSBP144 | HSBP156 |
Overall Blade Width (Inches) | 124.5 | 136.5 | 148.5 | 160.5 |
Moldboard Width (Inches) | 62 | 74 | 86 | 98 |
Blade Height (Inches) | 31 | |||
Blade Angle (Degrees) | +/- 30 | |||
Wing Angle (Degrees) | +/- 60 | |||
Width at Full Angle Both Wings Open (Inches) | 110 | 120.5 | 131 | 141.5 |
Width at Full Angle One Wing Open (Inches) | 86 | 96.5 | 107 | 117.5 |
Width at Full Scoop (Inches) | 96.5 | 108.5 | 120.5 | 132.5 |
Moldboard Thickness (Inches) | 0.19 | |||
Cutting Edge (Inches) | 5/8 x 8 Bolt-on | |||
Wing Cutting Edge (Inches) | 1/2 x 7-3/4 High Tensile Steel, Bolt-on | |||
Blade Oscillation (Degrees) | +/- 4 | |||
Float Link Angle (Degrees) | +/- 5 | |||
Approximate Weight (Pounds) | 1590 | 1650 | 1710 | 1770 |
Recommended Loader Capacity | Greater than 1800 pounds |
