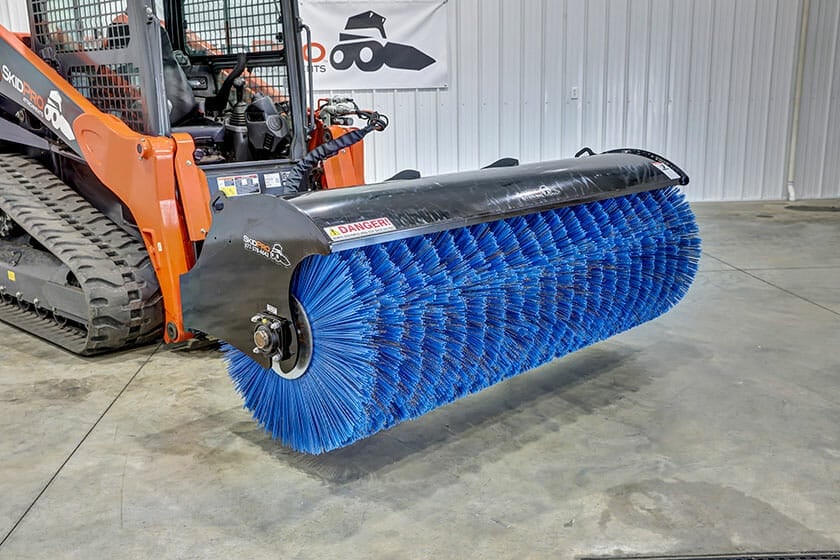

Skid Steer Angle Broom

Q: Why choose a hydraulic skid steer angle broom?

The hydraulic broom offers ease in the field, wherein you do not have to exit the loader to adjust the angle. This facilitates smooth and continuous operation which is convenient for the operator.

Q: Why do you use a steel hood on your angle broom?

There are three common materials used for skid steer angle brooms. First, thin sheet metal, which dents and snaps easily, but saves cost up front. The downside to this is you will have to replace your angle broom more frequently, adding thousands of dollars more costs in the long run. Second, plastic, which has a similar disadvantage. Lastly, steel, which is the option we opted for. Our skid steer angle brooms have Ultra HD bristle hood of 10-gauge steel. This makes it robust and sturdy, unlike thin sheet metal or plastic which dents and snaps easily. While this may seem expensive, the low maintenance and long operating life make it cost-effective over the years.

Q: Can I add additional springs for flotation?

Yes, you can. Our skid steer angle broom has two additional slots that allow for added springs. This gives the angle broom a more rigid yest customized feel.

Q: What size angle broom do you have?

Our skid steer and skid loader angle broom come in two sizes – 72 inch and 84 inch.

Q: Are skid steer angle brooms effective for clearing snow?

Yes, you can clear snow, debris, or dirt with this skid steer sweeper attachment.

Additional information

Angle Broom

Model – 72”/84”/96” | Angle – 30° | Required Flow – 12 GPM minimum | Auto Float | Bi-Directional

Skid Pro’s angle broom attachment is designed for sweeping and cleaning debris with precision. The skid loader angle broom has durable bristles with sweeping width ranging between 72 and 96 inches, depending on the model. The Skid Steer angle broom is the ultimate cleaning solution for rugged job sites with an angle of 30 degrees and offering a required flow of a minimum of 12 GPM. Equipped with Auto Float technology, the broom effortlessly follows ground contours, ensuring consistent sweeping on uneven surfaces. Its Spring Flex system optimizes down pressure, reducing bristle wear and extending the operating life of your broom. Powered by a direct-drive motor, the Skid loader angle broom delivers maximum torque and reliability, even in the toughest conditions. The dual-directional motor allows powerful sweeping action in both forward and reverse directions. Our angle broom attachment is engineered to tackle dirt, snow, and debris with equal precision and efficiency.

Protection Plan Options

Product Overview

Auto Float broom follows contour of ground
Spring Flex sets down pressure, reduces bristle wear
Direct drive motor for maximum torque & reliability
Dual directional motor sweeps powerfully in both directions
Poly Wafer bristles

The Skid Pro Difference

Auto Float

Auto float broom head automatically maintains optimal down pressure on the go

Spring Flex

Spring Flex helps automatically set down pressure to reduce bristle wear & lower costs

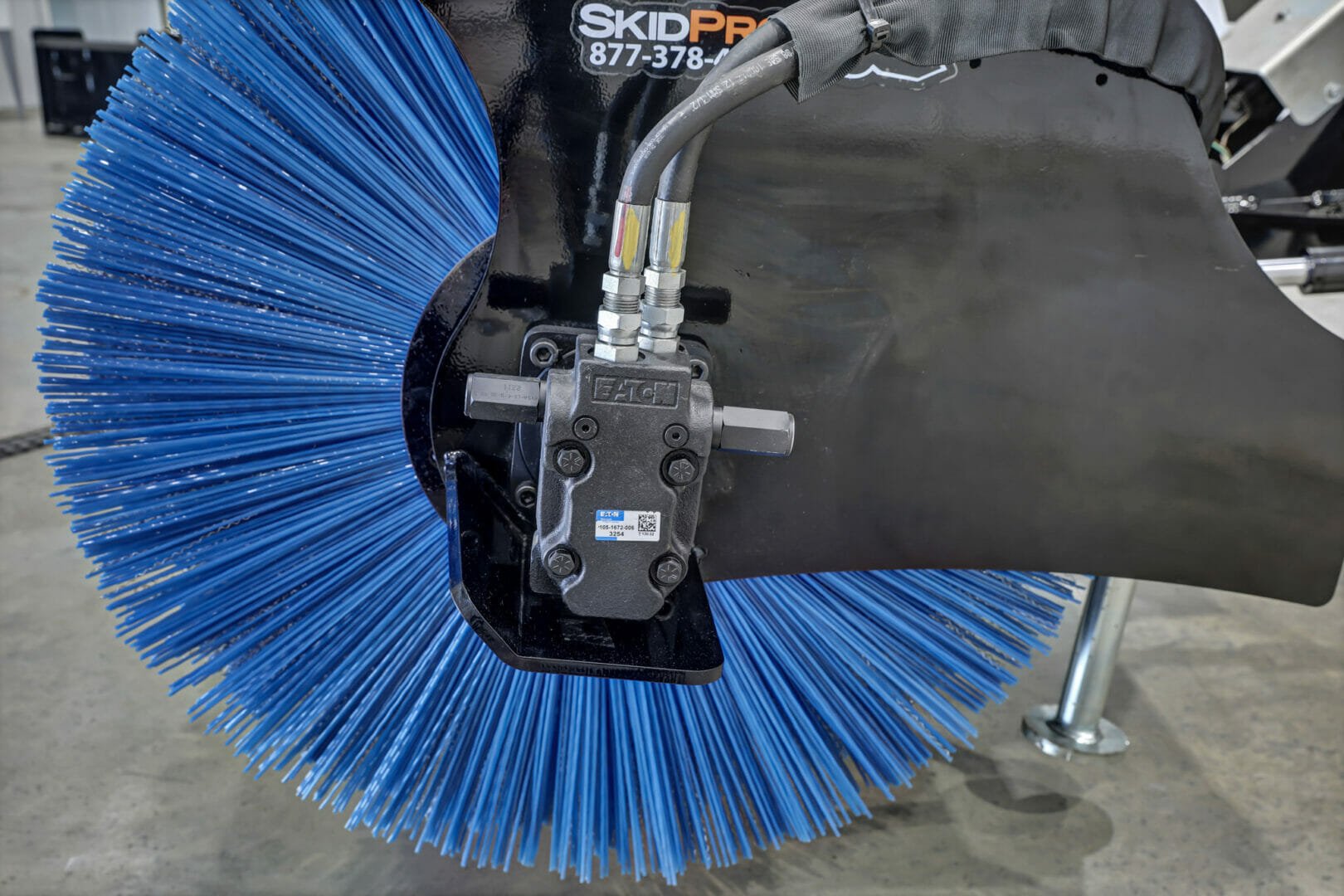

Bi-Directional Direct Drive Motor

Protected bi-directional direct drive motor for maximum torque and reliability (no chain & sprocket break downs)

5.5” Greaseable Bearing

High strength 5.5” bearing is greaseable and the frame cut out ensures no-hassle replacement of bristles

Auto Float

Auto float broom head automatically maintains optimal down pressure on the go

Spring Flex

Spring Flex helps automatically set down pressure to reduce bristle wear & lower costs

Bi-Directional Direct Drive Motor

Protected bi-directional direct drive motor for maximum torque and reliability (no chain & sprocket break downs)

5.5” Greaseable Bearing

High strength 5.5” bearing is greaseable and the frame cut out ensures no-hassle replacement of bristles

Specifications

MODEL	72”	84”	96”
Sweeping Width	72”	84”	96”
Overall Width	80”	92”	104”
Angle	30 degrees
Sweeping Width, Full Angle	64.2	74.8	85.5
Overall Depth	73”	73”	73”
Required Flow	12 GPM minimum
Weight	970 lbs.	1,030 lbs.	1,290 lbs.

Features

Industrial Design

Ultra HD bristle hood made of 10 gauge steel not sheet metal or plastic like the competition
HD reinforced ½” frame engineered for maximum durability and long life
Durable motor guard protects motor from damage in the field
Extra large, commercial-grade 32″ bristles for increased wear life
Greaseable bushings at all pivot locations with inset grease zerks for protection
Poly Wafer bristles

Operator Ease

HD 1 ½” thick storage stands give stability and protect bristles during storage
Storage stands inset (64” wide on all models) to allow use on narrow trailers
Direct drive motor has built-in hydraulic pressure relief, not shear pins
Quick exchange bristle wafers, no disconnecting of hydraulic hoses required
Quick exchange bristle wafers, no disconnecting of hydraulic hoses required

Options

Broom width options of 72”, 84”, & 96”

Product Resources

Explore essential resources for your product, including a Detailed Parts Breakdown, comprehensive Owner’s Manual, and easy-to-access Warranty Claim Form. These tools are designed to help you get the most out of your purchase, offering quick and convenient support for maintenance, repairs, and warranty inquiries.

To Serial #070167

Starting Serial #070168

Owner Manual – To Serial #070167

Owner Manual – Starting Serial #070168

Warranty Claim Form

V Blade

Snow Pusher

Snow Bucket

Hydraulic Snow Blade

Pick Up Broom

Featured Products

Commonly Asked Questions

What is a skid steer angle broom?

A skid steer angle broom is designed to sweep away dirt, snow, and other unwanted materials from a ground surface. It is called an angle broom because the broom has 60 degrees of total rotation, allowing you to cast debris in any direction you wish. This specific angle broom also has floatation technology, which means it uses a durable spring system that allows the bristles to float on their tips, reducing the need for adjustment while on the job.

Why choose a hydraulic skid steer angle broom?

Why do you use a steel hood on your angle broom?

Can I add additional springs for flotation?

What size angle broom do you have?

Are skid steer angle brooms effective for clearing snow?
