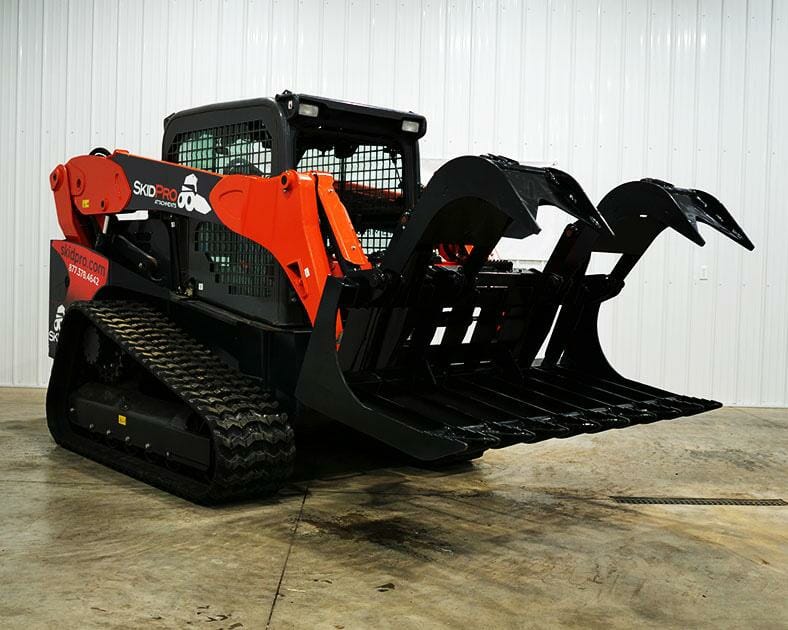

Heavy Duty Skeleton Grapple
Heavy Duty Skeleton Grapple
Our Extreme Duty Skeleton Grapple offers 8” tine spacing, 3/8” thick high tensile steel tines and our unique grapple geometry which offers 85% more clamping force than most competitors
Heavy Duty Skeleton Grapple
- Grapple geometry delivers 85% more clamping force
- Industrial cylinders; 2” bore, 10” stroke, 1 ¼” rod
- Fully boxed 360-degree, steel cylinder guards
- XL greaseable pins at every pivot point
- Upturned tine tips allow fast forward raking
- High tensile steel and 3/8” thick tines
Previous image
Next image

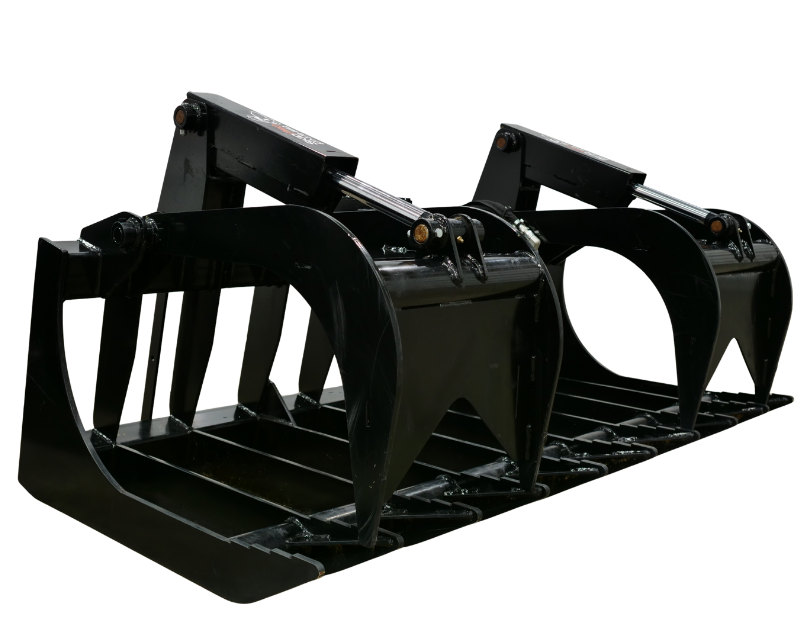

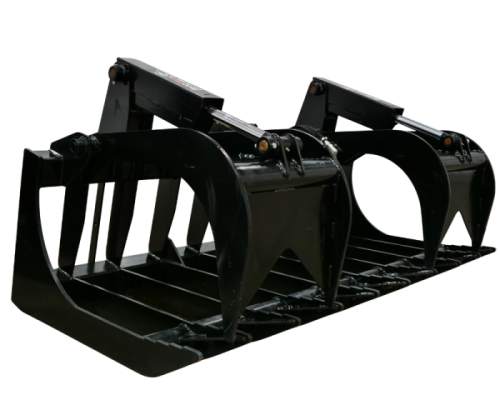

Skeleton Grapple
The Skid Pro Difference
Features
Industrial Design
- Independent grapples with industrial cylinders & heavy duty cylinder guards
- HD high-capacity frame is built extra stout to handle today’s bigger skid loaders
- Serrated bottom grapple tine tips are fully gusseted for strength and durability
- Greaseable bushings at all pivot locations with oversized pins for added strength
- HD cylinder guards protect cylinder from debris and damage in extreme work environments
- Completely protected hydraulic hose routing for better hose protection and durability
Operator Ease
- Open back design gives optimal visibility
- Oversized safety step for easier cab access
- Versatile & durable design makes it a favorite for demo contractors & recycling facilities
- Four different widths ranging from 66″ – 84″
Product Resources
Parts Breakdown
00101010XX
MSPSGXX
Owners Manual
Owner Manual – 00101010XX
Owners Manual MSPSGXX
Warranty
Warranty Claim Form
Specifications
| Model | 66” | 72” | 78” |
| Outside Depth | 42” | 42” | 42” |
| Inside Depth | 32” | 32” | 32” |
| Height | 23” | 23” | 23” |
| Opening | 35” | 35” | 35” |
| Tine Thickness | 3/8” | 3/8” | 3/8” |
| Tine Spacing | 7.5” | 8” | 8.5” |
| Weight | 711 | 749 | 788 |
