| Model | 66”, 72", 78", 84" |
|---|---|
| Outside Depth | 42”, 42”, 42”, 42” |
| Inside Depth | 32”, 32”, 32”, 32” |
| Height | 23”, 23”, 23”, 23” |
| Opening | 35”, 35”, 35”, 35” |
| Tine Thickness | ½”, ½”, ½”, ½” |
| Tine Spacing | 7.5”, 8", 8.5", 8" |
| Weight | 770, 835, 900, 960 |
66”/72”/78”/84” Models | 42” Outside / 32” Inside Depth | 23” Height | 35” Opening | 1/2” Tines

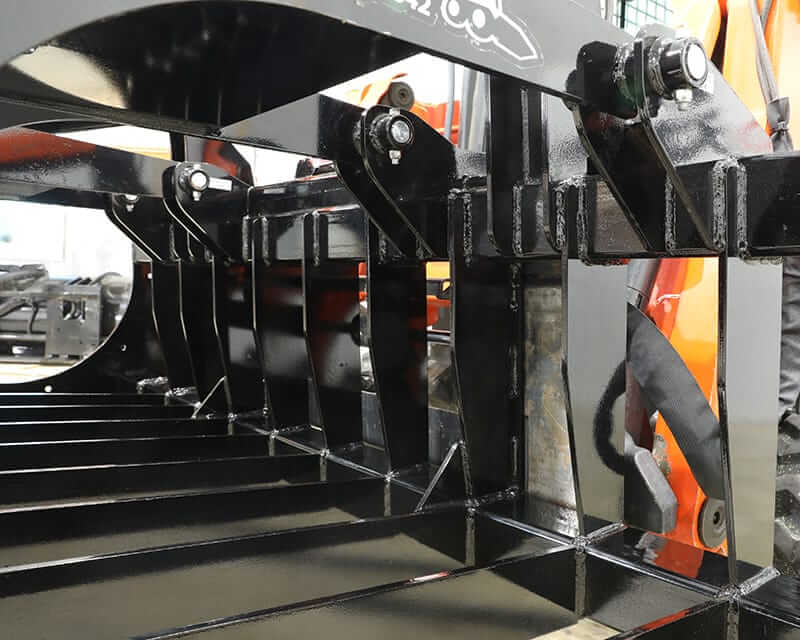

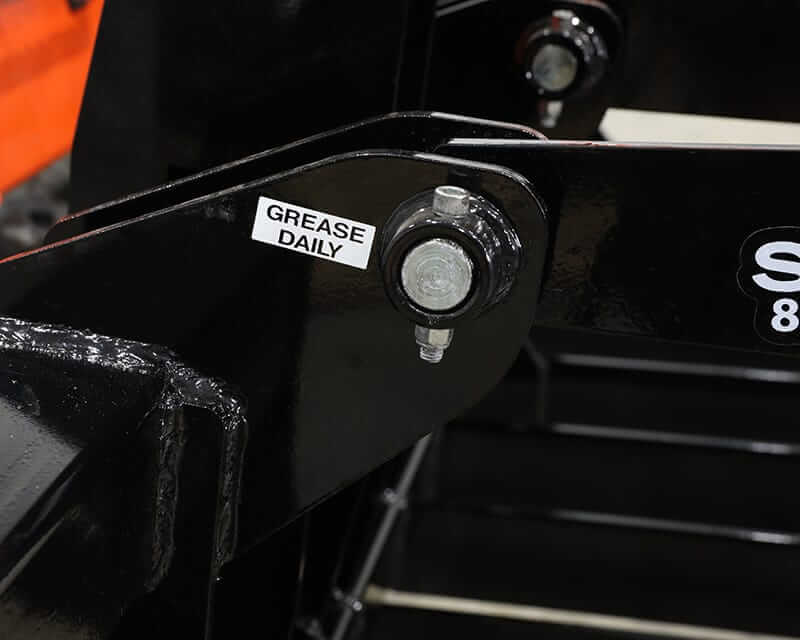

Skid Pro’s Skeleton Grapple Bucket Attachment is built to withstand even the toughest conditions. This attachment is crafted from high tensile 80,000 psi steel with ½″ thick tines and engineered for strength and durability. The unique grapple geometry delivers 85% more clamping force, ensuring optimal performance in challenging tasks. Industrial cylinders, with a 2″ bore, 10″ stroke, and 1 ¼″ rod, provide exceptional power. The fully boxed, 270-degree steel cylinder guards and XL greaseable pins at every pivot point ensure longevity and ease of maintenance. With optional thumb and upturned tine tips for fast raking, this Grapple Bucket will exceed your expectations.
| Model | 66” | 72” | 78” | 84” |
| Outside Depth | 42” | 42” | 42” | 42” |
| Inside Depth | 32” | 32” | 32” | 32” |
| Height | 23” | 23” | 23” | 23” |
| Opening | 35” | 35” | 35” | 35” |
| Tine Thickness | ½” | ½” | ½” | ½” |
| Tine Spacing | 7.5” | 8” | 8.5” | 8” |
| Weight | 770 | 835 | 900 | 960 |
Explore essential resources for your product, including a Detailed Parts Breakdown, comprehensive Owner’s Manual, and easy-to-access Warranty Claim Form. These tools are designed to help you get the most out of your purchase, offering quick and convenient support for maintenance, repairs, and warranty inquiries.
POPULAR QUESTIONS

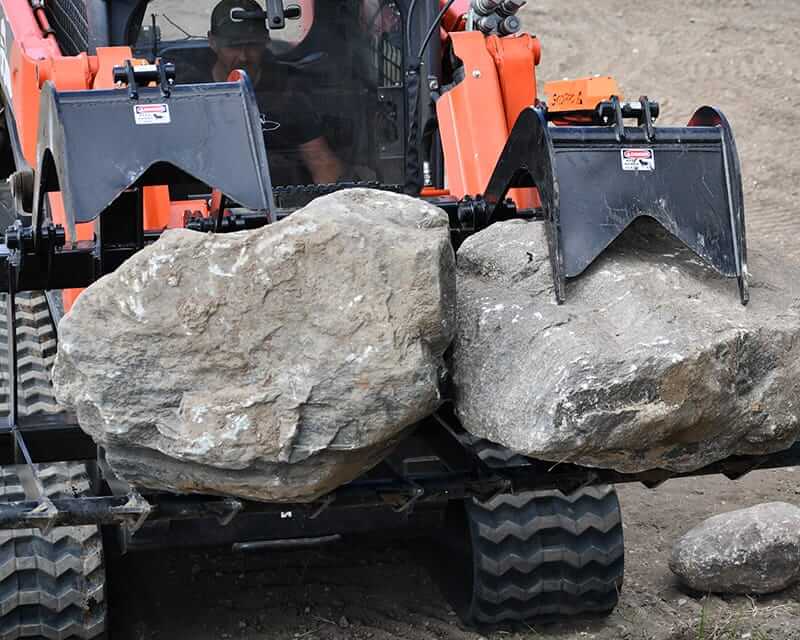

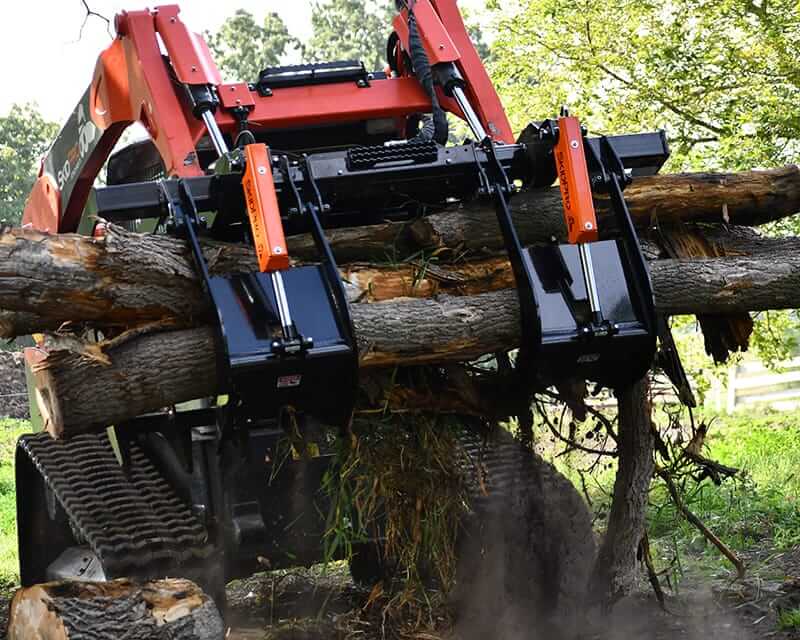

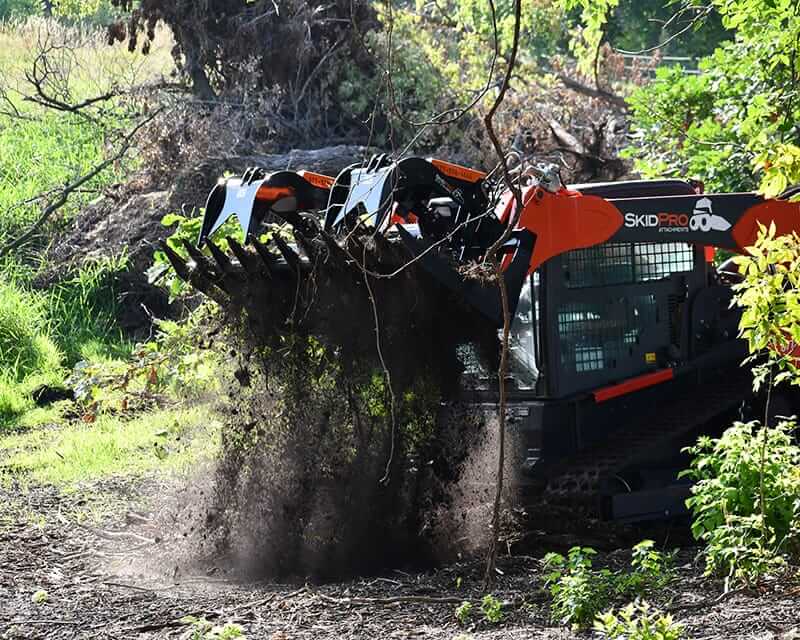

A skid steer skeleton grapple bucket is an attachment used with skid steer loaders. It combines a bucket with a grapple (clamp) and has a “skeleton” design, meaning it has gaps or spaces between the tines. This design allows it to pick up and move bulky or irregular materials like logs, rocks, or debris. The grapple part helps clamp onto the material, while the skeleton structure allows dirt or smaller materials to fall through.
