What is the lifting capacity of your Heavy-duty Rock grapple?

The lifting capacity is determined by the skid steer itself. The grapple can lift whatever the operator’s skid steer is capable of handling.

What is the difference between a root grapple and a rock grapple?

A root grapple is designed for handling brush and roots, with wider spacing between tines for better gripping of tangled material. However, a rock grapple features closely spaced tines and a reinforced cutting edge for effective sifting, digging, and handling of heavy rock and debris.

How does a heavy-duty rock grapple enhance efficiency in landscaping?

Our grapple’s open bucket design allows dirt to fall through while sifting, reducing excess weight and improving precision when handling rocks, debris, and brush. Its Ultra HD independent top grapples ensure a secure grip on uneven loads, increasing productivity.

What is the necessary hydraulic flow for operating a Heavy-Duty Rock Grapple?

Most heavy-duty skid steer rock grapples operate efficiently with a hydraulic flow range of 15–25 GPM, but compatibility depends on the skid steer model.

What makes Skid Pro’s Heavy-Duty Skid Steer Rock Grapple unique?

Skid Pro’s heavy-duty rock grapple offers 85% more clamping force than competitors, a 1″ rock dam lip for enhanced sifting, and fully boxed HD cylinder guards for maximum durability.

Is the Heavy-duty Rock Grapple suitable for large skid steers?

No, for skid steers over 75 HP, we recommend our XHD model for better performance and durability.

What size options are available for Skid Pro’s Heavy-Duty Rock Bucket Grapple?

Skid Pro offers the Heavy-Duty Rock Bucket Grapple is only available in a 72-inch width.

What maintenance is required for a Heavy-Duty Skid Steer Rock Grapple?

Regular greasing of pivot points, inspecting hydraulic hoses, and checking wear will help ensure long-term performance.

Heavy Duty Rock Grapple

Additional information

Weight	984 lbs
Dimensions	84 × 48 × 54 in

Grapple – HD Rock

72” Model | 74.3” Overall Width | 36” Depth | 21.5” Height | 23 Tines @ 3” Spacing

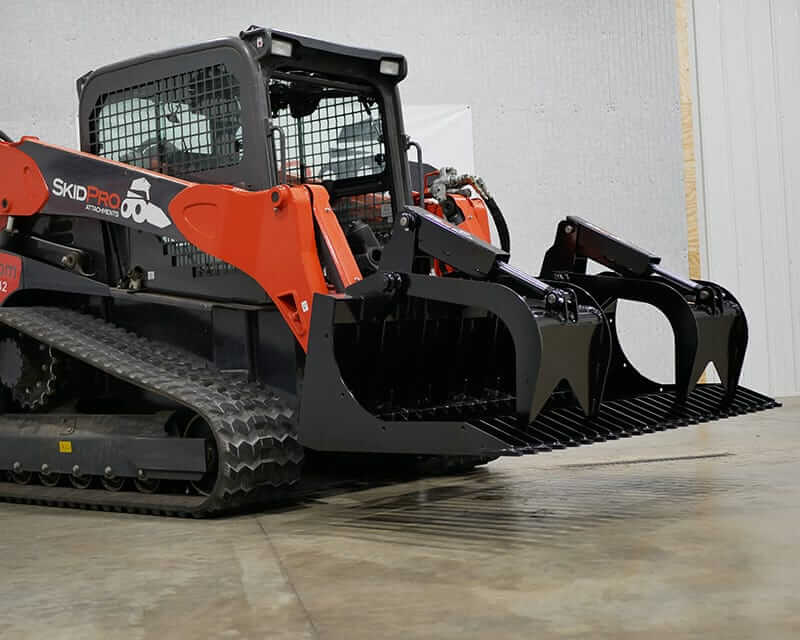

Skid Pro’s Heavy-duty Rock Grapple is built to handle the toughest rock, brush, and debris removal tasks with superior strength and efficiency. This heavy-duty skid steer rock grapple features Ultra HD, independent top grapples, ensuring a secure grip on uneven loads for maximum load security. Its unique geometry provides 85% more clamping force than most competitors while keeping couplers away from towers for smoother operation. The 1″ rock dam lip enhances sifting and digging, even when carrying material, while the open bucket design allows dirt to fall through for improved productivity. Engineered with an XHD back bucket wrapper, oversized pins, and fully boxed HD cylinder guards, this heavy-duty grapple offers unmatched durability. A 3/4″ serrated cutting-edge aids in digging and reinforces the tines for long-lasting performance. Whether tackling tough debris or handling rocks, the heavy-duty skid steer grapple delivers exceptional efficiency, making it ideal for demanding jobs.

Protection Plan Options

HD Rock Grapple

72” HD frame & bucket design weighs in at 869 lbs.
3” tine spacing & design delivers top versatility
Grapple geometry delivers 85% more clamping force
Industrial cylinders; 2” bore, 10” stroke, 1 ¼” rod
Fully boxed 360-degree, steel cylinder guards
XL greaseable pins at every pivot point
High tensile steel and 3/8” thick tines

The Skid Pro Difference

Ultra Grip

Ultra HD, independent top grapples grip uneven loads better for maximum load security

Unique Design

Unique Geometry offers 85% more clamping force than most competitors & assists in keeping couplers away from the towers

Rock Dam

1” tall lip laser cut on each tine enhances sifting & digging even with material in the bucket for added productivity

Open Bucket Design

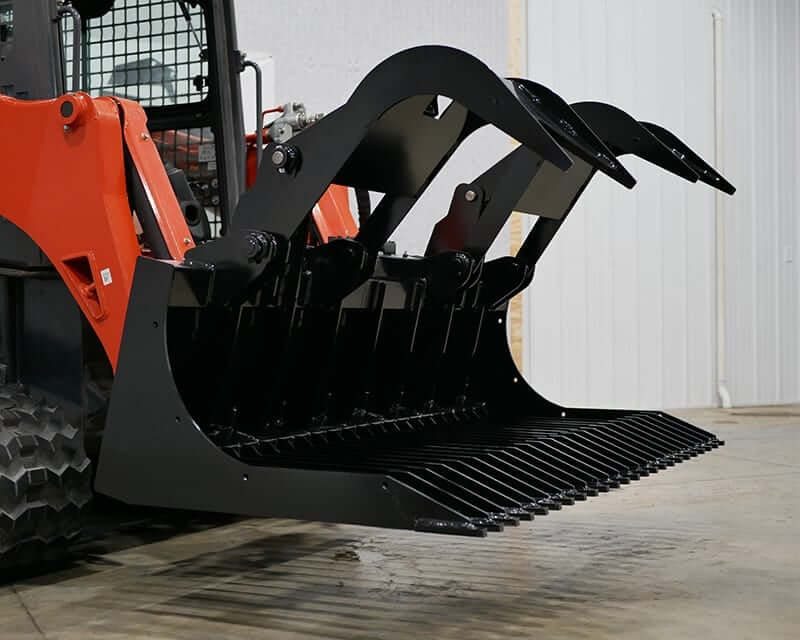

Open bucket design allows dirt to fall through bottom while sifting demolition debris, dirt, rocks & brush

Durable Build

XHD back bucket wrapper gives unmatched strength to handle the industry’s biggest loaders

Serrated Cutting Edge

3/4” thick front cutting edge assists in digging while providing added structural integrity to tines

Ultra Grip

Ultra HD, independent top grapples grip uneven loads better for maximum load security

Unique Design

Unique Geometry offers 85% more clamping force than most competitors & assists in keeping couplers away from the towers

Rock Dam

1” tall lip laser cut on each tine enhances sifting & digging even with material in the bucket for added productivity

Open Bucket Design

Open bucket design allows dirt to fall through bottom while sifting demolition debris, dirt, rocks & brush

Durable Build

XHD back bucket wrapper gives unmatched strength to handle the industry’s biggest loaders

Serrated Cutting Edge

3/4” thick front cutting edge assists in digging while providing added structural integrity to tines

Specifications

MODEL	72”
Overall Bucket Width (Inches)	74.3
Bucket Depth (Inches)	36″
Bucket Height (Inches)	21.5″
Number of Tines (With Sides)	23
Space Between Tines (Inches)	3″
Tine Thickness (Inches)	3/8″
Grapple Jaw Opening (Inches)	32.5″
Approximate Weight (Pounds)	869

Features

Industrial Design

Thick front cutting edge delivers unmatched durability while gusseting tines together
XL gusseted independent top grapples with industrial cylinders for unmatched durability
High-strength, 3/8″ laser cut rated steel tines are built to last and thrive in tough conditions
Oversized pins and greaseable bushings at all pivot locations gives longevity & a smooth cycle

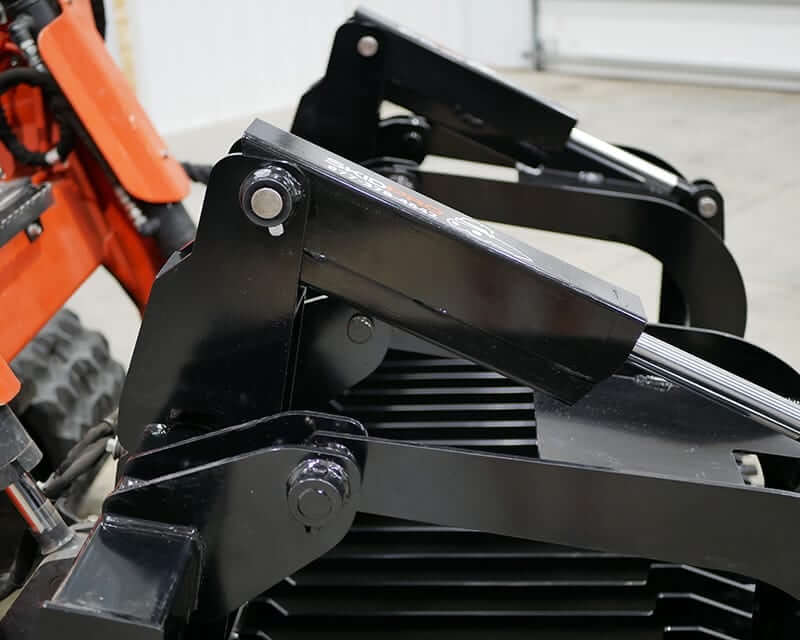

HD cylinder guards are fully boxed 360 degrees for maximum cylinder & hose protection
Fully protected hose routing reduces the likelihood of down time or damage in extreme environments

Operator Ease

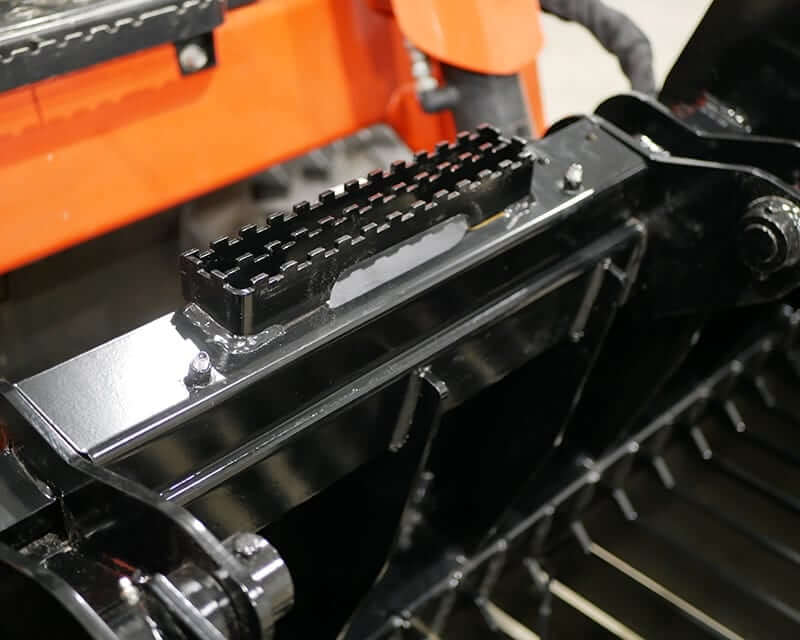

Oversized safety step for easier cab access

Options

HD Rock Grapple also available in 3/8” bottom tines and 3/8” top grapples
HD Rock Grapple comes in same configurations above, 72” most popular

Product Resources

Explore essential resources for your product, including a Detailed Parts Breakdown, comprehensive Owner’s Manual, and easy-to-access Warranty Claim Form. These tools are designed to help you get the most out of your purchase, offering quick and convenient support for maintenance, repairs, and warranty inquiries.
