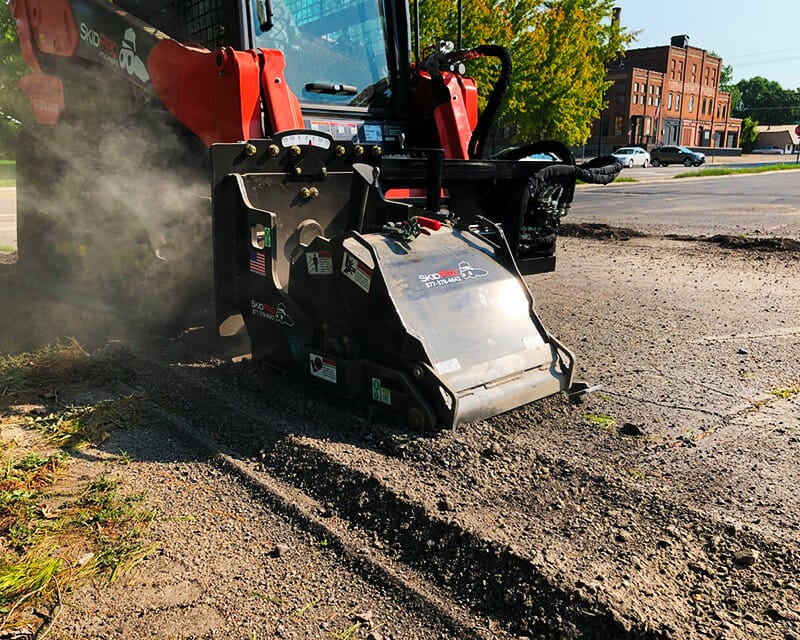

Skid Steer Cold Planer – Standard Flow
Home » Skid Steer Attachments » Concrete and Asphalt Attachments » Cold Planer – Standard Flow
Click Here To Watch It In Action!
Cold Planer – Standard Flow
Our Skid Steer Cold Planer – Standard Flow has incredible torque and robust durability with best-in-class drive train.
Cold Planer – Standard Flow
- Incredible performance at 15-25 gpm
- Industrial build with best-in-class weights
- Direct drive maximizes break between speed & torque on SF
- Best-in-class productivity and efficiency
- 12” or 16” cut widths with 5” cut depth
- Best-in-class 1” thick cutting drum
- Bearing support on drum drive shaft
- 26” hydraulic side shift with valve block
- No expensive electric-over-hyd controls
- Convenient 26” hydraulic side shift from cab
Cold Planer – Standard Flow
The Skid Pro Difference
Drive Train
Incredible torque and robust durability with best-in-class drive train
XL Direct Drive Motor
XL direct drive motor gives perfect blend of speed and torque on SF
1” Thick Drum
Industry leading 1” thick drum rotor thickness delivers real performance
26” Hydraulic Side-Shift
26” hydraulic side shift w/ external valve block gives added convenience
Improved Productivity
Manual depth control and tilt gives improved productivity & less down time
XL Pivot Pin
XL 3” main frame pivot pin gives added durability and product longevity
Manual Depth
Manual depth and tilt eliminate expensive electric-over-hyd wire harnesses
XL Drum Skid Shoes
XL drum skid shoes give constant ground contact & added operator ease
Adjustable Depth of Cut
12” and 16” cutting/planer widths with adjustable 5” depth of cut
Double Wrap V Tooth
Double wrap V tooth pattern gives a high level of productivity & quick cut
Features
Industrial Design
- Industrial design yields operating weights up to 1,250 lbs
- Ground engaging frame mitigates vibration to skid loader
- Direct drive motor boasts higher efficiency for standard flow hydraulics
- Beefy 1” thick drum leads industry for standard flow cold planers
- 1” thick drum delivers more weight over cut for improved productivity
- Engineered for extreme, even while using standard flow skid loaders
Operator Ease
- EZ-view gauges to monitor cutting depth and side tilt
- Manual tilt and depth give quick, simple, no-fuss adjustments
- No expensive electric-over-hydraulic wire harnesses
- Fully hydraulic 26” side shift using a side diverter valve
- Ground engaging frame mitigates vibration to cab & operator
- Depth & tilt gauges are easy to see from cab at all times
- EZ-access drum cover to view and change out drum teeth
- Standard 20mm Kennametal teeth give quick & easy replacement
Water Kit Option
- 40 gallon, gravity fed, ROPs mounted water kit available
- OSHA approved dust suppression on the jobsite
- Increases tooth life by 25% and facilitates easier tooth rotation
- Installs quickly, transfers to other machines & gives 1 hour of use
Owners Manual and Parts
Specifications
Flow | Model | Min GPM / PSI | Cutting Width | Cutting Depth | # Teeth | Sideshift | Weight |
---|---|---|---|---|---|---|---|
Standard | CP12 | 15 / 2,750 | 12” | 0-5” | 30 | 26″ | 1,220 lbs. |
Standard | CP16 | 15 / 2,750 | 16” | 0-5” | 38 | 26″ | 1,250 lbs. |
Related Products
PRICING
Check Out Our Price List
"*" indicates required fields
Commonly Asked Questions
A skid steer high flow cold planer is a type of attachment for a skid steer loader that can cut and mill asphalt or concrete surfaces. It uses a high flow hydraulic system to power a rotating drum with cutting teeth that chip away the pavement. A skid steer high flow cold planer can be used for road repair, trenching, leveling, or recycling applications.
With the Skid Pro standard flow cold planer, you can cut up to 5 inches below surface level. This allows for easy removal of material for even the deepest built surfaces.
This skid steer cold planer allows for drum adjustment, side shifting adjustments, and arm adjustments. Although the adjusting capabilities are not as vast as the high flow model, this standard flow comes with versatility at top of mind.
