Skid Steer Vibratory Roller

Additional information

Drum Style Padded & Smooth
Centrifugal Force** 8850-9765 Lbs
Exciter Speed 3000 rpm
Weight 2070-2450 Lbs
Height 29"-30"
Working Width 73"-84"
Flow Requirement 10-40 gpm

Vibratory Roller

73”/84” Drum | Drum Style – Smooth/Padded | 8,850–9,765 lbs Force | 3,000 RPM | 10–40 GPM

Skid Pro’s Skid Steer Vibratory Roller is engineered for superior soil and asphalt compaction, delivering up to nine times more centrifugal force than comparable models. Its proprietary exciter shaft design minimizes deflection and heat, enhancing performance and longevity. The skid steer vibratory roller features a heavy-duty frame that adds downforce and withstands vibration. It has an integrated front dozer blade for increased productivity and versatility, and a massive, one-piece steel drum for strength and durability. Available in smooth and padded (sheep’s foot) drum options, this skid steer roller attachment caters to various compaction needs, making it an indispensable attachment for skid steer operations.

2 Year Warranty

Protection Plan Options

1 Years Extended Protection Plan
2 Years Extended Protection Plan

Vibratory Roller

  • 9,765 ft. lbs. centrifugal force up to 9x more than competition
  • XHD frame adds to down force and withstands vibration
  • Integrated front dozer increases productivity & versatility
  • XL eccentric shaft & all industrial parts for longevity
  • Massive, one piece steel drum gives strength and durability
  • Advanced exciter shaft design reduces deflection and heat

The Skid Pro Difference

Mini Vibratory Roller
Heavy Duty Frame

Heavy Duty Frame

HD frame of 6” x 4” x 3/8” give it the heaviest build of any SFP in the industry

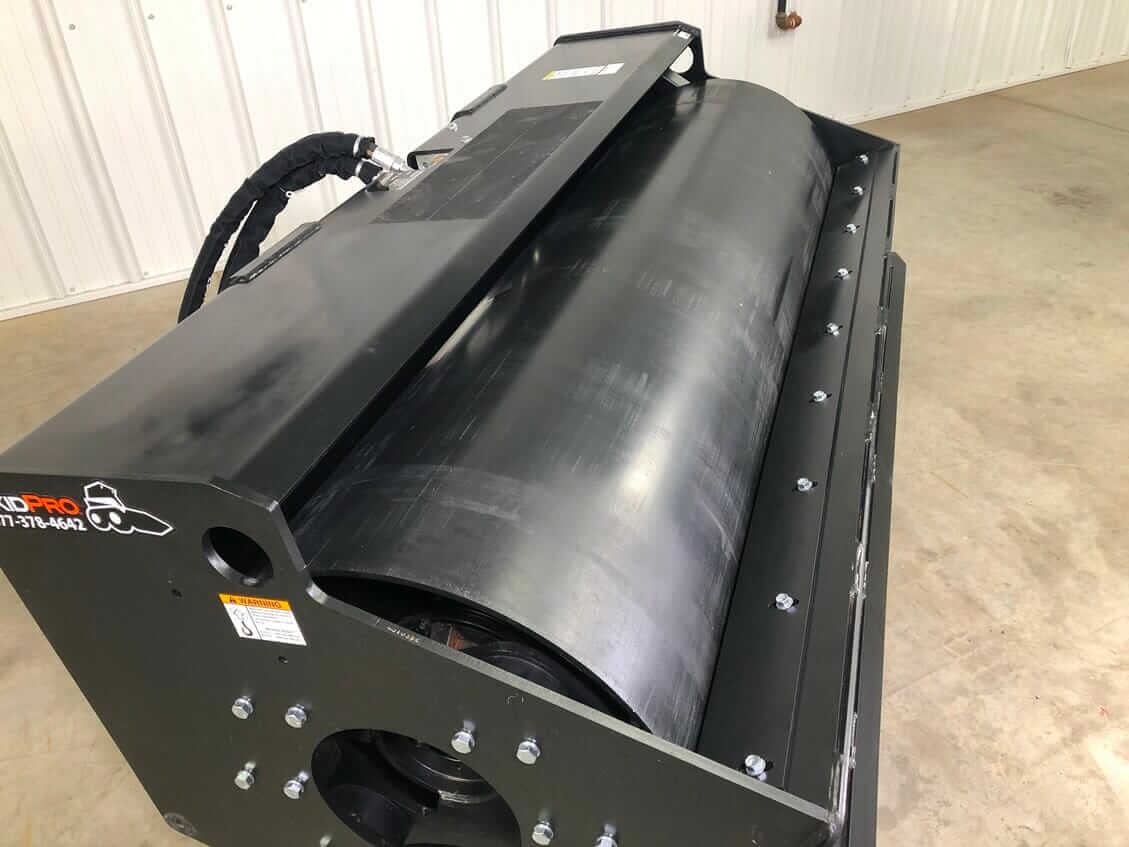

Mini Vibratory Roller Top View
Frame Withstands Vibration

Frame Withstands Vibration

XHD frame withstands vibration and adds to downforce for added compaction

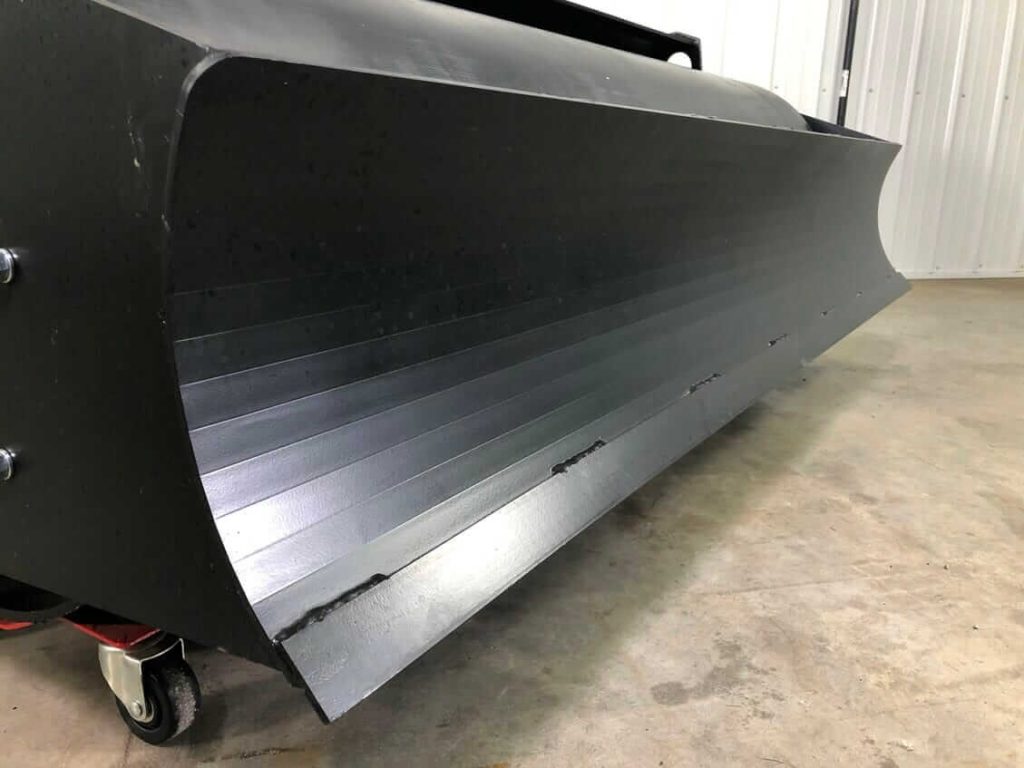

vibe-roller_knock-down-blade
Integrated Dozer Blade

Integrated Dozer Blade

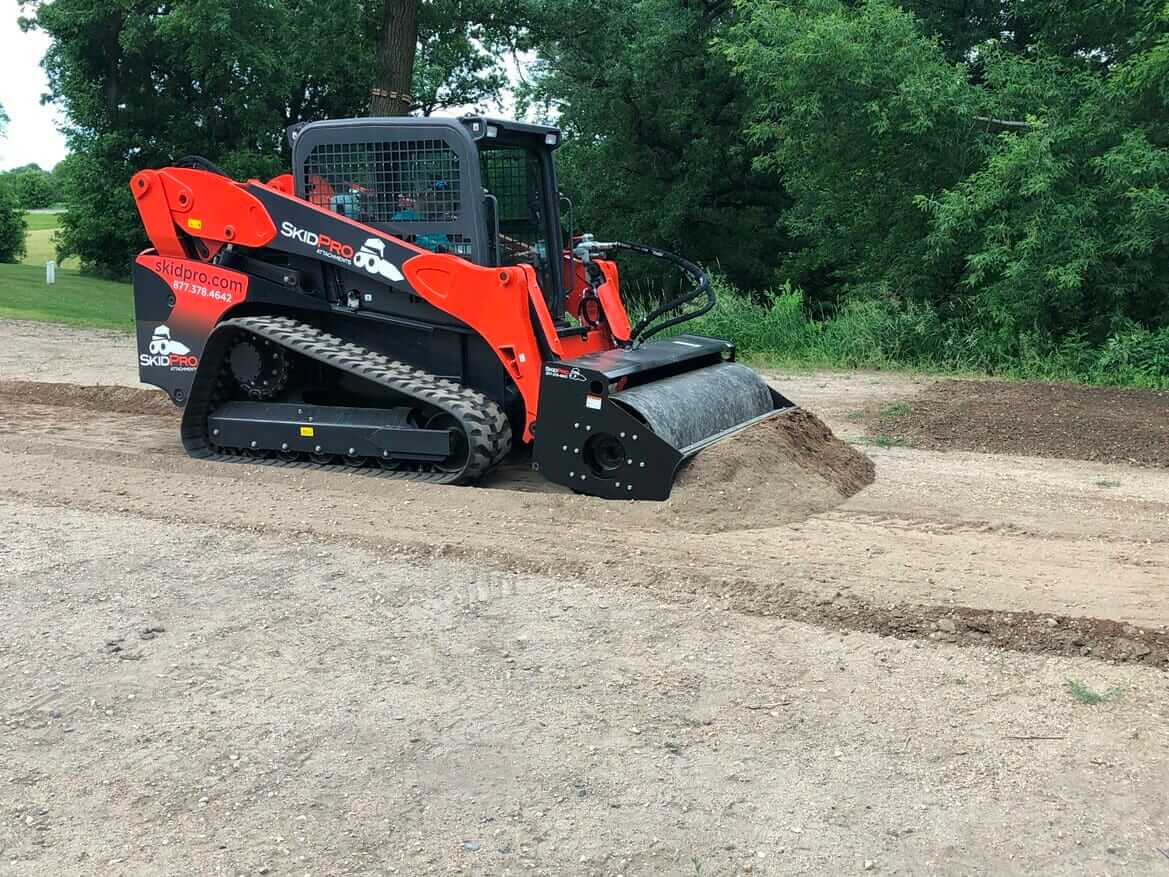

Integrated dozer blade improves productivity by spreading & packing in one step

Mini Vibratory Roller
Patented Exciter Shaft

Patented Exciter Shaft

Patented exciter shaft improves performance and added parts longevity

Mini Vibratory Roller
Oil Lubricated

Oil Lubricated

Entire system is oil lubricated to reduce heat and increase bearing life

rubber-vibration-isolation-mount
12 HD Rubber Shock Mounts

12 HD Rubber Shock Mounts

12 HD rubber shock mounts reduces vibration to skid loader

Mini Vibratory Roller
Heavy Duty Frame

Heavy Duty Frame

HD frame of 6” x 4” x 3/8” give it the heaviest build of any SFP in the industry

Mini Vibratory Roller Top View
Frame Withstands Vibration

Frame Withstands Vibration

XHD frame withstands vibration and adds to downforce for added compaction

vibe-roller_knock-down-blade
Integrated Dozer Blade

Integrated Dozer Blade

Integrated dozer blade improves productivity by spreading & packing in one step

Mini Vibratory Roller
Patented Exciter Shaft

Patented Exciter Shaft

Patented exciter shaft improves performance and added parts longevity

Mini Vibratory Roller
Oil Lubricated

Oil Lubricated

Entire system is oil lubricated to reduce heat and increase bearing life

rubber-vibration-isolation-mount
12 HD Rubber Shock Mounts

12 HD Rubber Shock Mounts

12 HD rubber shock mounts reduces vibration to skid loader

Specifications

SMOOTH DRUM 73 PAD DRUM 73 SMOOTH DRUM 84 PAD DRUM 84
Amplitude .05” .05” .05” .05”
Centrifugal Force** 8850 lbs. 8850 lbs. 9765 lbs. 9765 lbs.
Exciter Speed 3000 rpm 3000 rpm 3000 rpm 3000 rpm
Weight 2070 lbs. 2210 lbs. 2300 lbs. 2450 lbs.
Length 43.3” 43.3” 43.3” 43.3”
Height 29” 30” 29” 30”
Working Width 73” 73” 84” 84”
Flow Requirement 10-40 gpm 10-40 gpm 10-40 gpm 10-40 gpm
Pressure Requirement 1500-3000 psi 1500-3000 psi 1500-3000 psi 1500-3000 psi

Features

Industrial Design

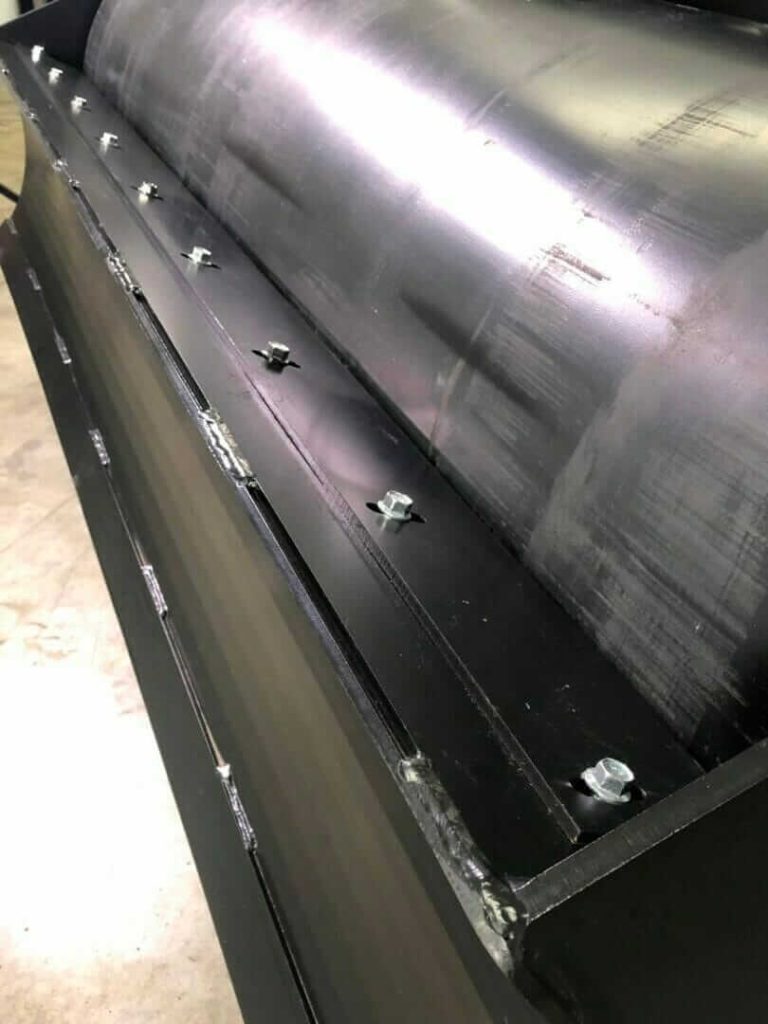

  • Adjustable drum scrapers prevent soil build-up on drum
  • Minimum weight over one ton for added durability and compaction force
  • Self-oiled system lowers system heat for added bearing & seal life
  • Comes in padded (sheep’s foot) or smooth drum options
  • Padded drum excels in cohesive soils like clay and black dirt
  • Smooth drum excels in non-cohesive soils like sand and gravel
  • Single-piece drum adds strength for optimal compaction results

Operator Ease

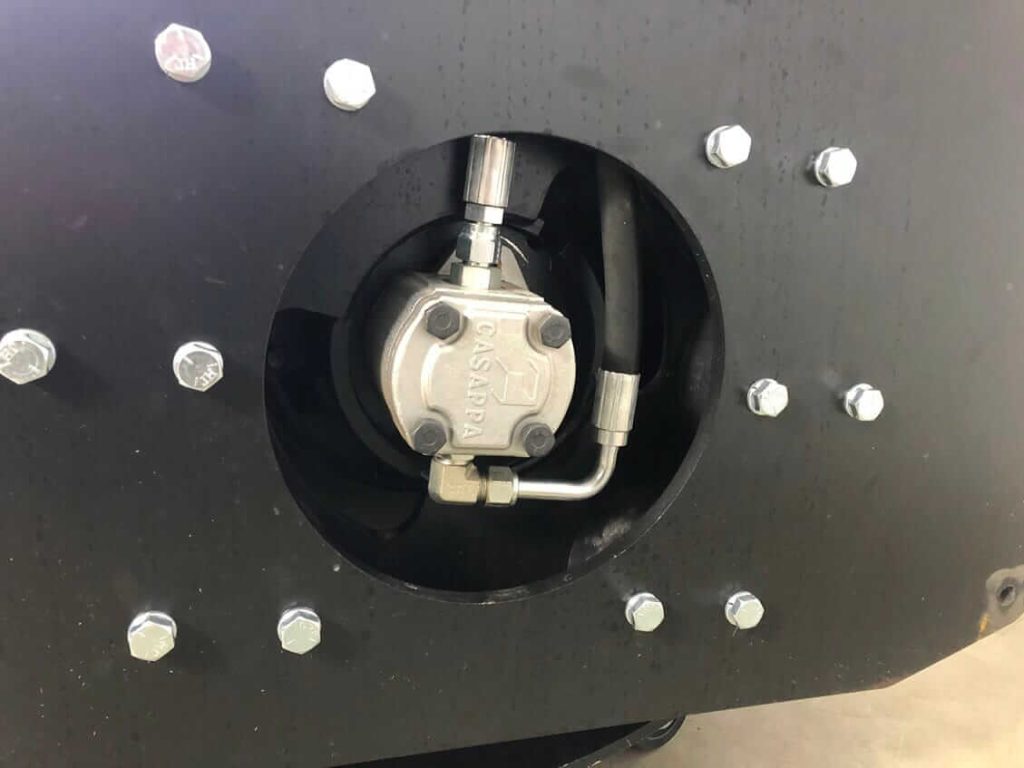

  • Hydraulically powered exciter system is lubricated by oil mist design
  • Exciter system design adds longevity & eliminates grease fittings
  • Integrated dozer blade levels and packs in one pass for improved efficiency
  • Adjustable drum scrapers prevent residue build up on drum

Options

  • Available in working widths of 73” and 84”
  • Available in padded (sheep’s foot) or smooth drum

Product Resources

Explore essential resources for your product, including a Detailed Parts Breakdown, comprehensive Owner’s Manual, and easy-to-access Warranty Claim Form. These tools are designed to help you get the most out of your purchase, offering quick and convenient support for maintenance, repairs, and warranty inquiries.

POPULAR QUESTIONS

Commonly Asked Questions

Why does this skid steer vibratory roller stay cooler than others?Prev

The answer lies in our patented technology built into the drum of the skid steer vibratory roller attachment. This innovative design reduces operating temperatures by up to 100 degrees during use and keeps your equipment running cooler and more efficiently, ultimately saving you time and money.

Is a padded vibratory roller the same as a sheepsfoot roller?Prev
Why is there a dozer blade on the front?Prev
Can the skid steer vibratory roller be used on wet or frozen ground?Prev
What is the ideal ground speed for using the skid steer vibratory roller attachment?Prev
Are there any specific safety concerns when operating a skid steer vibratory roller?Prev
