Trencher

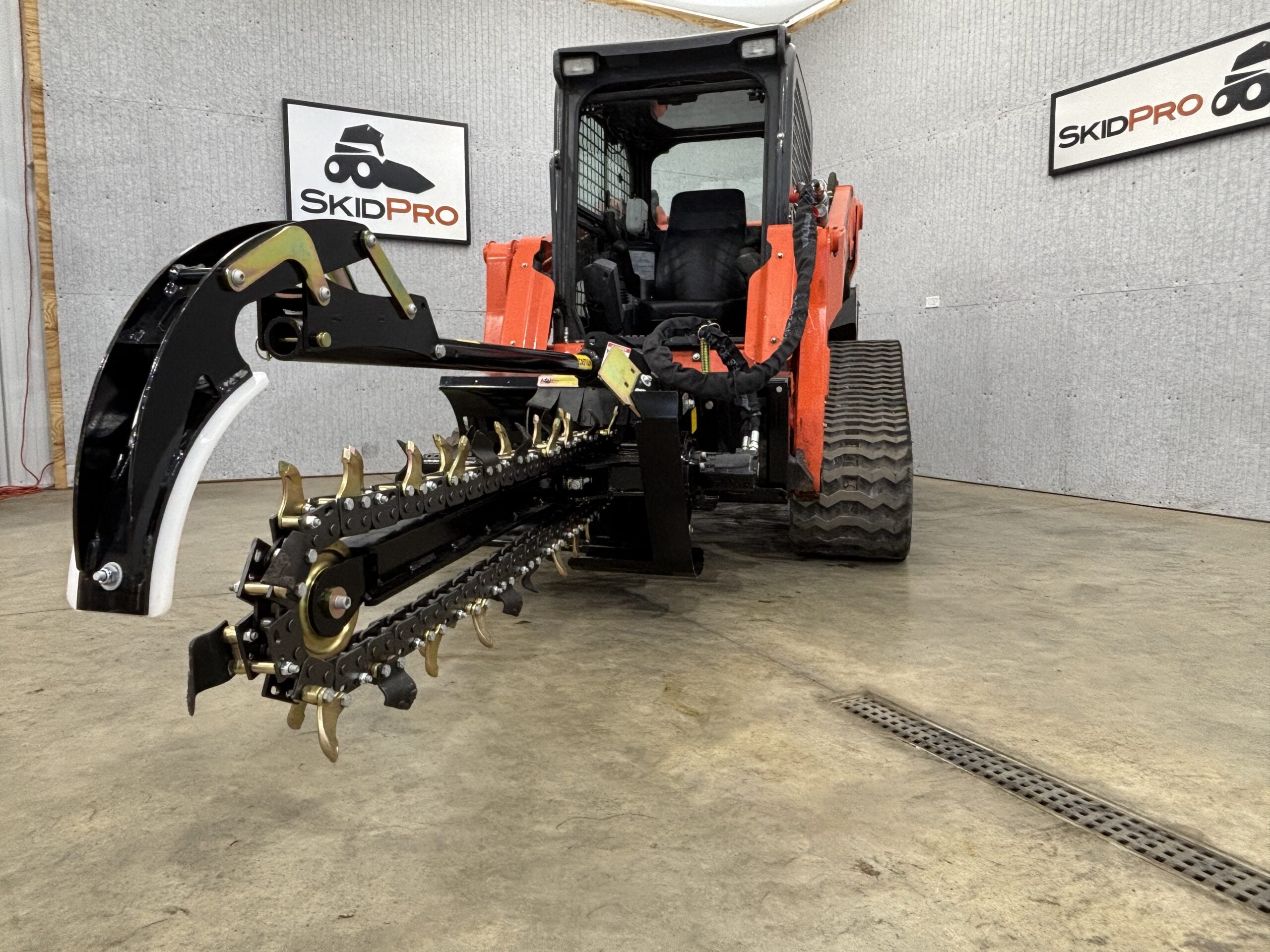

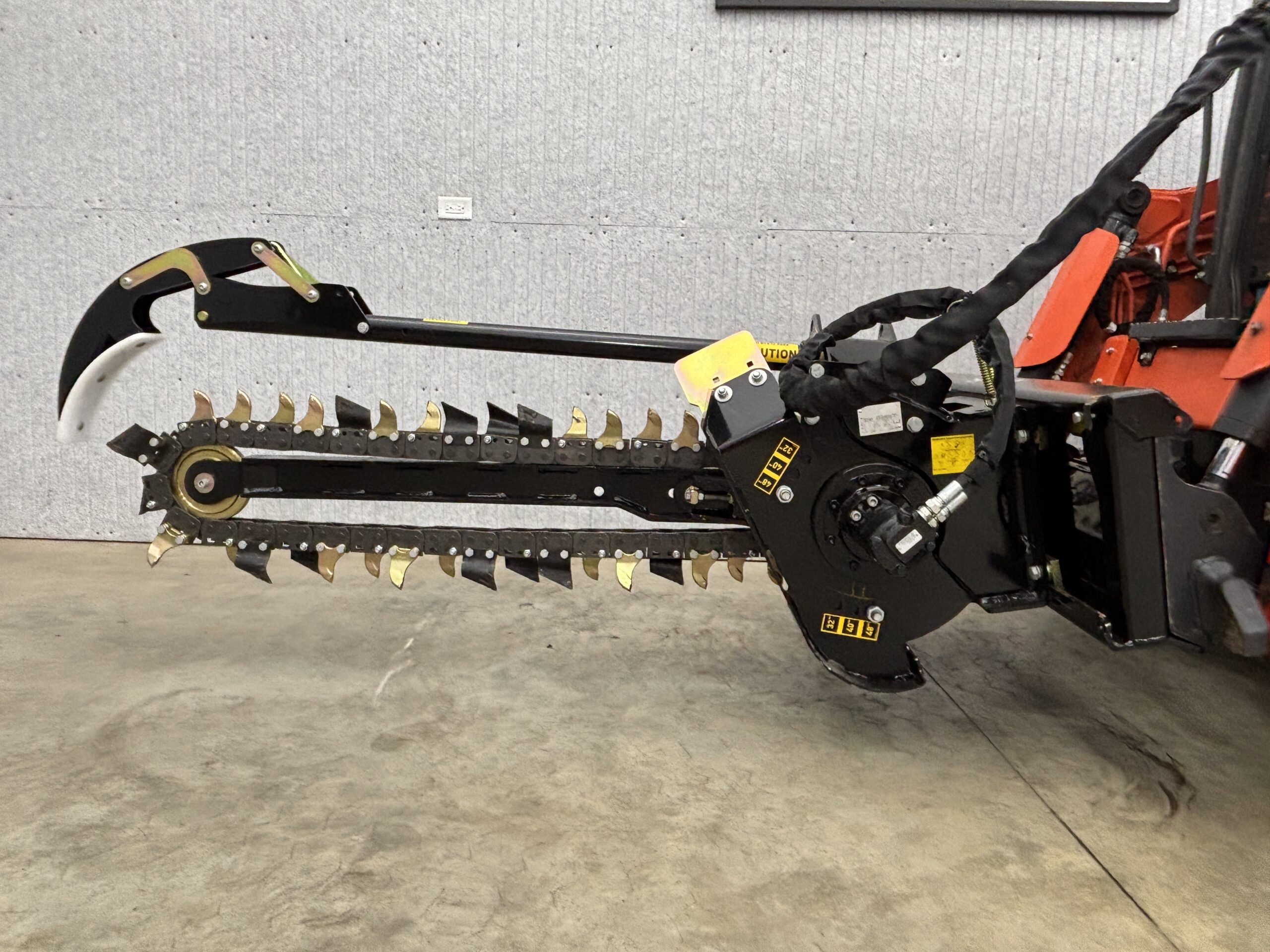

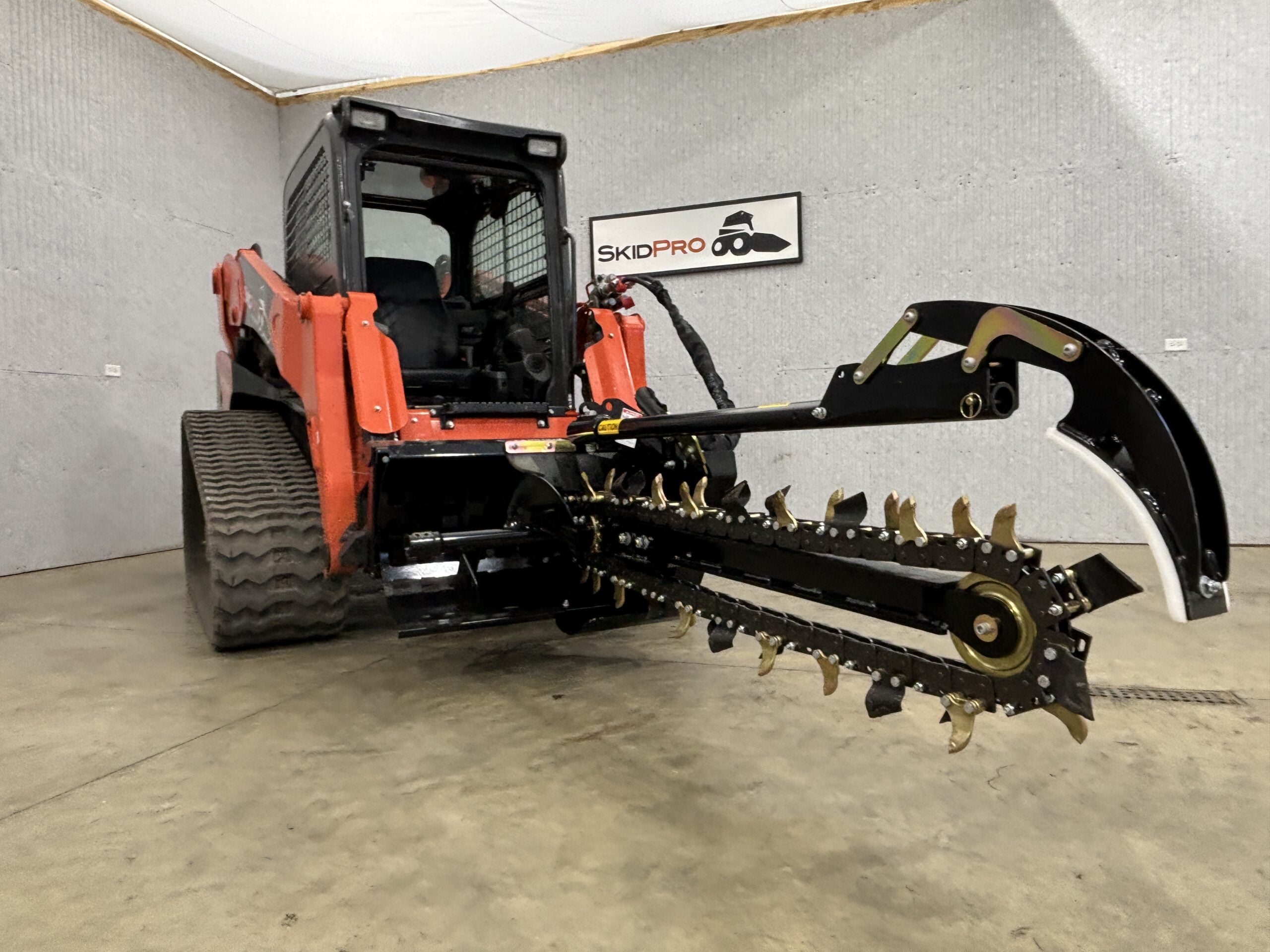

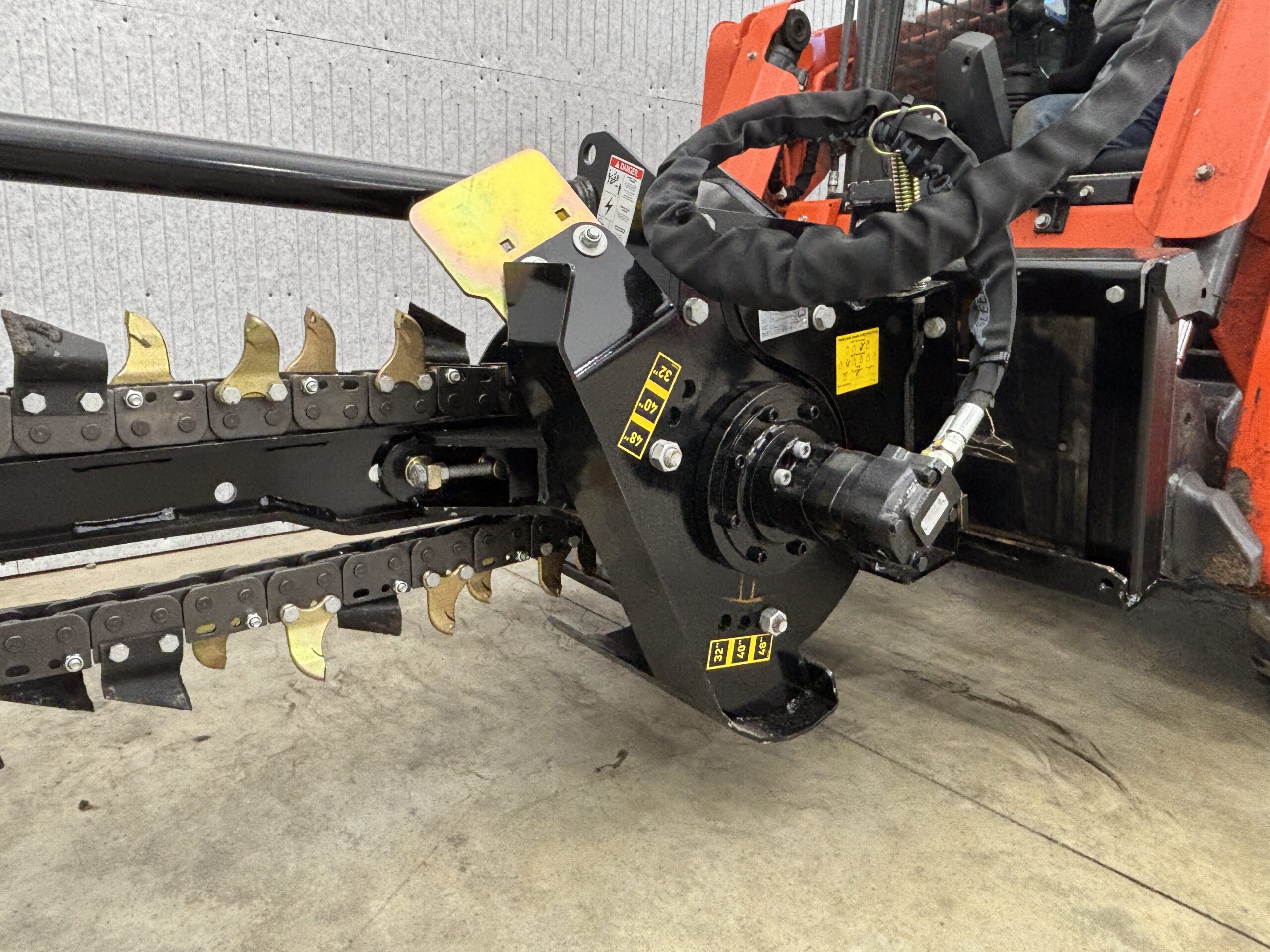

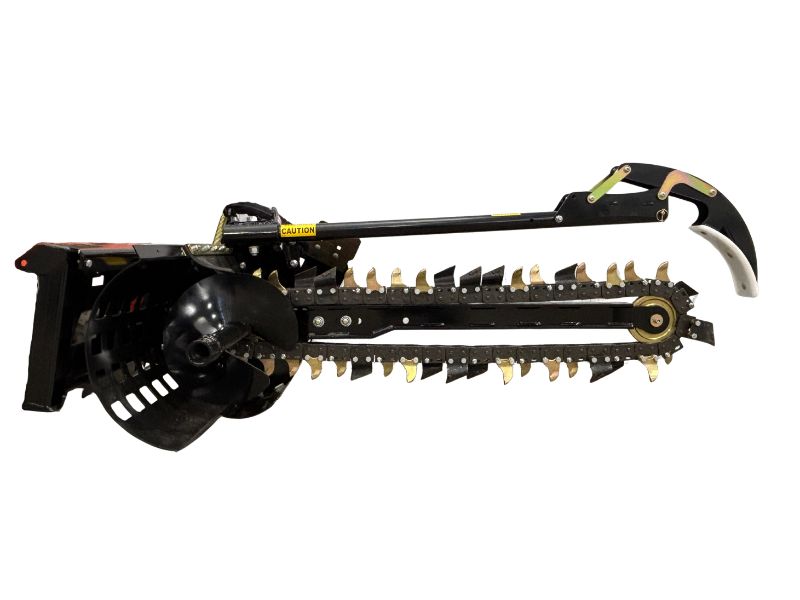

Skid Pro's skid steer trencher is designed for efficient trenching tasks. This trencher attachment for skid steer is engineered with a powerful planetary drive system, delivering exceptional torque for maximum productivity. The XL 26″ x 6″ skid shoe ensures precise depth and improved float for seamless operation. Featuring an aggressive 50/50 combo chain, the skid loader trencher cuts through tough terrains effortlessly. Designed for durability, it includes an Ultra HD nose bearing, oversized spoil auger, and auger baffle for fast dirt removal. A removable spoil auger and manual side shift adds to its versatility.
Trencher
- Planetary drive delivers high torque & maximum productivity
- XL 26” x 6” skid shoe gives better float & exact depth
- Aggressive 50/50 combo chain (tooth on every link)
- Ultra HD nose bearing for long lasting durability

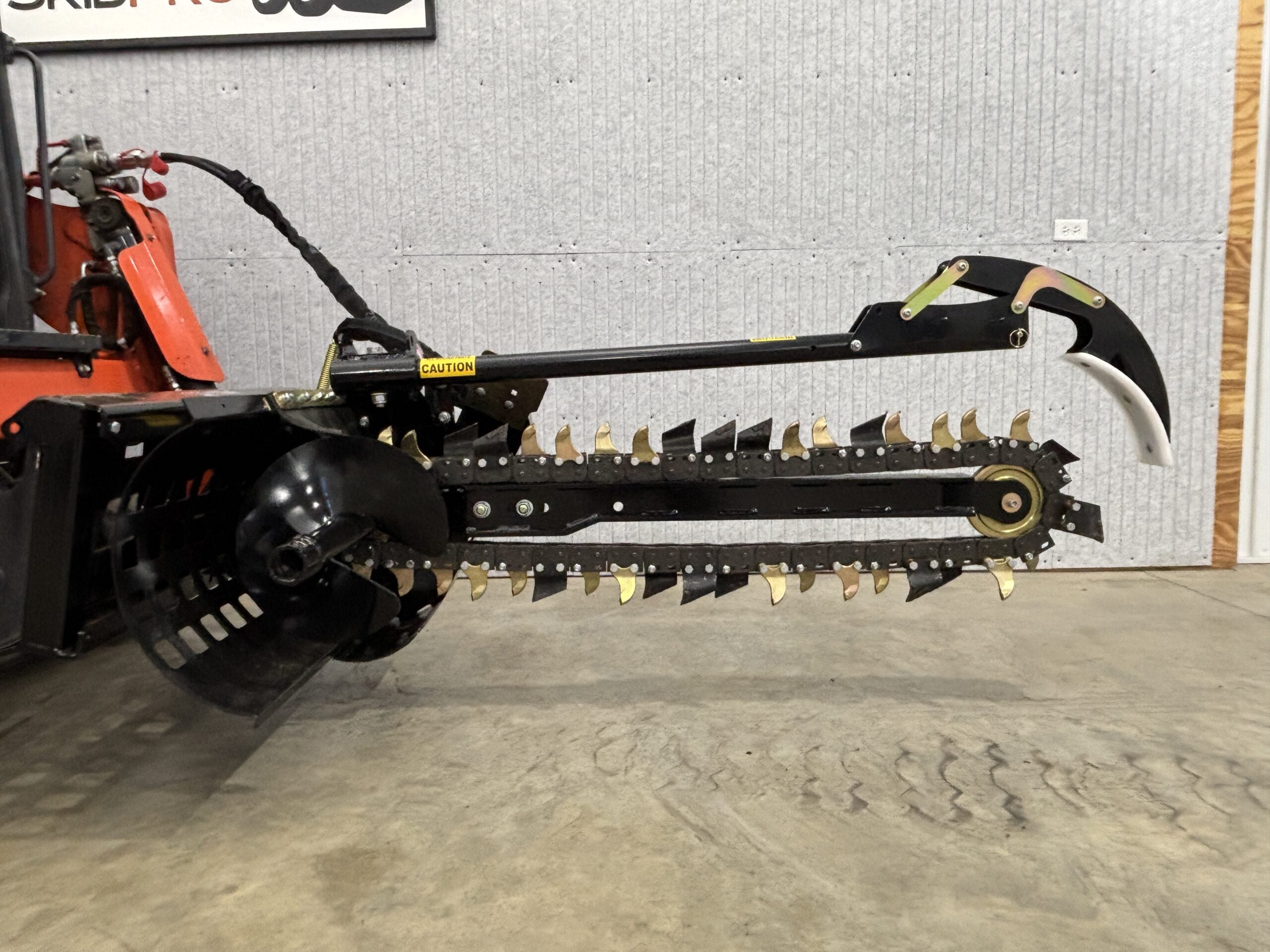

- Oversized spoil auger & auger baffle remove trench dirt fast
- Removable spoil auger & manual side shift standard
Trencher Quick Start Guide
Learn everything you need to know about operating the SKID PRO Trencher. This comprehensive guide covers attachment, adjustment, and safe operation for optimal performance.
Trencher
The Skid Pro Difference
Max Torque

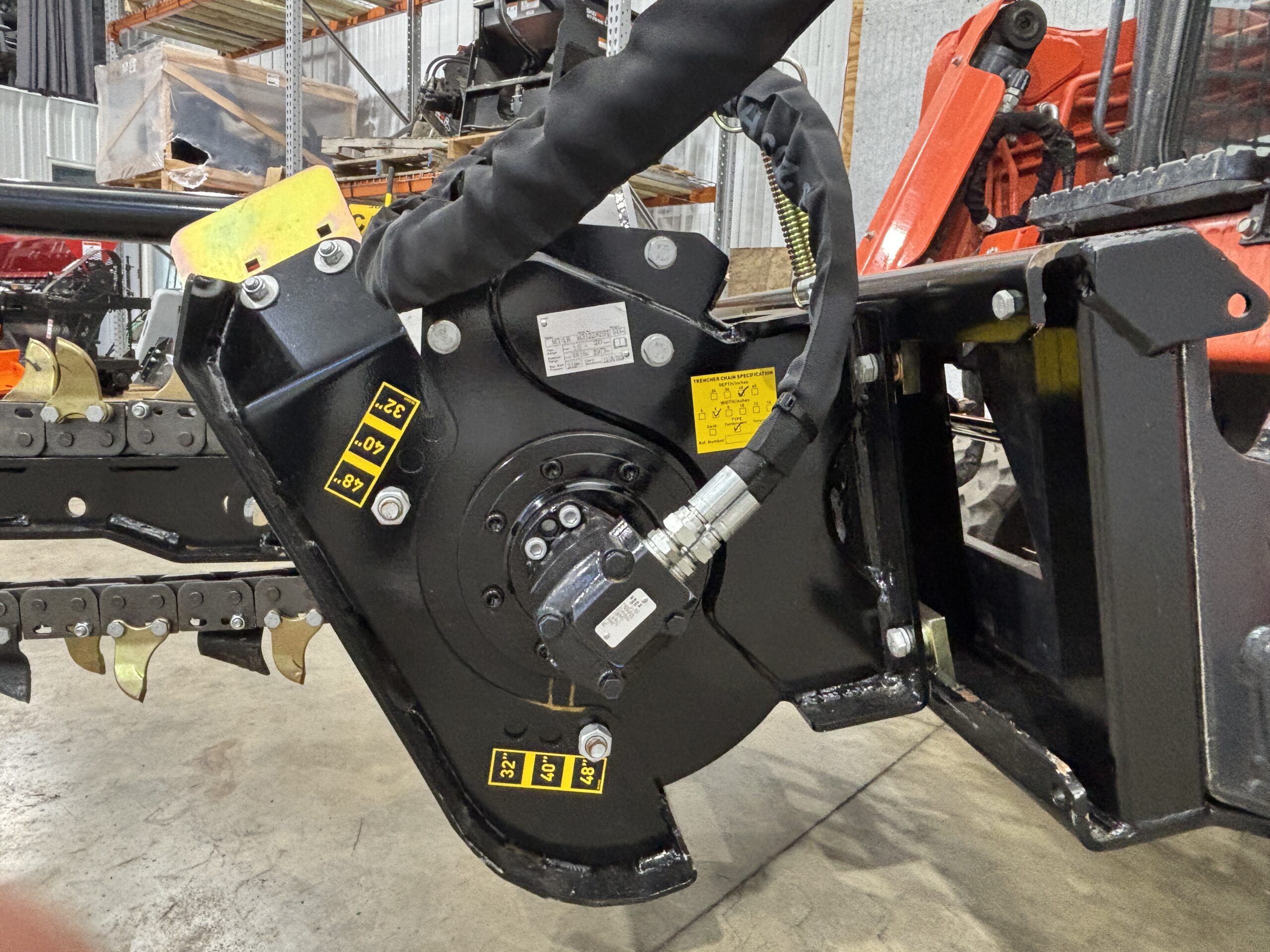

Planetary drive system for max torque in the toughest digging conditions
Adjustable Skid Shoe

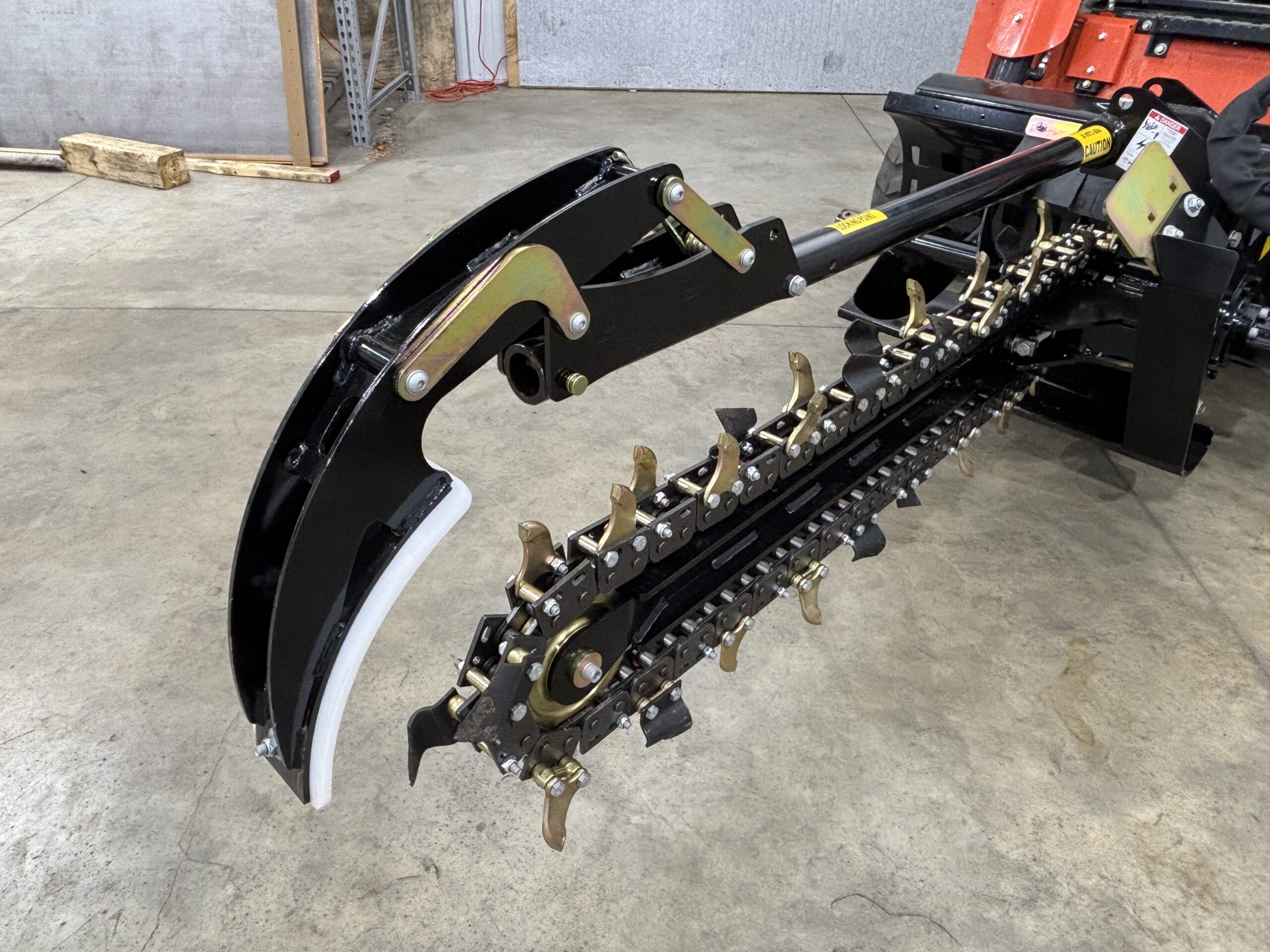

Adjustable oversized skid / depth shoe, allows operator to maintain a consistent depth
Ultra-Clean Trench

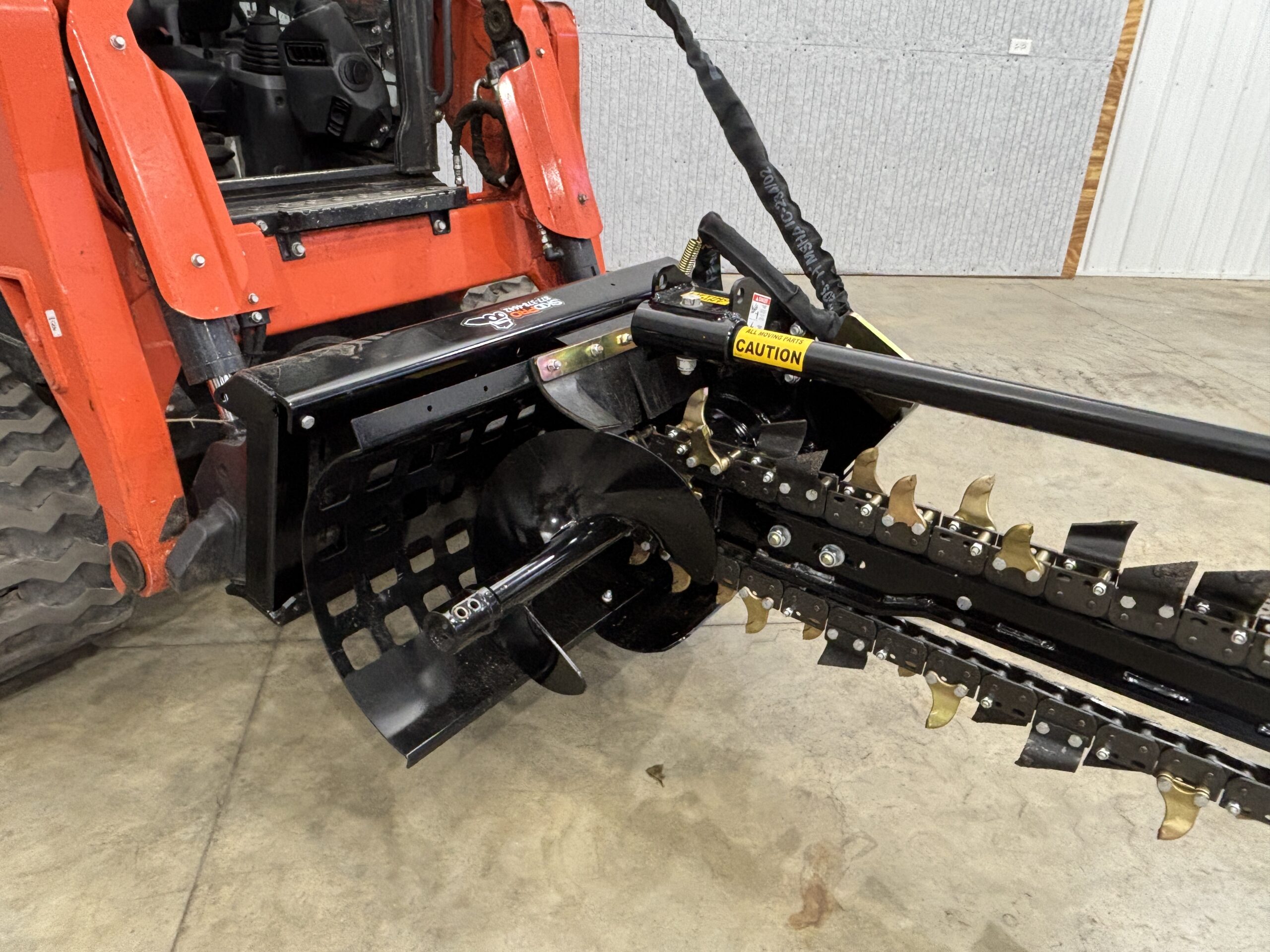

Built in HD crumber & aggressive soil auger make for an ultra clean trench and consistent placement of excavated dirt
Manual Side Shift Frame

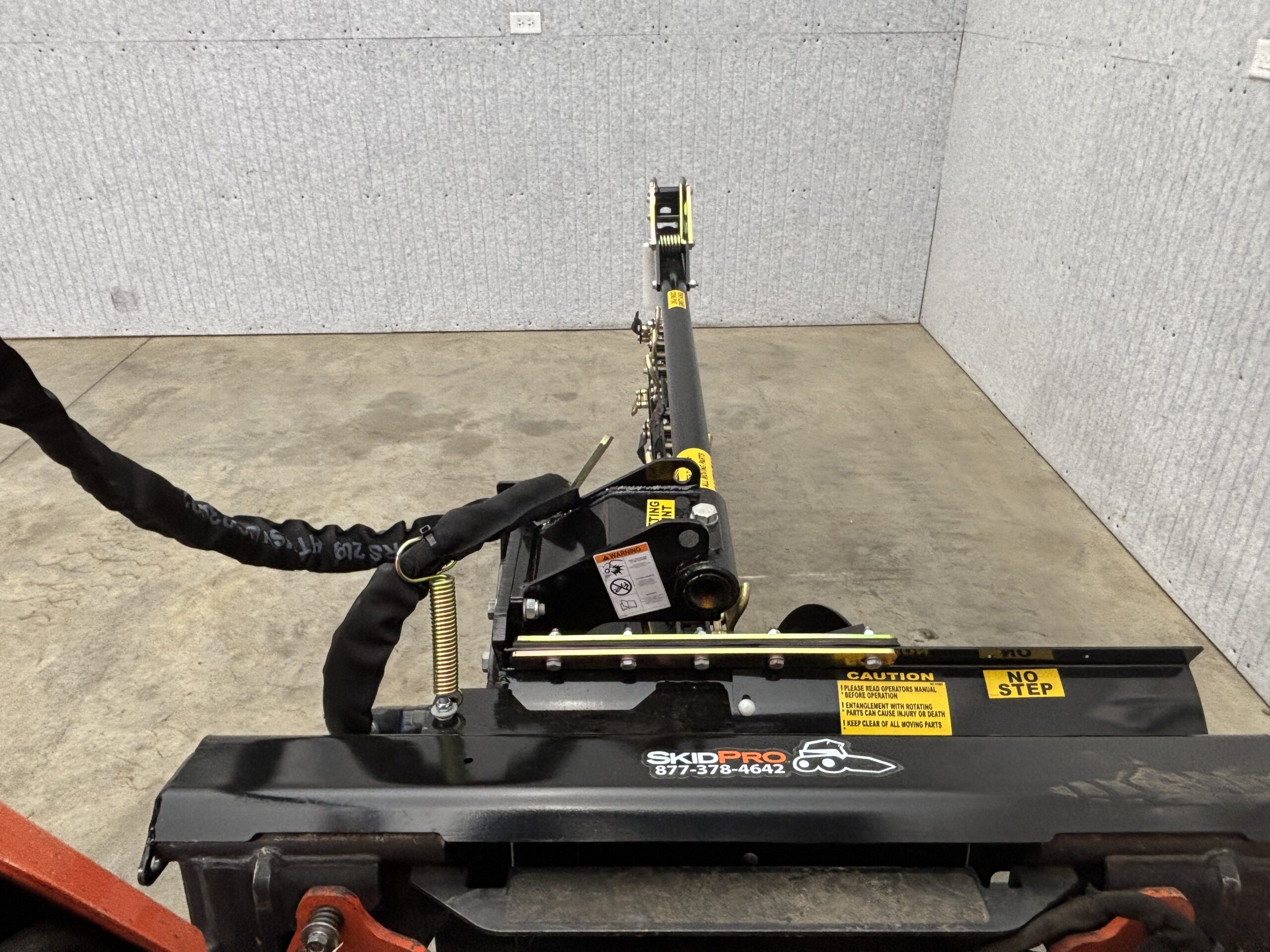

Manual side shift frame allows to quickly and easily trench close to buildings and other obstacles
Optimal Performance
50/50 Mix of tungsten “hammer” teeth & standard scoop teeth for optimal performance in harsh soils
Low Maintenance

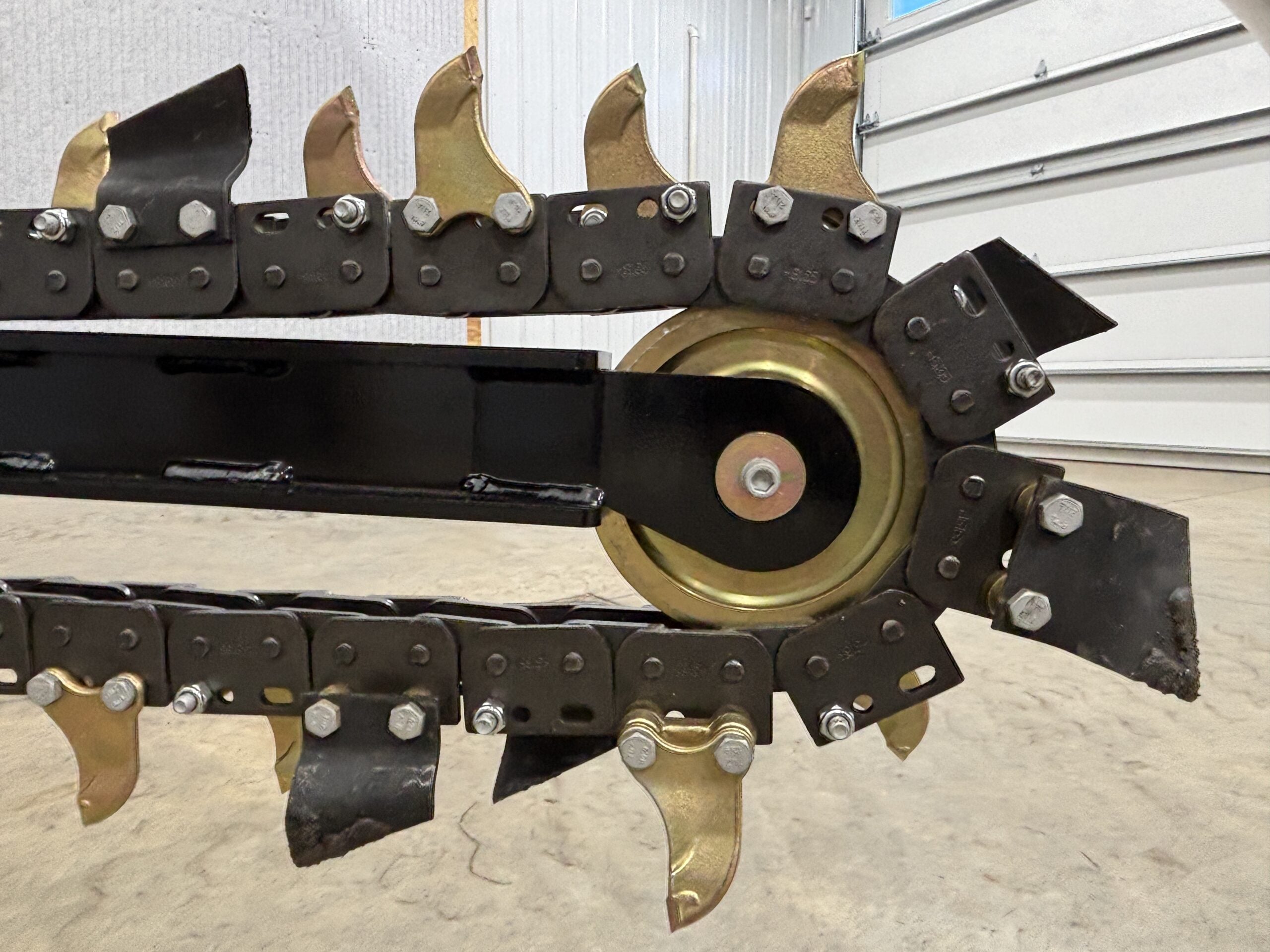

Ultra HD nose roller bearing w/ MT sprocket for maximum durability and low maintenance
Features
Industrial Design
- 24 month warranty
- Industrial strength chain links & hardware
Operator Ease
- Easy access greaseable points
- Quick & easy chain tensioning system
Options
- 3 Settings allow for a consistent digging depth of 24”, 30” & 36” on 3’ boom, and 32” 40” & 48” on the 4’ boom
- Available in 3’ and 4’ boom depths & high-flow models available
- Available in 4”, 6” & 8” widths
- Other tooth configurations available
Specifications
Model | 24″ | 36″ | 48″ | 36″ & 48″ High Flow |
Max Trench Depth | 24″ | 36″ | 48″ | 36″/48″ |
Trench Width | 4”/6”/8” | 4”/6”/8” | 4”/6”/8” | 6”/8”/10”/12” |
Tungsten/Rock (Combo Chain) | Std – 50/50 Mix | Std – 50/50 Mix | Std – 50/50 Mix | Std – 50/50 Mix |
Adjustable Skid Shoe Depths | 12″/18″24″ | 24”/30”/36” | 32”/40”/48” | 24”/30”/36”/32”/40”/48” |
Planetary Drive | Std/Hi Torque | |||
Drive Sprocket | Tempered Steel | |||
Front Nose Bearing | XL Greaseable | |||
Chain Tensioner | Std/Adjustable | |||
Side Shift (Standard) | Yes/Std/Manual | |||
HD Crumber | Std/XL Poly Face | |||
Hydraulic Flow | 15-28 gpm | 15-28 gpm | 20-28 gpm | 28-40 gpm |
Weight | 760 lbs. | 790 lbs. | 840 lbs. | 1,142 lbs. |
Warranty | SkidPro Standard 2-Year Warranty W/ 3-Year Warranty on Planetary Gearbox |
Related Products
PRICING
Check Out Our Price List
"*" indicates required fields
Commonly Asked Questions
A trencher attachment for skid steer is a tool mounted to a skid steer, using its hydraulic power to efficiently trench through soil. It is widely used for digging trenches for water, gas, electrical lines, and pipes. This versatile skid loader trencher fits most skid steer models, making it popular for residential and rural construction projects. We offer various skid steer trenchers for sale to suit your needs.
To break in your Skid Pro Trencher, run it out of the ground for 10 minutes, tighten the chain, and repeat this process. Then, run it in the ground for 10 minutes and tighten the chain again. After this, your skid steer trencher is ready for full use.
Using a skid loader trencher in rock or slate soil is not recommended. However, some customers have reported success when operating slowly, though this should only be attempted at your own risk. The Skid Pro Trencher features a robust digging chain and durable carbide teeth, designed to tackle tough conditions, including rocky and clay soils, with ease. While it’s built for durability and performance, always exercise caution when working in challenging terrains to ensure safe and efficient operation.
Yes, our skid steer trencher has a manual shifting function, allowing you to offset the digging area for added flexibility on the job site.
Regular maintenance includes checking hydraulic fluid levels, tightening bolts and connections, and inspecting the skid loader trencher chain and teeth for wear. For detailed guidelines, refer to the user manual or contact our support team.
The Skid Pro Trencher is offered in trench widths between 4 to 8 inches and depths up to 48 inches, depending on the chain configuration. Select the right setup for your specific project needs.
Although primarily designed for trenching, some users have used it to create drainage ditches or shallow foundations. Keep in mind that such uses may reduce efficiency and increase wear on the equipment.
Most skid steer trenchers are highly versatile and compatible with various skid steer models. However, compatibility may depend on your skid steer's hydraulic flow rate and attachment mounting system. Ensure that your skid steer meets the trencher's specifications for optimal performance.
When choosing a skid steer trencher, consider factors such as trenching depth and width requirements, soil type, the hydraulic flow capacity of your skid steer, and the durability of the trencher's chain and teeth.
