Skid Steer Tree Spade

Additional information

Tree Size 3"-4"
Root Ball Diameter 30"-40"
Number of Blades 3
Width 84"-90"
Length 81"-84"
Weight (lbs.) 1550-1934 Lbs

Tree Spade

Model – SP330/SP440 | Tree Size – 3″/4” Evergreens & 2.5″/3” Hardwood | Root Ball Diameter – 30″/40”

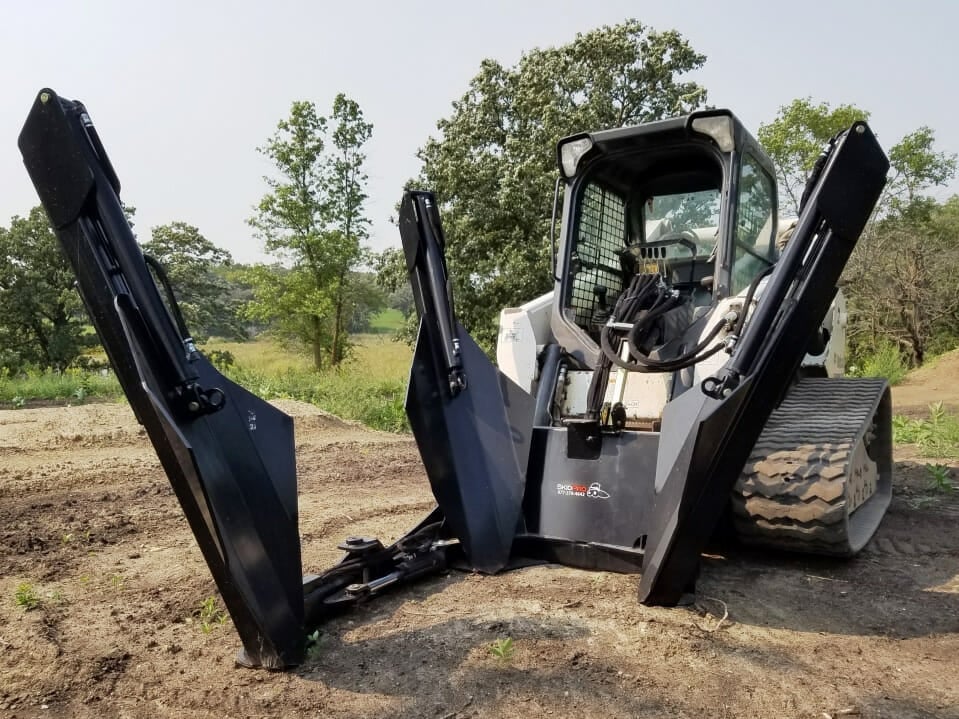

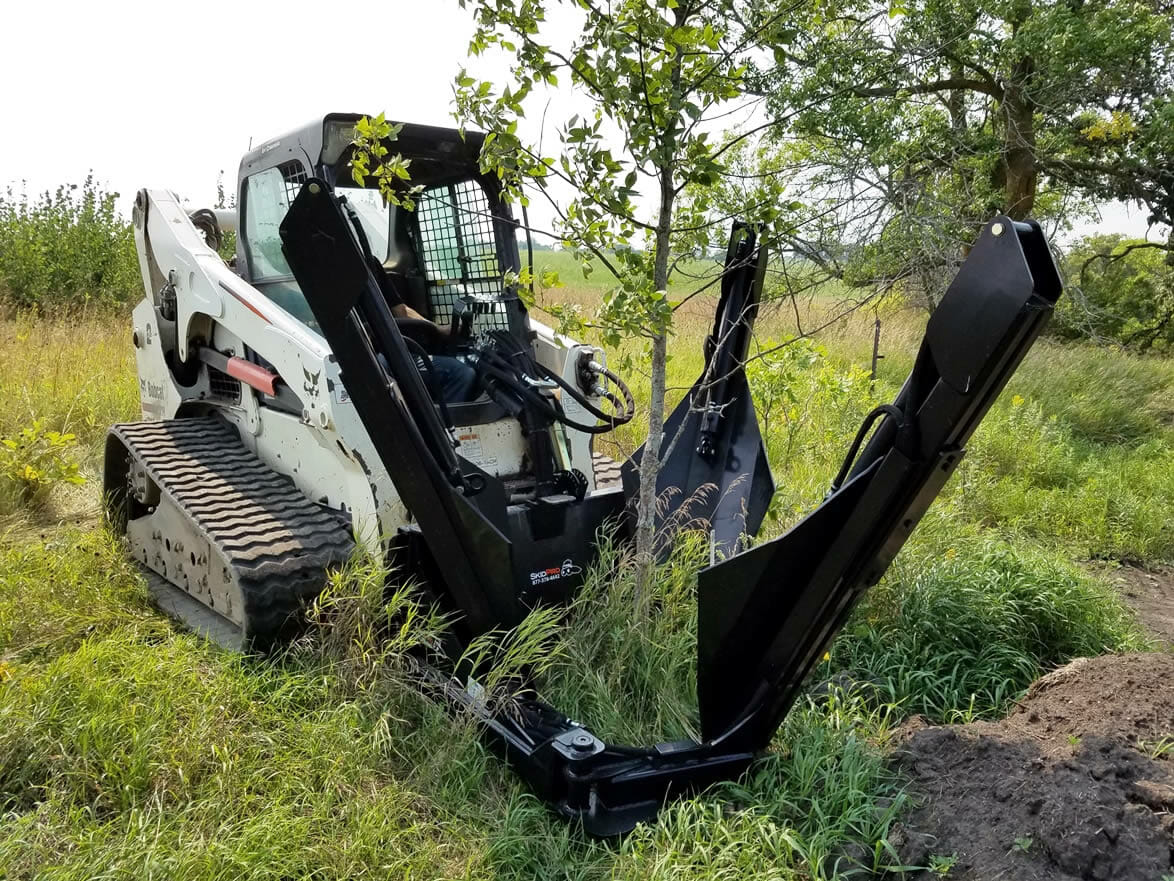

Skid Pro’s skid steer tree spade is an effective solution for efficient and precise tree transplantation. Our skid steer tree spade features a heavy-duty design and is built tough enough for heavy commercial use. Equipped with four truncated blades and powered by 70″ industrial cylinders, it delivers unmatched precision and durability. Its hydraulic hinge swing blade opens wide for effortless setup, while the 40″ root ball capacity allows for seamless relocation of trees with trunks up to 4″. With multiple control options and a powder-coated finish for enhanced durability, this attachment is perfect for commercial and residential projects.

2 Year Warranty

Protection Plan Options

1 Years Extended Protection Plan
2 Years Extended Protection Plan

Tree Spade

  • Heavy duty design for commercial or residential use
  • 4 truncated blades with 70” industrial powered cylinders
  • Hydraulic hinge swing blade opens wide for easy set up
  • 40” root ball moves trees with trunks up to 4”
  • Multiple options to control blade & swing cylinder
  • Durable powder coat finish gives better protection

The Skid Pro Difference

Tree Spade
Extra Heavy-Duty Design

Extra Heavy-Duty Design

Extra heavy-duty design is built tough enough for heavy commercial use

Tree Spade
All Steel Blades

All Steel Blades

All steel, semi truncated blades are designed for maximum penetration

Mini Tree Spade
Swing Open Blade Design

Swing Open Blade Design

Swing open blade design allows for easier positioning & visibility for operator

Tree Spade
Reduce Damage of Branches

Reduce Damage of Branches

Swing open blade design reduces damage of lower branches on trees

Mini Tree Spade

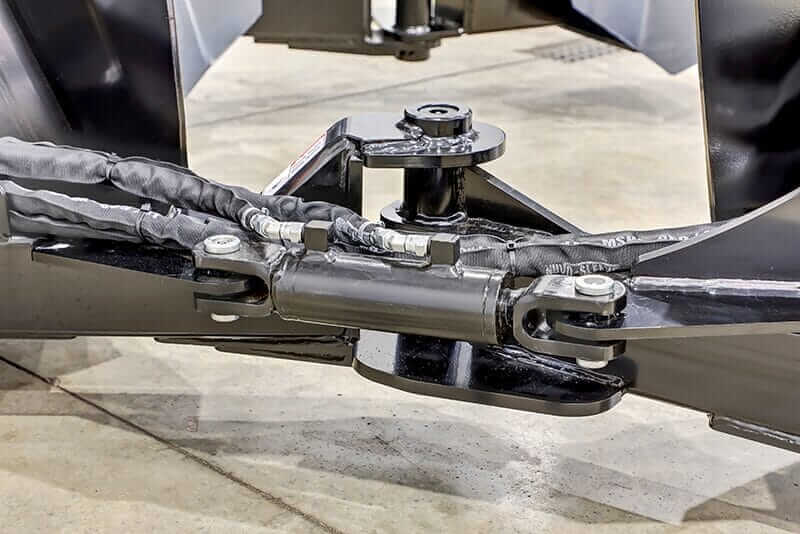

Industrial Hydraulic Cylinders

Industrial Hydraulic Cylinders

Industrial hydraulic cylinders with 70” stroke delivers power and performance

Tree Spade
Built To Last A Lifetime

Built To Last A Lifetime

All-steel spade blade slides are robust, durable, and built to last a lifetime

Mini Tree Spade
Blade Towers

Blade Towers

Blade towers are heavily gusseted to withstand force and power of cylinders

Mini Tree Spade

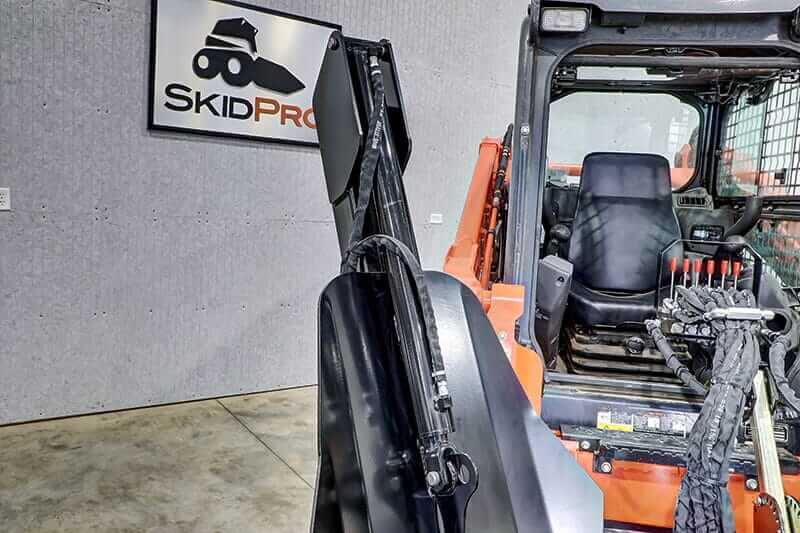

Swing Arm Controls

Swing Arm Controls

Multitude of blade & swing arm controls gives added convenience to operator

Tree Spade
Extra Heavy-Duty Design

Extra Heavy-Duty Design

Extra heavy-duty design is built tough enough for heavy commercial use

Tree Spade
All Steel Blades

All Steel Blades

All steel, semi truncated blades are designed for maximum penetration

Mini Tree Spade
Swing Open Blade Design

Swing Open Blade Design

Swing open blade design allows for easier positioning & visibility for operator

Tree Spade
Reduce Damage of Branches

Reduce Damage of Branches

Swing open blade design reduces damage of lower branches on trees

Mini Tree Spade
Industrial Hydraulic Cylinders

Industrial Hydraulic Cylinders

Industrial hydraulic cylinders with 70” stroke delivers power and performance

Tree Spade
Built To Last A Lifetime

Built To Last A Lifetime

All-steel spade blade slides are robust, durable, and built to last a lifetime

Mini Tree Spade
Blade Towers

Blade Towers

Blade towers are heavily gusseted to withstand force and power of cylinders

Mini Tree Spade
Swing Arm Controls

Swing Arm Controls

Multitude of blade & swing arm controls gives added convenience to operator

Specifications

Model SP330 SP440
Tree Size (Evergreen) 3″ 4″
Tree Size (Hardwood) 2.5″ 3″
Root Ball Diameter 30″ 40″
Root Ball Depth 23″ 30″
Opening (Width) 60″ 52″
Blade Angle (Degrees) 25° 25°
Number of Blades 3 4
Blade Thickness 3/8″ 1/4″
Cylinders 70” Industrial 70” Industrial
Cylinder Bore/Rod 3”/1.50”/31” 3”/1.50”/31”
Slides Steel Steel
Blade Truncation Semi Full
Towers Swing Hinge Yes Yes
Width 90” 84”
Length 81” 84”
Weight (lbs.) 1,550 1,934
Weight with Tree (lbs.) 2,050 3,134

Features

Industrial Design

  • Gusseted, over-built main frame runs 1,550 lbs. empty, 2,050 lbs. with tree root ball
  • Ultra strong & reinforced main frame and attach plate/tree spade frame interface
  • Semi truncated blades provide narrower bottom cut to better secure the root ball
  • Utilitarian blade design provides greater soil penetration in clay and tough conditions
  • Truncated blades also provide better compression to hold sandier soil root balls
  • Spring bushings on all pivot points made of high grade chrome-vanadium spring steel
  • Greaseable pins are zinc-plated to prevent corrosion and allow for smoother operation
  • Strong, durable powder coat paint finish helps ensure product look & quality

Operator Ease

  • Extra-large, grip-tape step gives operator easier cab entry and exit and added safety
  • Steel lifting eye located on each blade for easier storage and transit of tree spade
  • Recommended horsepower for skid steers is 60 HP for SP330 and 80 HP for SP440
  • Recommended rated operating capacity of 1,500 lbs. on SP330, and 2,000 lbs. on SP440
  • Transplanting trees is a skill, for a shortcut to best methods, see unit’s owner’s manual

Options

  • SP440 – 4 blade, dual hydraulic swing, 40” root ball model available for 4” trunked trees
  • Multitude of spade control options available
  • Tractor 3 point and tractor loader retro kits available as an option

Product Resources

Explore essential resources for your product, including a Detailed Parts Breakdown, comprehensive Owner’s Manual, and easy-to-access Warranty Claim Form. These tools are designed to help you get the most out of your purchase, offering quick and convenient support for maintenance, repairs, and warranty inquiries.

Playlist 2 Videos

Skid Pro Tree Spade Walkthrough: 3-Blade vs 4-Blade Models

TEST DRIVE: Skid Steer Tree Spade - How to Transplant Trees Like a Pro - Skid Pro Attachments

POPULAR QUESTIONS

Commonly Asked Questions

What is a skid steer tree spade?Prev

A tree spade attachment for skid steer is a versatile tool designed to efficiently dig, move, and transplant trees. The Skid Pro tree spade features three steel blades that cut through the soil, creating a root ball around the tree trunk. Its hydraulic hinge swing blade opens wide for easy setup and minimizes damage to lower branches. With options to control the blade and swing cylinder, and a durable powder coat finish for protection, this attachment is perfect for landscaping or nursery projects. It is ideal for residential and commercial use.

What are the benefits of a skid steer tree spade?Prev
What tree sizes can be transplanted using a skid steer tree spade?Prev
How to select the best hydraulic tree spade for your skid loader?Prev
What are the available blade configurations for a skid loader tree spade?Prev
