Hydraulic Snow Blade Pusher Combo

Additional information

Overall Blade Width (Inches) 124 – 160
Blade Height (Inches) 31
Blade Angle (Degrees) +/- 30
Wing Angle (Degrees) +/- 60
Moldboard Thickness (Inches) 0.19
Cutting Edge (Inches) 5/8 x 8 Bolt-on
Approximate Weight (Pounds) 1590lbs – 1770 lbs

Hydraulic Snow Blade

Models – HSBP124/136/148160 | 124–160” Blade | 62–98” Moldboard | 38” Height

Skid Pro’s hydraulic snow blade pusher combo for skid steer is our most unique, versatile, and efficient commercial snow removal attachment which has a snow blade and pusher in one attachment. Featuring adjustable angles and hydraulic controls, this snow push blade provides superior control for clearing snow quickly and efficiently, whether for commercial parking lots, roads, or large driveways. The blade’s durable construction ensures long-lasting performance, while its ability to push, scrape, and angle makes it perfect for handling varying snow depths and terrain. Enhance your snow removal capabilities with the Skid Pro hydraulic snow blade pusher combo for a more productive winter season.

2 Year Warranty

Protection Plan Options

1 Years Extended Protection Plan
2 Years Extended Protection Plan

Hydraulic Snow Blade Pusher Combo

  • Incredibly unique & effective snow attachment
  • Snow blade & snow pusher in one attachment
  • Unbelievable performance & productivity
  • Huge time saver for commercial snow removal
  • Nearly infinite positioning of wings & moldboard
  • Floating frame follows contour of the ground
  • Three, quick acting trip edges for added safety
  • Cross over relief protects blade & operator
  • Available in 124”, 136”, 148”, & 160” widths

The Skid Pro Difference

hydraulic-snow-blade-12

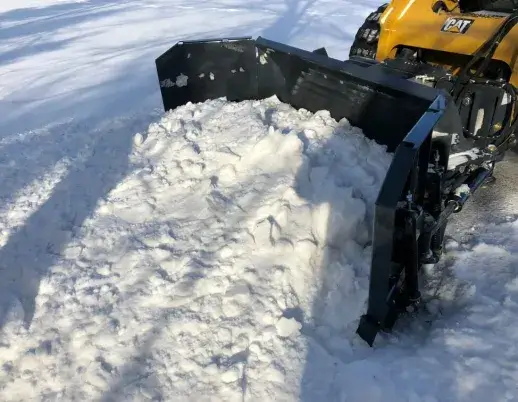

Blade Angles

Blade Angles

Blade angles 30 degrees using machine’s main hydraulics

hydraulic-snow-blade-09

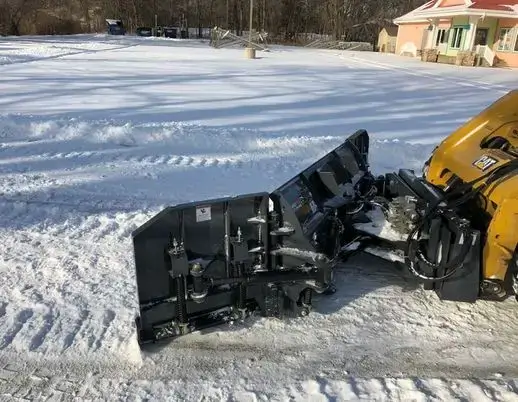

Infinite Control

Infinite Control

Wings operate independent of blade for infinite control

hydraulic-snow-blade-10
Alternate In Seconds

Alternate In Seconds

Alternate between snow pusher & blade on-the-go in seconds

hydraulic-snow-blade-07

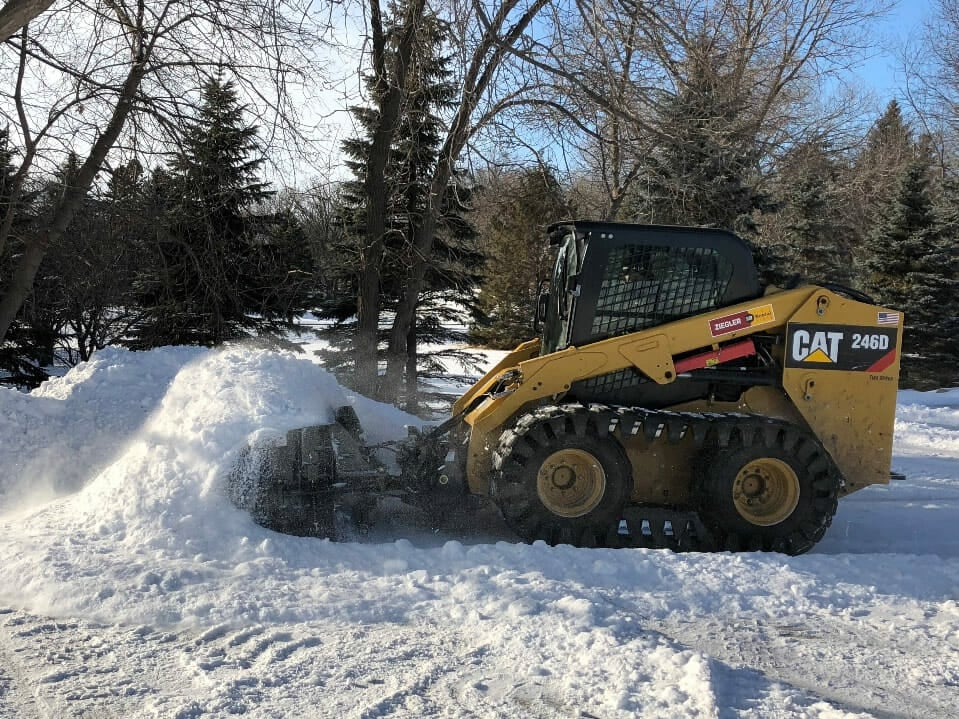

Floating Frame

Floating Frame

Floating frame allows blade to follow contour of the ground

hydraulic-snow-blade-08

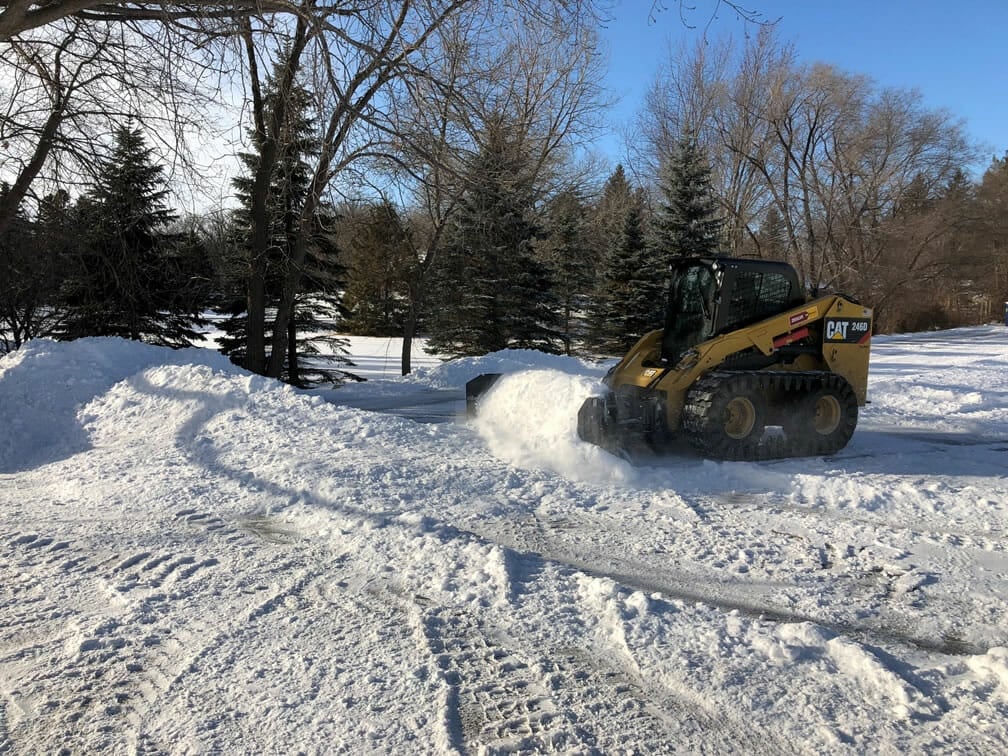

Aggressive Scrapping

Aggressive Scrapping

While still allowing full down pressure to aggressively scrape

hydraulic-snow-blade-13

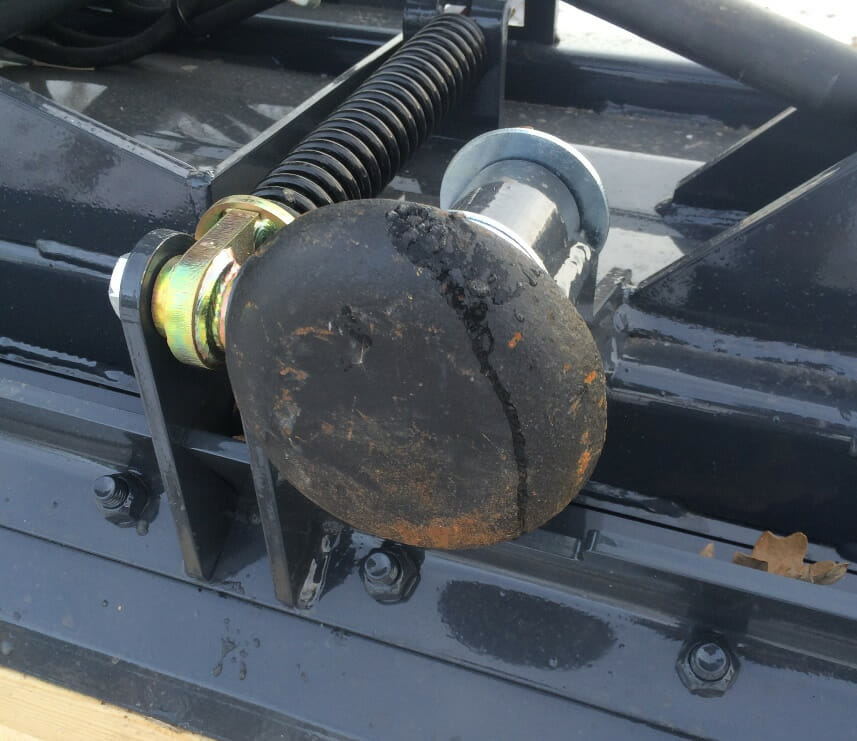

Cast Iron Skid Shoes

Cast Iron Skid Shoes

Adjustable cast iron skid shoes give max float & durability

hydraulic-snow-blade-22

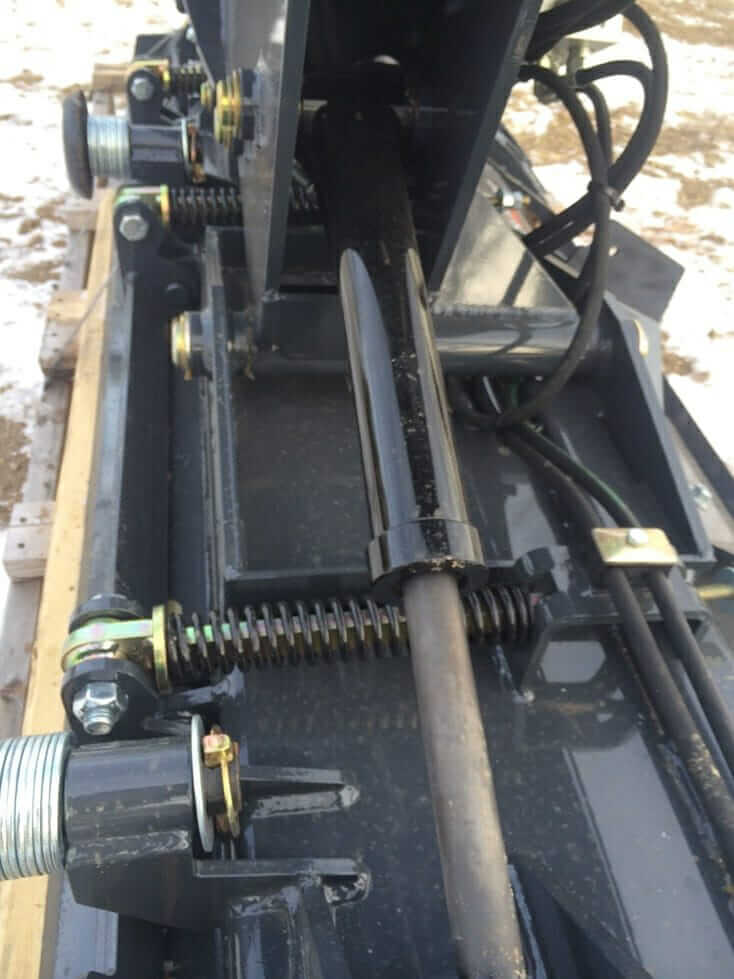

Hydraulic Crossover Reliefs

Hydraulic Crossover Reliefs

Hydraulic crossover reliefs absorb shock & protect blade

hydraulic-snow-blade-20
Relief Angles

Relief Angles

Relief allows unit to angle if a curb or object is struck

hydraulic-snow-blade-26
3 Cutting Edge Sections

3 Cutting Edge Sections

3 cutting edge sections with individual trip edge springs

hydraulic-snow-blade-28

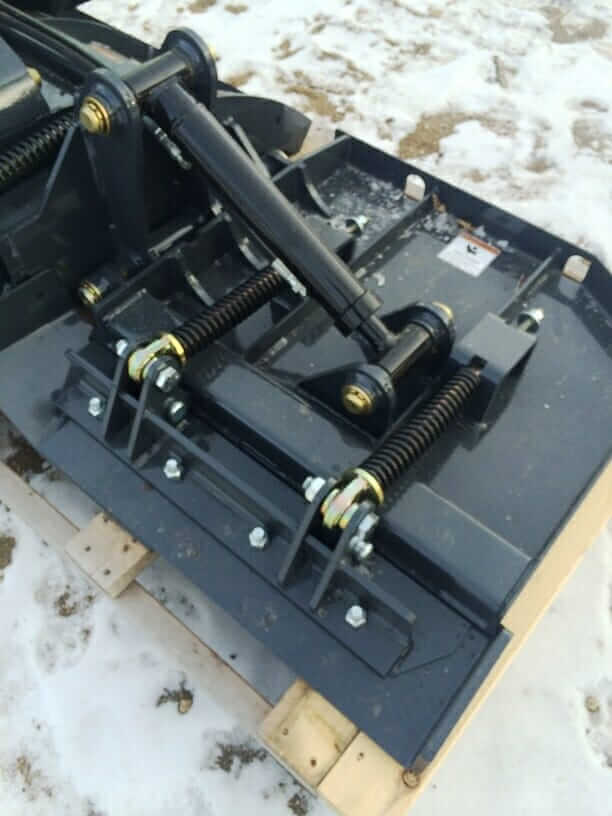

4 Pin Plates

4 Pin Plates

4 pin, quick-tach plate gives 5° vertical and 4° side float

hydraulic-snow-blade-12
Blade Angles

Blade Angles

Blade angles 30 degrees using machine’s main hydraulics

hydraulic-snow-blade-09
Infinite Control

Infinite Control

Wings operate independent of blade for infinite control

hydraulic-snow-blade-10
Alternate In Seconds

Alternate In Seconds

Alternate between snow pusher & blade on-the-go in seconds

hydraulic-snow-blade-07
Floating Frame

Floating Frame

Floating frame allows blade to follow contour of the ground

hydraulic-snow-blade-08
Aggressive Scrapping

Aggressive Scrapping

While still allowing full down pressure to aggressively scrape

hydraulic-snow-blade-13
Cast Iron Skid Shoes

Cast Iron Skid Shoes

Adjustable cast iron skid shoes give max float & durability

hydraulic-snow-blade-22
Hydraulic Crossover Reliefs

Hydraulic Crossover Reliefs

Hydraulic crossover reliefs absorb shock & protect blade

hydraulic-snow-blade-20
Relief Angles

Relief Angles

Relief allows unit to angle if a curb or object is struck

hydraulic-snow-blade-26
3 Cutting Edge Sections

3 Cutting Edge Sections

3 cutting edge sections with individual trip edge springs

hydraulic-snow-blade-28
4 Pin Plates

4 Pin Plates

4 pin, quick-tach plate gives 5° vertical and 4° side float

Specifications

MODEL HSBP124 HSBP136 HSBP148 HSBP160
Overall Blade Width (Inches) 124 136 148 160
Moldboard Width (Inches) 62 74 86 98
Blade Height (Inches) 38
Blade Angle (Degrees) +/- 30
Wing Angle (Degrees) +/- 60
Width at Full Angle Both Wings Open (Inches) 107 117 128 138
Width at Full Angle One Wing Open (Inches) 82 92 102 112
Width at Full Scoop (Inches) 92 104 116 128
Moldboard Thickness (Inches) 0.19
Cutting Edge (Inches) 3/4 x 8 Bolt-on
Wing Cutting Edge (Inches) 1/2 x 6 High Tensile Steel, Bolt-on
Blade Oscillation (Degrees) +/- 4
Float Link Angle (Degrees) +/- 5
Approximate Weight (Pounds) 1720 1790 1840 1920
Recommended Loader Capacity Greater than 1800 pounds

Features

Industrial Design

  • Extra heavy duty steel moldboard built to withstand demanding commercial snow use
  • Industrial cylinders utilize special corrosion-resistance rods that reduce rust and pitting
  • Built with heavier cylinders, thicker steel blade, XL cutting edges, and more structural support
  • Middle section comes standard with 5/8” x 8” reversible, replaceable bolt-on wear edge
  • Design allows cutting edges that deliver 5 ½” of total wear before needing replacement

Operator Ease

  • Moldboard controlled by machine’s hydraulics, wings controlled by E/H controls independently
  • Reversible & replaceable cutting edges comes standard for extra life and easy replacement
  • Floating frame link allows pusher/blade to automatically adjust to contours of the ground
  • Oversized cast iron skid shoes give max flotation and are quickly & easily adjustable
  • Hydraulic crossover relief protects pusher/blade, machine, and operator during use
  • 100% in-cab adjustment of blade & wings prevents constant in-and-out of cab for operator
  • Oversized operator step has aggressive tread for safe entry & exit during snowy conditions

Product Resources

Explore essential resources for your product, including a Detailed Parts Breakdown, comprehensive Owner’s Manual, and easy-to-access Warranty Claim Form. These tools are designed to help you get the most out of your purchase, offering quick and convenient support for maintenance, repairs, and warranty inquiries.

POPULAR QUESTIONS

Commonly Asked Questions

What is a skid steer hydraulic snow blade and how does it work?Prev

A skid steer hydraulic snow blade is an advanced snow removal attachment for skid steers and track loaders. Unlike traditional snow blades, this snow push blade for skid steer features hydraulically controlled wings at both ends of the blade. These adjustable wings allow you to direct snow to either side or pull both ends inward, turning the attachment into a snow pusher. When the wings are retracted, the hydraulic snow blade pusher function can be activated, providing greater versatility for clearing snow in various conditions. This combination of a blade and pusher offers enhanced control and efficiency during snow removal, allowing users to clear large areas quickly.

Do I need specialized controls to operate the skid steer hydraulic snow blade?Prev
Is the blade edge welded or replaceable?Prev
Can a skid steer hydraulic snow blade be adjusted for improved snow removal?Prev
What features should you consider when selecting a skid steer hydraulic snow blade?Prev
How can a hydraulic snowblade pusher combo be beneficial in demanding applications?Prev
