Skid Steer Soil Conditioner
Home » Skid Steer Attachments » Landscaping Attachments » Soil Conditioner
Click Here To Watch It In Action!
Soil Conditioner
Skid Pro’s Skid Steer Soil Conditioner is known for its unparalleled soil preparation capabilities. Equipped with a direct-drive hydraulic motor, 10 ¾″ rotor and full-length carbide teeth, this skid steer soil conditioner is engineered to break up clumps, smooth surfaces, and even out terrain effortlessly. The bidirectional motor and floating hitch make it easy to use on various landscapes. However, the heavy-duty frame ensures longevity in the most challenging conditions. With options like a wing kit and hydraulic angle adjustment, it’s adaptable for any soil preparation job.
Soil Conditioner
- Industry leading 10 ¾” rotor diameter
- Direct drive for max torque & performance
- No chain or sprockets to break down
- Heaviest-framed power rake in its class
- Full length carbide teeth (not just tipped)
- Floating hitch delivers higher productivity
- Industry leading 2 year warranty
Soil Conditioner
The Skid Pro Difference
Maximum Torque

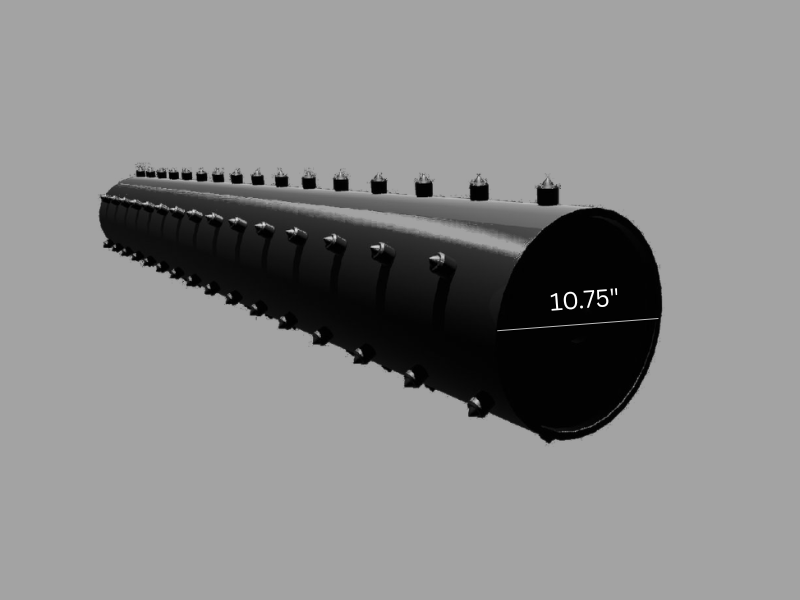

Industry leading 10 ¾” rotor for maximum torque & performance
Best In Class
Most powerful, highest torque soil conditioner in its class
XL Hardened Steel Pivot Pins
All pivot points are greaseable and secured by up to 2” diameter steel pivot pins
No Chain & Sprocket
Direct drive means no chain & sprocket for less issues & maintenance
HD Design & Build
Heavy design and build delivers performance, longevity and durability
Bidirectional Motor
Bidirectional motor gives operator four different operational settings
Highest Flotation Tires
Highest flotation tires in its class are 18 ½” tall and 8” wide
Traverses Uneven Terrain
Walking front axle traverses uneven terrain to deliver a level finish
Carbide Teeth
Full length carbide teeth for maximum longevity and wear life
2 Year Warranty
Industry leading 2 year warranty
Features
Industrial Design
- Ultra rugged frame consisting of 6 x 6 inch heavy wall square tubing
- Direct drive motor eliminates chain & sprocket and down time
- XL pivot pins (up to 2” diameter) & all pivot points are greaseable
- Greaseable bearings on both wheel spindles & wheel axles (not bushings)
- Hydraulic pressure relief valve protects drum and motor without chains
- HD axle beam utilizes 4” x 6” heavy-wall square tubing & 2” pivot pin
- HD walking tandem axle utilizes 3” x 3” heavy wall square tubing
- Engineered for the most extreme work conditions and ultra-long life
Operator Ease
- Rubber debris skirt on both sides of rotor to minimize debris discharge
- Floating hitch helps make automatic, on-the-go adjustments with ease
- Floating hitch can also be locked into rigid position for max versatility
- Hydraulic angle option allows on-the-go adjustment from driver’s seat
- Walking tandem wheels make it easier for operator to keep drum level
- Axle can be rotated 90 degrees up & locked for easy transport or storage
- 90 degree swing front axle allows rake to be used without the wheels
Options
- Wing kit option allows conditioner to carry higher volume of soil
- Wing kit option stores on the conditioner frame while not in use
- Hydraulic angle option allows full angle range from operator’s seat
Product Resources
Specifications
Model | 72” | 84” |
Rotor Width | 72” | 84” |
Overall Width | 80” | 92″ |
Angle | 30 degrees | |
Carbide Teeth | 80 qty | 100 qty |
Hydraulic Angle | Optional | Optional |
Working Width (Full Angle) | 64.2” | 74.8” |
Overall Depth | 80” | |
Required Hyd. Flow | 14-25 gpm | |
Wing Kit | Optional | |
Weight | 990 lbs. | 1,238 lbs. |
Optional High Flow? | Yes |
WHAT OUR CUSTOMERS SAY ABOUT OUR SOIL CONDITIONER
MT
Brad – The soil conditioner I purchased from you works like a dream. I leveled out the top soil on my yard area and brought it to a leveled finish with very little effort. I also worked over the gravel road leading to my home removing the larger rocks and giving the roadway a nice smooth graded finish. The hydraulic angle works great also. Thanks for building such a great piece of machinery! A very pleased customer,
PA
Just wanted to let you know this soil conditioner did an awesome job! These pictures are after we raked it off. It was so much easier than just using a bucket or land leveler, and even the homeowner was amazed at how flat it was when we finished. Thanks again!
Commonly Asked Questions
A soil conditioner attachment for skid steers is an essential equipment for preparing soil for seeding, sodding, or landscaping projects. This attachment uses a robust, direct-drive hydraulic motor to power a 10 ¾″ rotor equipped with durable carbide teeth. It efficiently breaks up soil clumps, mixes organic matter, and smooths surfaces. With adjustable angling for contouring and drainage, this versatile, high-performance soil conditioner is built to tackle various soil types and terrains, backed by a two-year warranty for reliability.
The skid loader soil conditioner features a robust bidirectional motor, offering unmatched power and precision. With dual-directional movement, it reaches tight spaces and enables wheel lifting for seamless conditioning near barriers and edges. This versatile motor optimizes performance, ensuring maximum soil coverage in challenging areas.
Our soil conditioner attachment features an innovative walking front axle, stabilizing the drum on uneven ground. Even on slopes, the drum remains parallel, enabling full, efficient passes and saving time. This design enhances productivity by maintaining consistent soil conditioning, regardless of terrain.
Yes, our skid steer soil conditioner is essentially the same as a Harley rake. This term is widely used in the industry, but there’s no difference in design or function. So, if someone refers to a skid loader Harley rake, they are simply describing a soil conditioner.
A soil conditioner, also commonly known as a skid steer power rake, is named for its powerful ability to sift and rake through soil.
The Skid Pro’s skid steer soil conditioner attachment stands out for its durability, powered by a direct-drive motor and sturdy carbide teeth. Its bidirectional motor and floating hitch provide flexibility for various soil conditions. It can easily break up clumps, level surfaces, and prepare soil for seeding, ensuring excellent soil quality. With its quick attach feature, this soil conditioner boosts efficiency. It reduces operator fatigue, making it a go-to for landscape preparation. Consider our skid steer soil conditioner for a durable, versatile, and efficient solution for soil management tasks.
Soil conditioner and mulch serve different purposes in landscaping. A soil conditioner, modifies soil structure, enhancing its physical properties like aeration and water retention. It’s perfect for preparing soil for planting or turfing. In contrast, mulch is a layer applied atop soil to conserve moisture, suppress weeds, and stabilize temperature. While both benefit plants, soil conditioners work directly within the soil, whereas mulch provides surface protection. For soil improvement with minimal maintenance, a quick-attached soil conditioner is an efficient choice for landscapers.
