| Weight | 420 – 525 Lbs |
|---|---|
| Fully extended length | 230" – 270" |
| Fully contracted length | 114" – 120" |
| Fully extended load rating | 298 – 403 Lbs |
| Fully contracted load rating | 763 Lbs |
| Fully contracted load rating @ 75 degrees | 1130 Lbs |
| Hydraulic cylinder stroke | 72” |

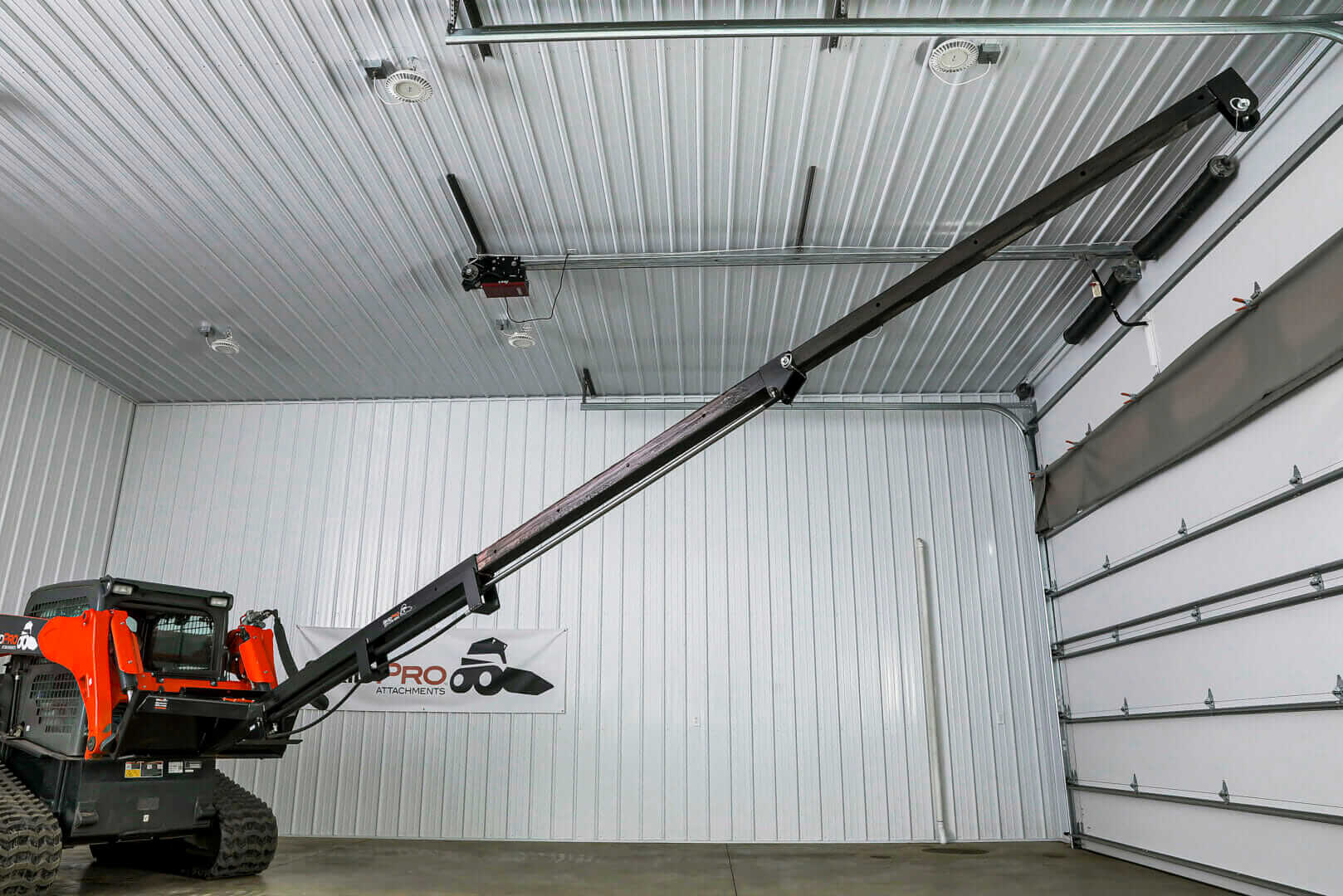

Longest Reach | Hydraulic 230″ | Safe & Efficient

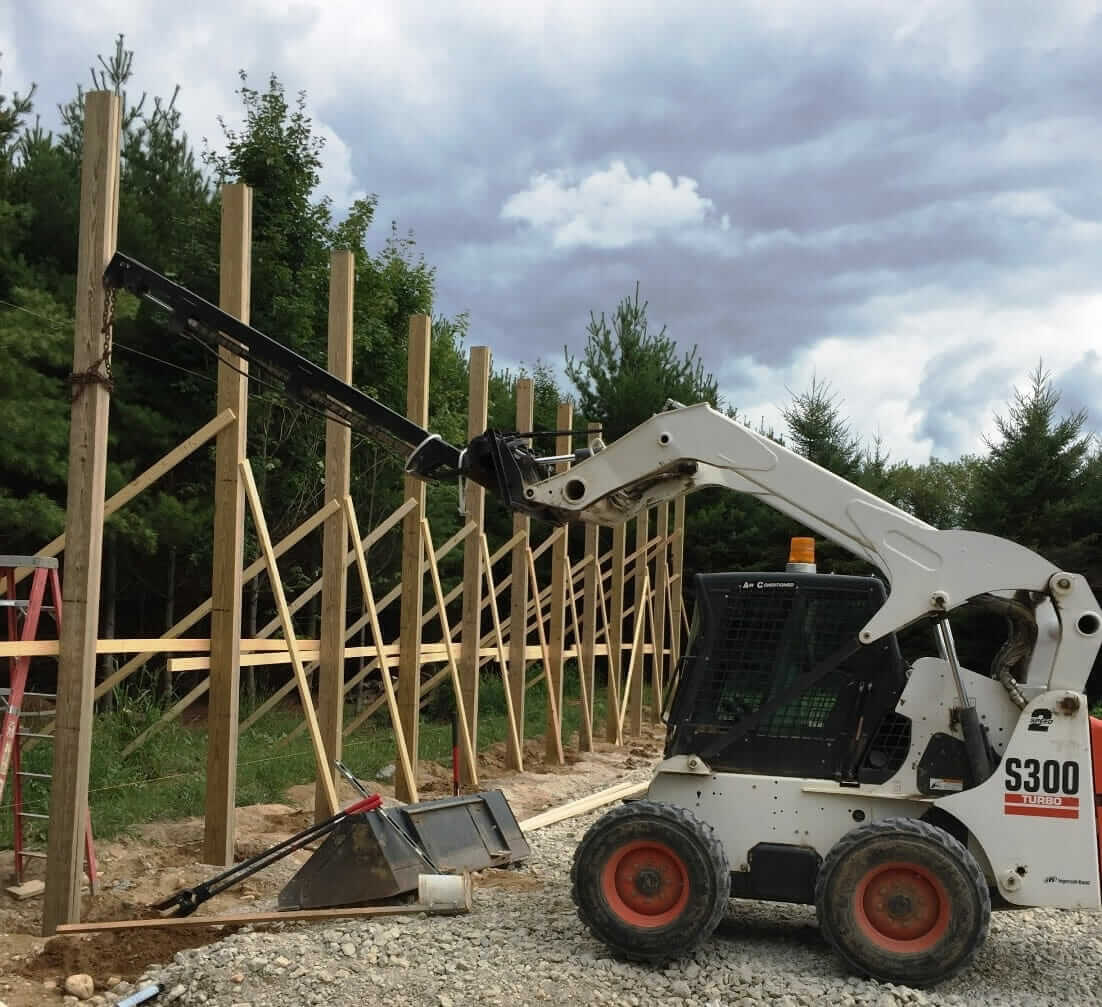

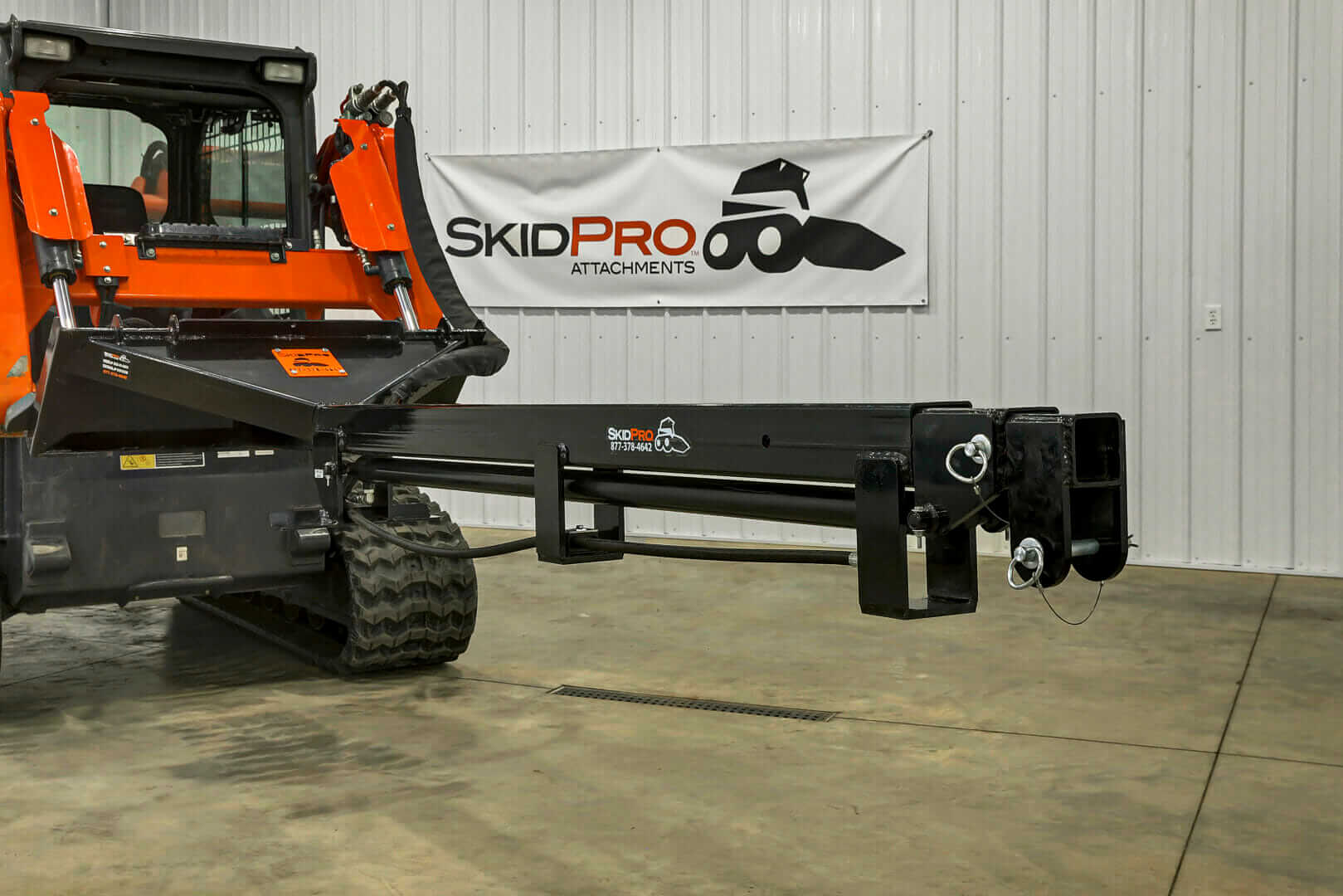

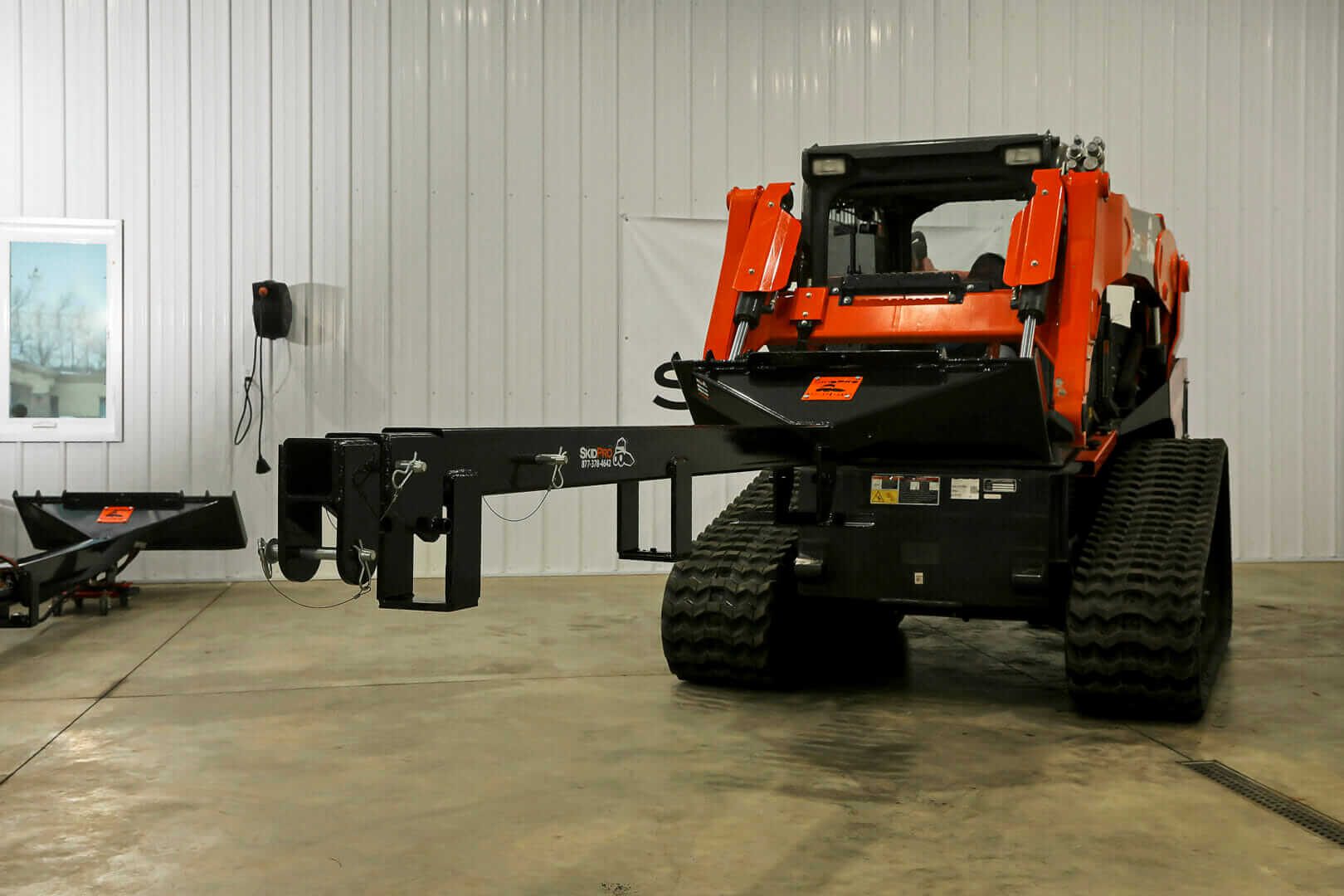

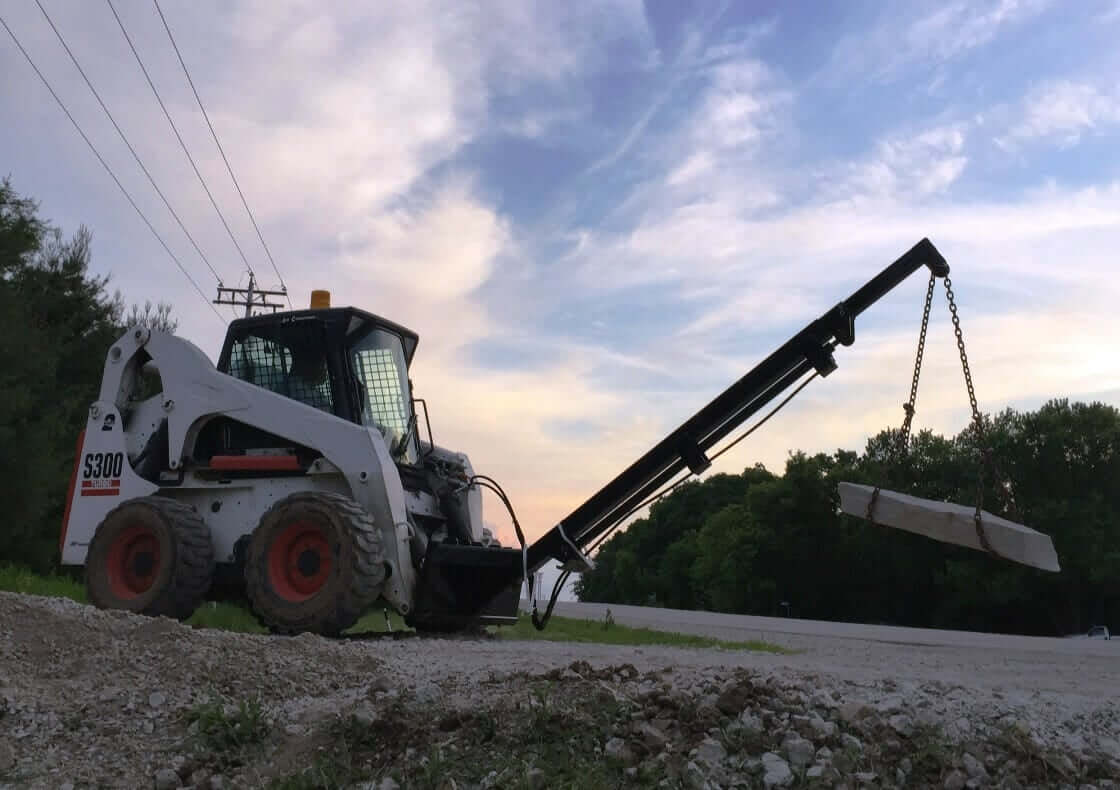

Skid Pro’s Skid Steer Telescopic Boom allows a unique boom attachment to gain reach and height on any job site, making it an invaluable tool for heavy lifting and material handling. With the longest reach skid boom in the industry, it offers up 230″ max hydraulic extension. This skid steer telescopic boom attachment is a huge time-saver, allowing you to access hard-to-reach areas without compromising safety. With its hydraulic extension, the skid steer telescopic boom attachment increases your efficiency, enhances jobsite safety, and maximizes your skid steer’s capabilities.
*Hydraulic boom 230” max extension.
| Weight | 525 |
| Width | 45.750” |
| Height | 18” |
| Fully extended length | 230.375” (19 ft 2 in) |
| Fully contracted length | 119.8” ( 9 ft 9 in) |
| Fully extended load rating | 403# |
| Fully contracted load rating | 763# |
| Fully contracted load rating @ 75 degrees | 1130# |
| Hydraulic cylinder stroke | 72” |
| Recommended Skid steer operating capacity | 1750# |
Explore essential resources for your product, including a Detailed Parts Breakdown, comprehensive Owner’s Manual, and easy-to-access Warranty Claim Form. These tools are designed to help you get the most out of your purchase, offering quick and convenient support for maintenance, repairs, and warranty inquiries.
POPULAR QUESTIONS
A skid steer boom or a skid steer telescopic boom is a large, heavy-duty pole that can extend out to 20 feet. Depending on the build, some booms can lift near 400 lbs. This tool is great for setting – building materials in hard-to-reach places and tall portions on buildings such as rafters. This can also be used to hold up vertical studs and other materials.
Hydraulic Boom Parts
