Skid Steer Pallet Forks

Additional information

Tine Length 48 "
Tine Size 1 1/2 " x 4 "
Weight 4,000 lbs
Lift Capacity 7,500 lbs

Pallet Forks

48” Tines | 7,500 lbs Capacity | HD Frame | Adjustable Forks | Walk-Through

Skid Pro’s skid steer pallet forks are essential attachments designed for efficient material handling across industries. These pallet fork attachments feature adjustable tines that slide on a heavy-duty rail, locking securely into eight positions to accommodate diverse load sizes. The tines are both removable and replaceable, ensuring longevity and adaptability. With a robust main frame and reinforced brick guards, these skid loader pallet forks offer enhanced durability and operator safety. Standard models come with 48-inch tines, with options for 60-inch and 96-inch lengths to suit specific operational needs. Versatility ensured by these skid loader pallet forks are ideal for tasks ranging from construction to agriculture, providing reliable performance in demanding environments.

2 Year Warranty

Protection Plan Options

1 Years Extended Protection Plan
2 Years Extended Protection Plan

Pallet Forks

  • Walk through frame for easy entrance and exit
  • HD main frame and extra gussets give incredible durability
  • Forged HD fork tines are rated at 4,000 lbs. lift capacity 24” from base of tines
  • Adjustable tines slide on HD rail and lock-in
  • 48″ tines standard on all units
  • 48”, 60″ & 96” tine lengths available, wide rail forks available

The Skid Pro Difference

Skid Steer Pallet Forks

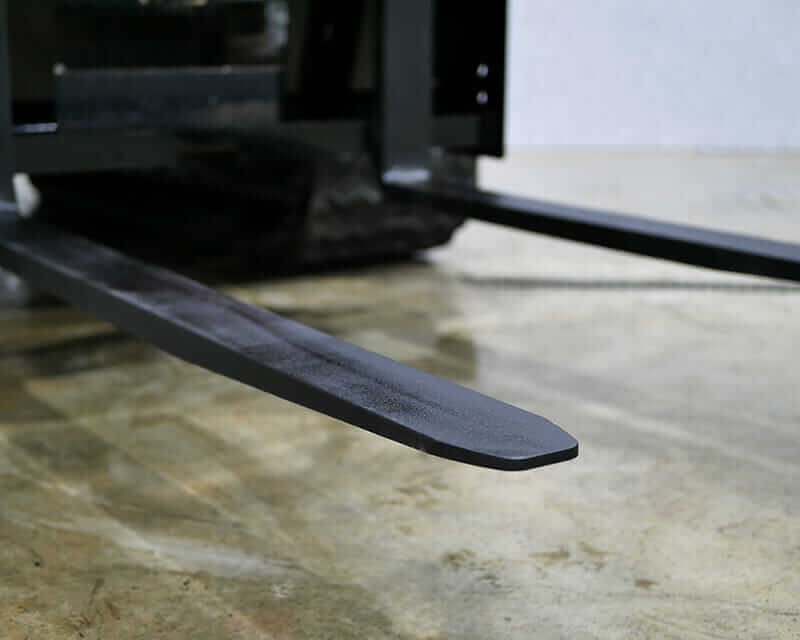

Heavy Duty Forged Tines

Heavy Duty Forged Tines

Extra HD 1 1/2" x 4" forged solid tines, 4,000 lbs. rated lift capacity 24" from base of tine (over 7,500 lbs. failure rate)

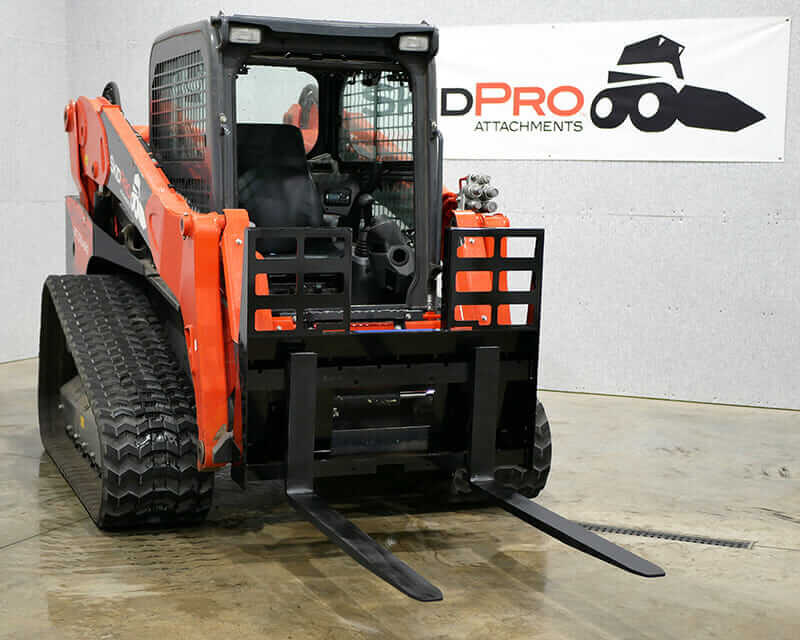

pallet-forks-on-skid-steer
Heavy Duty Frame

Heavy Duty Frame

HD frame with XL side and brick guard gussets for maximum strength and durability make it one of heaviest in industry

Skid Steer Pallet Forks
Comfortable Exit & Entry

Comfortable Exit & Entry

Unique walk through design allows easy & comfortable exit and entry from operator’s seat, while increasing operator safety

guards-on-pallet-forks
Reinforced Brick Guard

Reinforced Brick Guard

Tall, reinforced brick guard protects operator and helps secure load, while still allowing great visibility of fork tine tips

Skid Steer Pallet Forks
Heavy Duty Forged Tines

Heavy Duty Forged Tines

Extra HD 1 1/2" x 4" forged solid tines, 4,000 lbs. rated lift capacity 24" from base of tine (over 7,500 lbs. failure rate)

pallet-forks-on-skid-steer
Heavy Duty Frame

Heavy Duty Frame

HD frame with XL side and brick guard gussets for maximum strength and durability make it one of heaviest in industry

Skid Steer Pallet Forks
Comfortable Exit & Entry

Comfortable Exit & Entry

Unique walk through design allows easy & comfortable exit and entry from operator’s seat, while increasing operator safety

guards-on-pallet-forks
Reinforced Brick Guard

Reinforced Brick Guard

Tall, reinforced brick guard protects operator and helps secure load, while still allowing great visibility of fork tine tips

Features

Industrial Design

  • Gloss black powder coat finish for superior durability and look

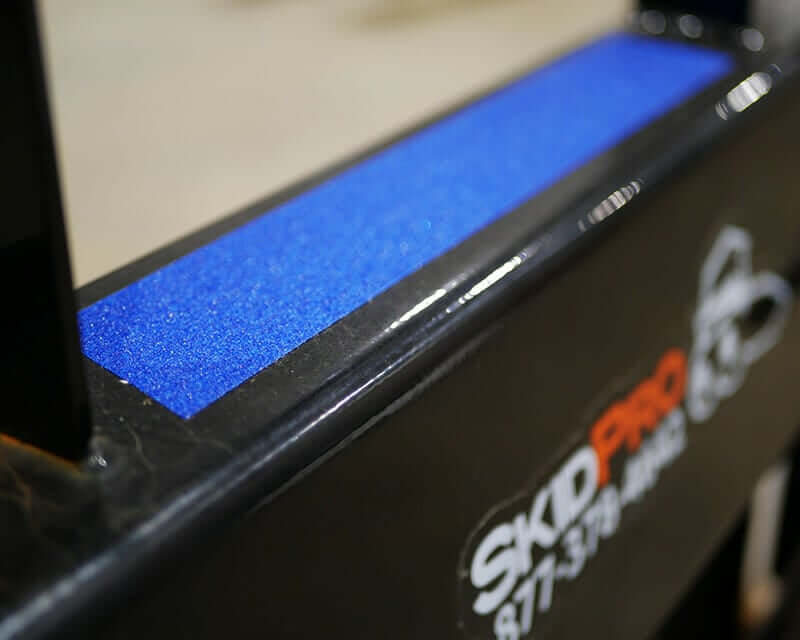

Operator Ease

  • Walk through brick guard enhances operator safety and ergonomics allowing easy exit and entry to cab
  • Walk through design enhances tine tip visibility for operator, while maintaining protective brick guard

Options

  • 48″ tine length is standard, 60″ and 96” length tines are available
  • Hydraulically adjustable tine pallet forks available (adjust tine width from cab via machine’s hydraulics)

Product Resources

Explore essential resources for your product, including a Detailed Parts Breakdown, comprehensive Owner’s Manual, and easy-to-access Warranty Claim Form. These tools are designed to help you get the most out of your purchase, offering quick and convenient support for maintenance, repairs, and warranty inquiries.

Family of Forks Video

POPULAR QUESTIONS

Commonly Asked Questions

How do I choose the right pallet forks for my skid steer?Prev

Choosing the right pallet forks for your skid steer ensures maximum efficiency and safety in industrial operations. The right fork depends on the specific needs of your worksite, material weight, and skid steer capacity. Below are the key factors to consider:

  • Load Capacity: Match the fork’s capacity to your heaviest loads.
  • Tine Length: Choose the appropriate length for your material size.
  • Frame Design: Opt for a robust frame for demanding applications.
  • Adjustability: Ensure the forks can adapt to varied material widths.
What is the key distinction between fixed and floating pallet forks?Prev
What is the load-bearing capacity of skid steer pallet forks?Prev
What is the recommended length for pallet forks?Prev
Are skid steer pallet fork attachments adjustable?Prev
What are the key applications of skid steer pallet forks across industries?Prev
