Mini Skid Steer Tiller

Additional information

Tiller

Mini Tiller

Skid Pro’s Mini Skid Steer Tiller attachment is a powerful landscaping tool designed to simplify soil preparation tasks. Featuring a robust construction with 30 replaceable steel tines, this mini skid steer tiller efficiently tenderizes soil and uniformly smoothens compacted ground, creating optimal seedbed conditions. Its 48-inch tilling width reduces the number of passes needed, boosting productivity. This tiller attachment is equipped with a powerful direct-drive motor that delivers maximum torque for thorough soil cultivation. It also comes with a hinged front shroud for convenient maintenance access, a motor protection plate, and a massive 3-inch tiller bearing for enhanced reliability and durability.

2 Year Warranty

Protection Plan Options

1 Years Extended Protection Plan
2 Years Extended Protection Plan

Mini Tiller

  • 30 replaceable steel tines tenderize soil
  • 48″ tilling width keeps passes to a minimum
  • Powerful direct drive motor for max torque
  • Hinged front shroud for easy access
  • Motor protection plate for longevity

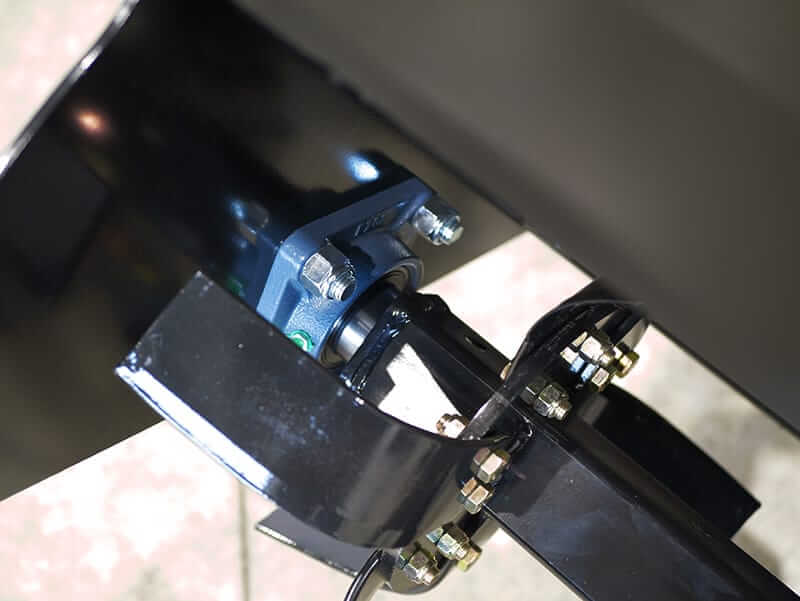

  • Massive 3″ tiller bearing

The Skid Pro Difference

Mini Tiller

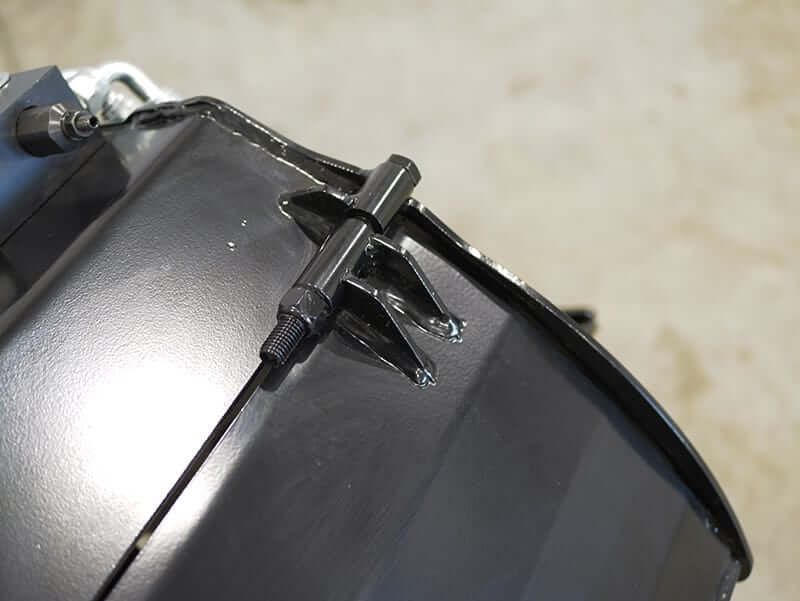

Hinged Shroud Design

Hinged Shroud Design

The hinged shroud allows you to access your teeth easily and makes tine replacing a breeze.

Mini Tiller
Hardened Steel Tines

Hardened Steel Tines

This mini skid tiller boasts hardened steel tines and can reach up to 6" below ground.

Mini Tiller

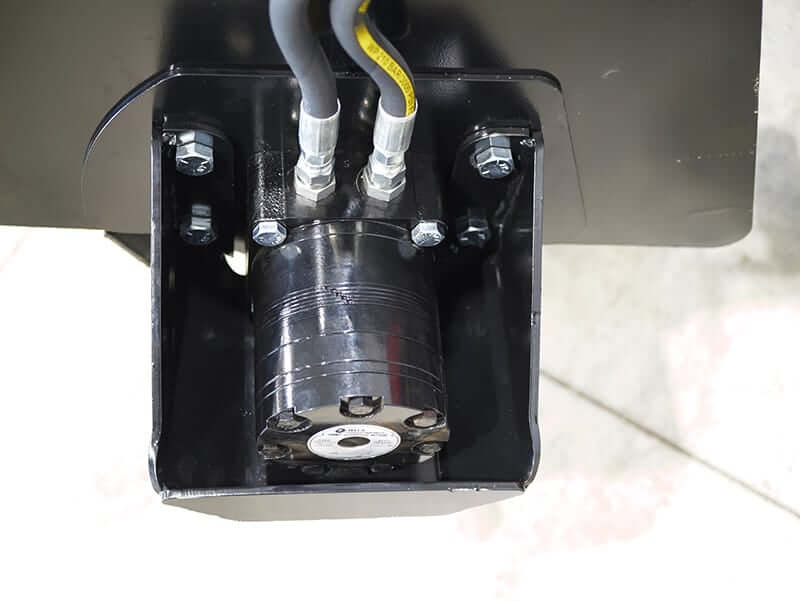

Protected Direct Drive

Protected Direct Drive

This unit is powered by a direct drive motor with a protection plate, giving you power and protecting your tiller.

Mini Tiller
Heavily Gusseted Frame

Heavily Gusseted Frame

The frame is heavily gusseted and engineered to take ground engagement.

Mini Tiller
Hinged Shroud Design

Hinged Shroud Design

The hinged shroud allows you to access your teeth easily and makes tine replacing a breeze.

Mini Tiller
Hardened Steel Tines

Hardened Steel Tines

This mini skid tiller boasts hardened steel tines and can reach up to 6" below ground.

Mini Tiller
Protected Direct Drive

Protected Direct Drive

This unit is powered by a direct drive motor with a protection plate, giving you power and protecting your tiller.

Mini Tiller
Heavily Gusseted Frame

Heavily Gusseted Frame

The frame is heavily gusseted and engineered to take ground engagement.

Specifications

Flow Requirements 12-22 GPM
Tilling Depth 6″
Frame Thickness 3/16″
Shaft Thickness 2 1/2″
Weight 420 lbs

Features

Industrial Design

  • Impressive 3/16″ thick main frame
  • Heavily gusseted hood and frame
  • 1/4″ thick tines can take on any soil
  • Direct drive motor gives excess power
  • Motor protection plate keeps your machine running
  • Over 2″ thick main driving shaft

Manual and Parts

Explore essential resources for your product, including a Detailed Parts Breakdown, comprehensive Owner’s Manual, and easy-to-access Warranty Claim Form. These tools are designed to help you get the most out of your purchase, offering quick and convenient support for maintenance, repairs, and warranty inquiries.

POPULAR QUESTIONS

Commonly Asked Questions

What is a mini skid steer tiller used for?Prev

Our skid steer tiller is a powerful tool that evens out soil and prepares it for plantations, farming, and other uses.  It tenderizes the soil and, due to its 48″ tilling width, can cover a large portion in a single pass.

What is the maximum digging depth of a mini skid steer tiller?Prev
Can a mini skid steer tiller handle hard or compacted soil?Prev
Do mini skid steer tillers fit all mini skid steer models?Prev
How do I adjust the tilling depth on my mini skid steer tiller?Prev
Do I need to make multiple passes when tilling dense or heavy soil?Prev
What factors should I consider when choosing a mini skid steer tiller attachment?Prev
